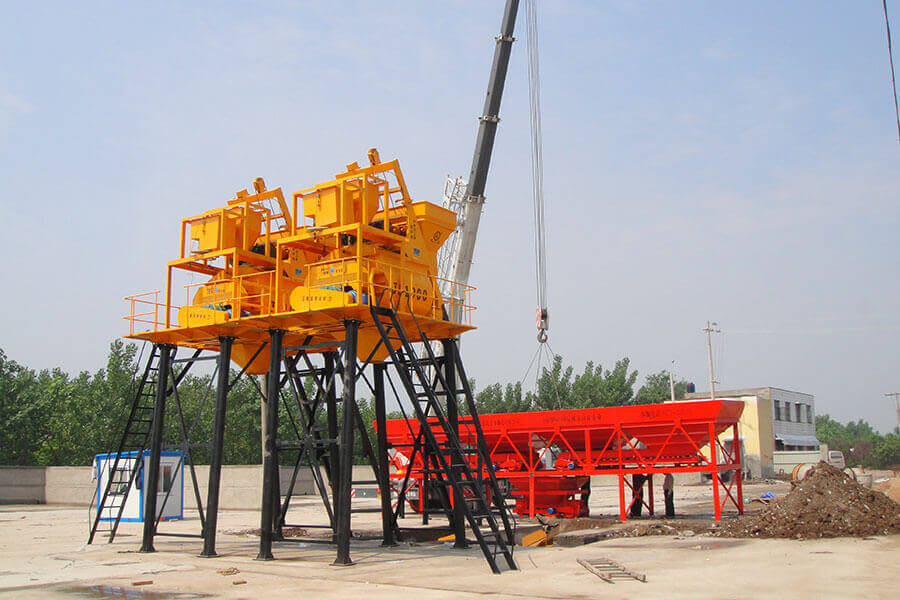

Composition of Mobile Twin-Shaft Concrete Mixer

Mobile twin-shaft concrete mixer is an efficient and flexible concrete mixing equipment, which is widely used in engineering fields such as construction, roads, bridges, etc. Its structural design is designed to achieve fast and uniform concrete mixing, while ensuring the portability and easy operation of the equipment. The following is a detailed introduction to the structure of mobile twin-shaft concrete mixer.

Main structure

The main structure of a mobile twin-shaft concrete mixer is typically made of high-strength steel to ensure durability and stability. The main structure includes the mixing drum, mixing shaft, support frame, and travel system. Wear-resistant lining is often installed inside the mixing drum to reduce wear and extend the service life of the equipment.

Mixing system

The mixing system is the core component of a mobile twin-shaft concrete mixer. It consists of two parallel horizontal mixing shafts. Multiple mixing blades are mounted on the shafts to ensure that the concrete mixture is thoroughly agitated during mixing. The shafts typically rotate in opposite directions to produce a strong shearing and stirring action, thereby improving mixing efficiency.

Drive system

The drive system typically consists of an electric motor and a speed reducer. The motor provides power, which is then transmitted to the agitator shaft via the speed reducer. The precision design of the drive system ensures stable operation under various operating conditions.

Control system

Modern mobile twin-shaft concrete mixers are equipped with advanced control systems for automated operation. These control systems typically consist of an operator panel, sensors, and a controller. The operator panel is used to set mixing parameters and monitor equipment status. Sensors monitor various parameters during the mixing process, such as temperature, humidity, and mixing speed, in real time. Based on sensor feedback, the controller automatically adjusts mixing parameters to ensure concrete quality.

Travel system

In order to improve the mobility of the equipment, mobile twin-shaft concrete mixers are usually equipped with a travel system. The travel system can be designed as a wheeled or crawler type, and the specific choice depends on the use environment and equipment requirements. The travel system enables the mixer to move freely on the construction site, thereby improving construction efficiency.

Auxiliary system

The auxiliary system includes the feeding system, discharging system and cleaning system. The feeding system is used to transport raw materials into the mixing drum, the discharging system is used to discharge the mixed concrete, and the cleaning system is used to clean and maintain the equipment.

The above is the composition of the mobile twin-shaft concrete mixer produced by Henan Hengyuan

Mobile twin-shaft concrete mixers play an important role in modern construction with their efficient mixing capacity, flexible mobility and advanced control systems. Their structural design fully considers the construction needs and environmental challenges, ensuring the efficient operation and long life of the equipment. With the continuous advancement of technology, mobile twin-shaft concrete mixers will continue to develop and provide more efficient and reliable solutions for the construction industry.
