Concrete Mixing Pump With Batching Machine

A concrete mixer pump with a batching machine is a construction machine that integrates mixing, conveying, and batching functions. It not only efficiently mixes concrete but also automatically feeds the required ingredients into the mixing tank according to the set ratio, reducing manual labor and improving work efficiency.

Capacity: 40 m³/h

Diesel engine power: 45/82/129 kw

Scope of application: Construction projects, roads, bridges, tunnels, infrastructure and other projects.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

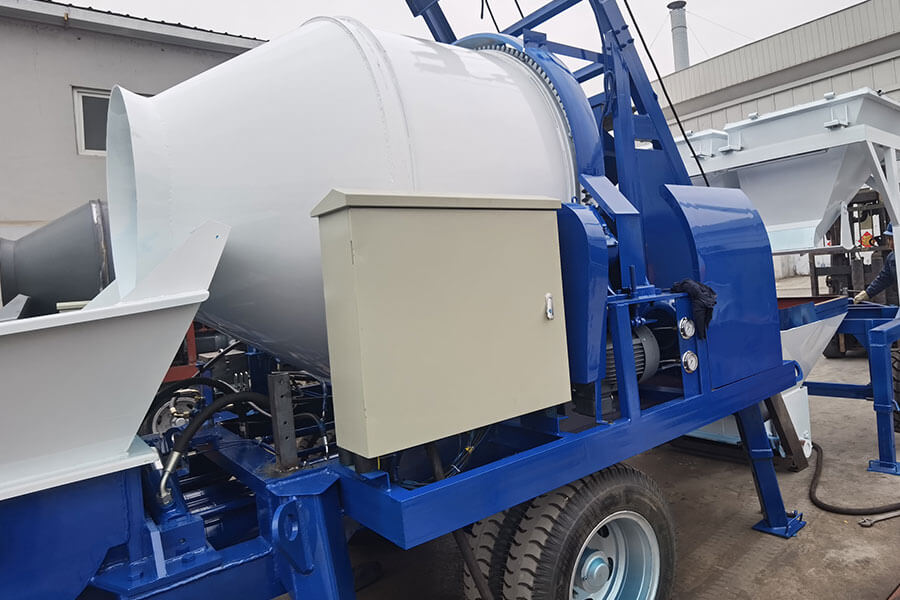

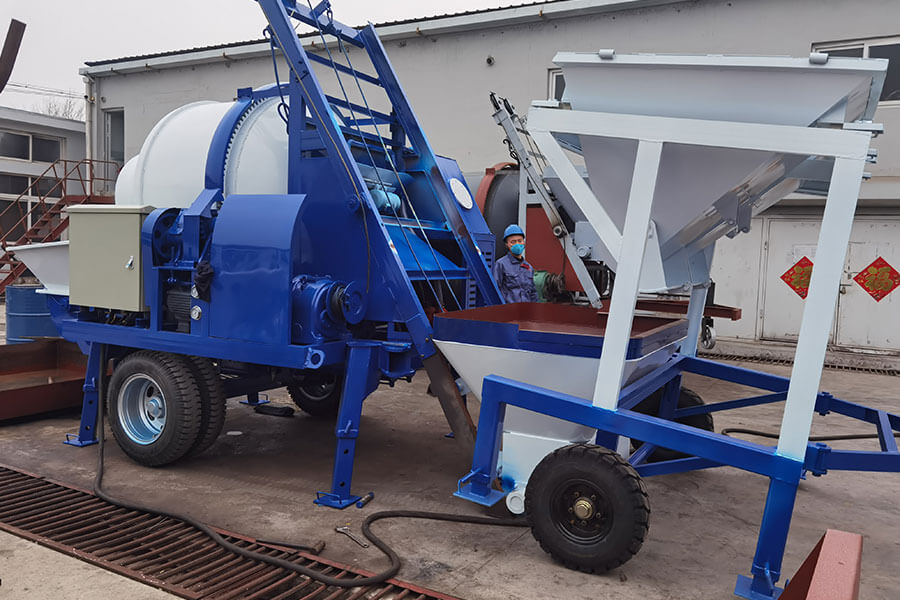

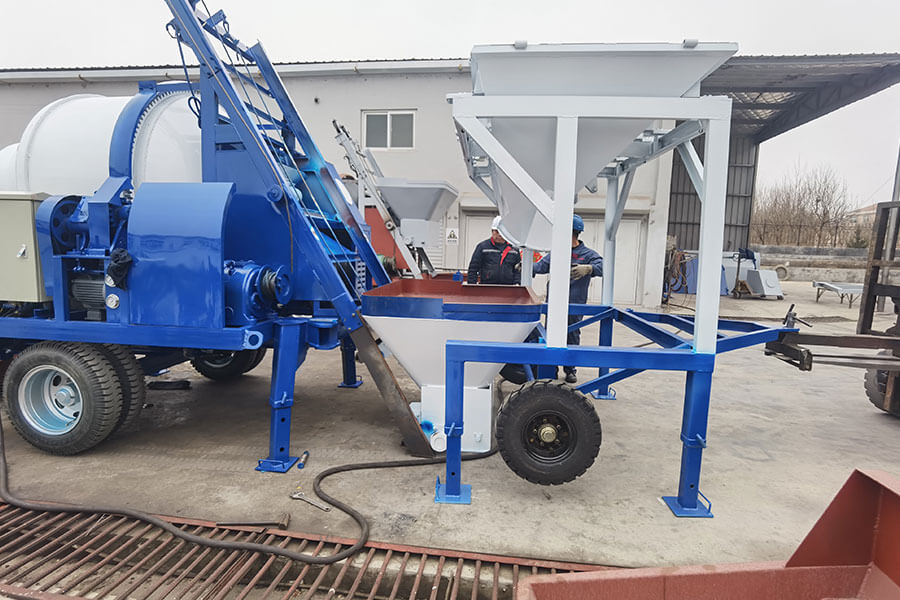

Concrete mixing pump with batching machine is a concrete mixing and pumping equipment that combines a batching machine with a concrete mixer and a trailer pump. It can meet the different production needs of customers and is a small all-round equipment.

Other types

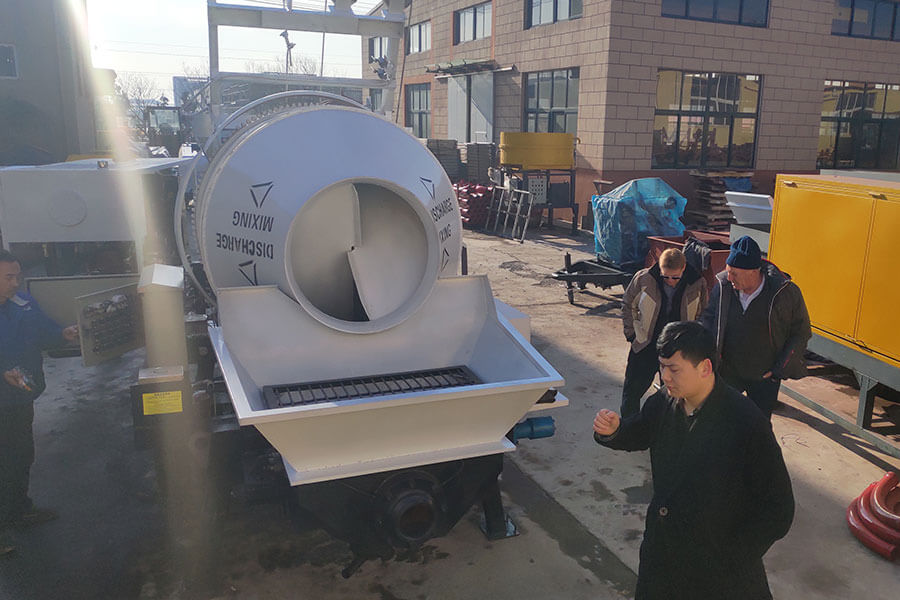

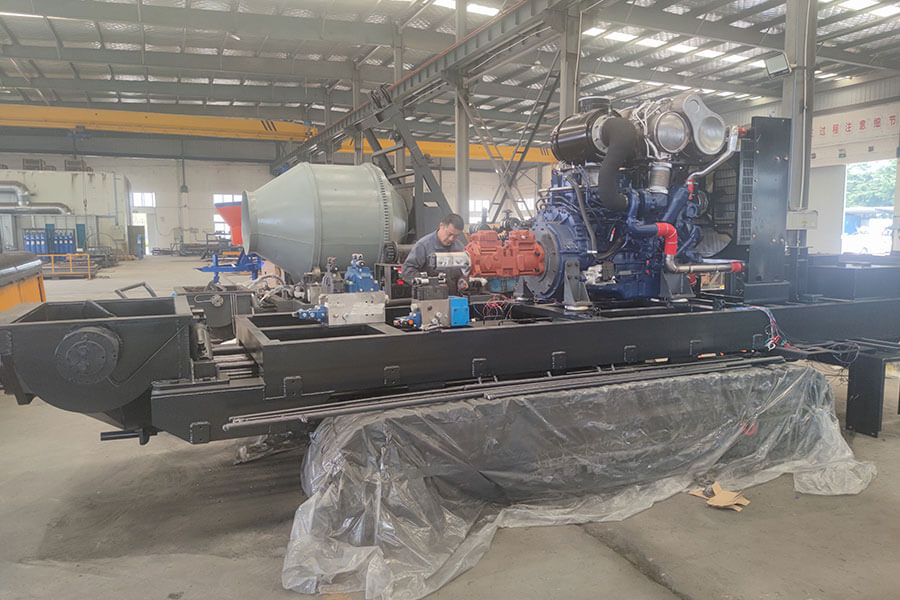

twin shaft Concrete Mixer Pump

get quote

Pan Concrete Mixer Pump

get quote

Product Structure

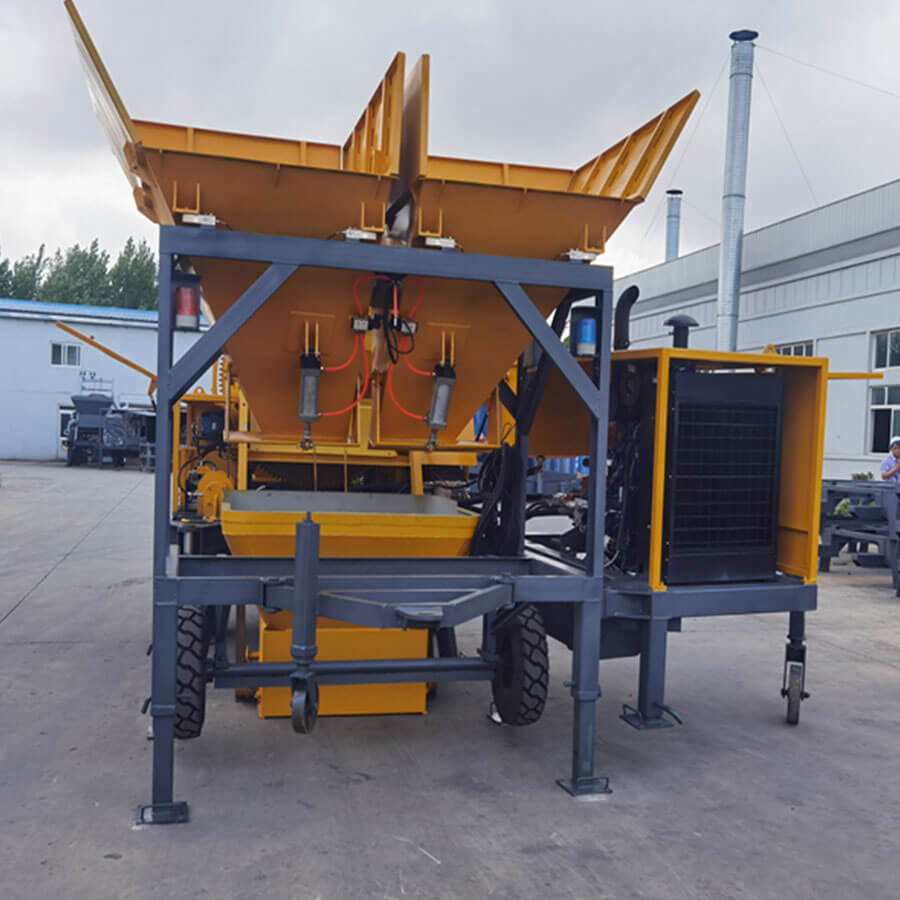

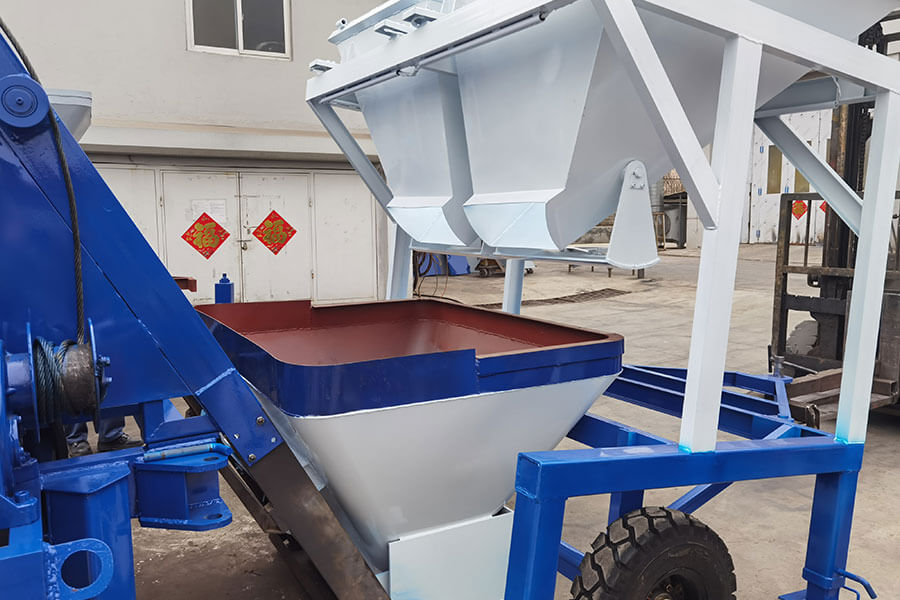

The concrete mixing pump with batching machine is mainly composed of batching system, water adding system, mixer, mixing drive device, concrete pumping system, control system, chassis and drive.

Working Principle

Raw materials such as gravel and cement are fed from the silo into the mixing drum according to the set ratio through a metering device. The water system simultaneously adds the required amount of water. The agitator shaft within the drum drives the blades to rotate, evenly mixing the gravel, cement, and water to form concrete that meets the requirements. The evenly mixed concrete enters the pumping system, where the hydraulic pump generates pressure, pushing the piston to deliver the concrete through the delivery pipeline to the construction site.

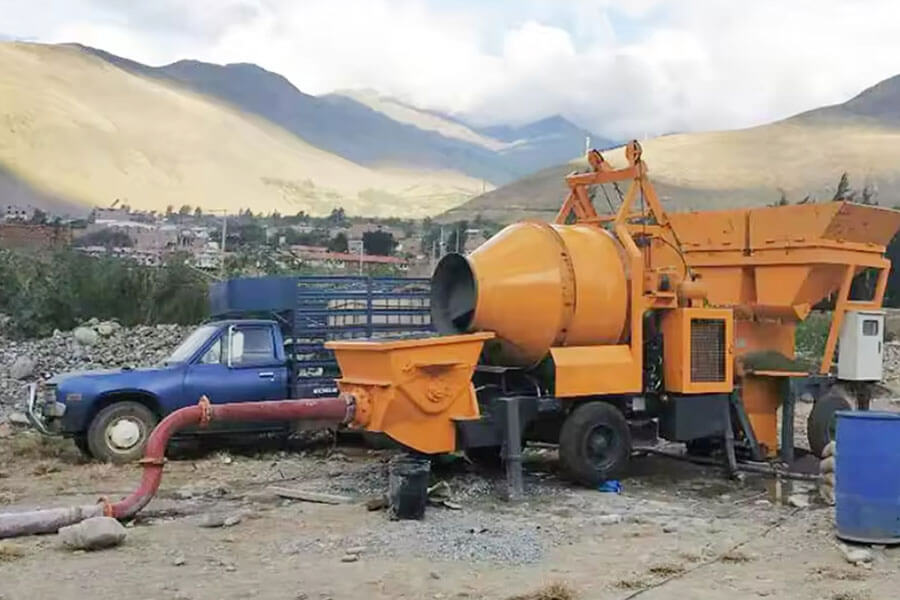

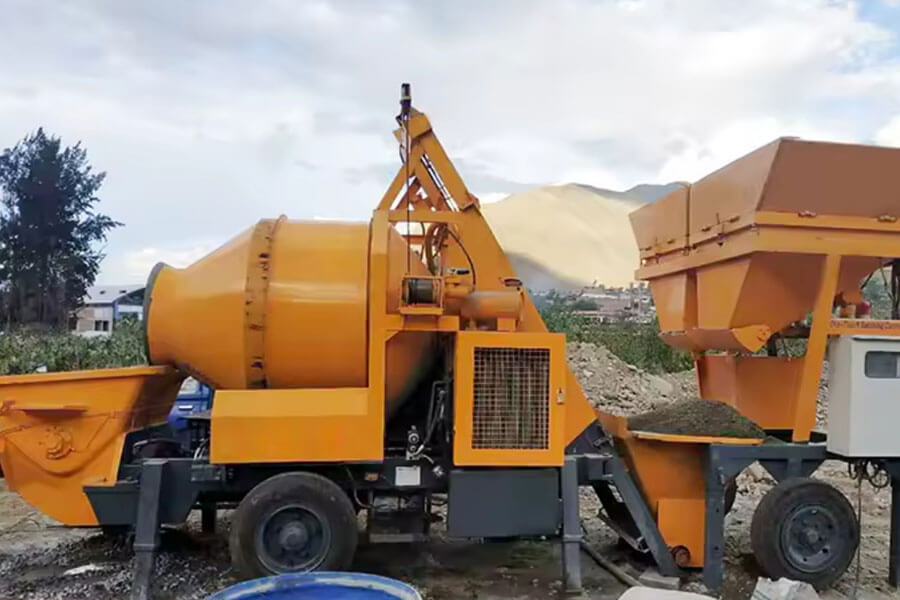

More on-site cases

Kazakhstan concrete batching plant

Kazakhstan concrete batching plant

Kazakhstan concrete batching plant

Product Parameters

Model		Pump with twin shaft mixer
Concrete pump	Theoretical capacity(m³/h)	40
	Max. concrete pumping pressure(Mpa)	10
	Power type	Motor
	Motor/engine(kw)	45/82/129
	Main oil pump	Kawasaki
	Main oil pump capacity(ml/min)	112
	Theoretical delivery distance(m)	160/500
	Hopper capacity(L)	550
	Max. aggregate diameter(mm)	30/40

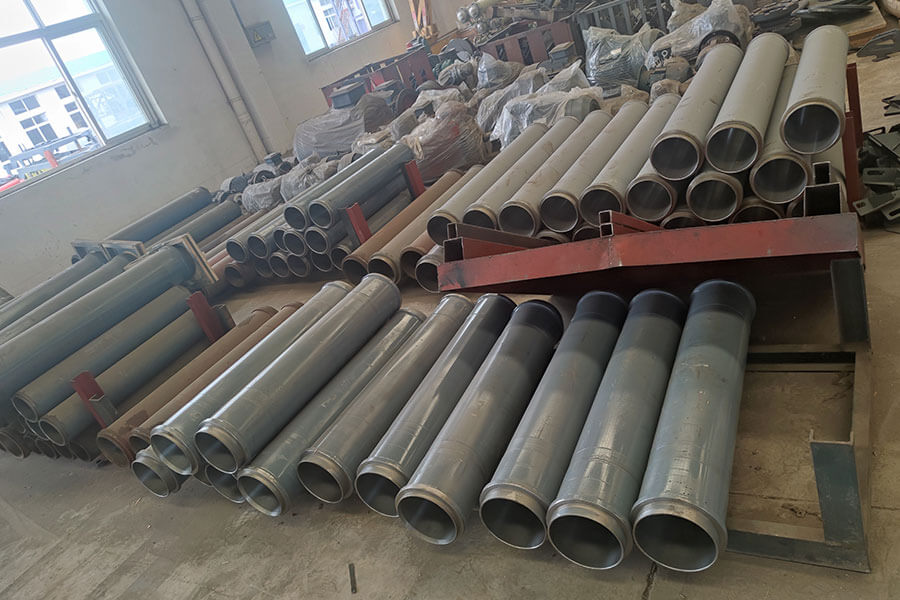

	Inside diameter of delivery pipe(mm)	Φ150
	Loading capacity of the mixer(L)	720
	Unloading capacity of the mixer(L)	450
	Mixing motor(kw)	5.5
	Hoisting motor(kw)	4.5
	Dimension(LxWxH)(mm)	4800x2200x2800
	Total weight(kg)	5500
Concrete mixer	Mixer	JZC450
	Capacity(m³/h)	15
	Mixer type	Drum mixer

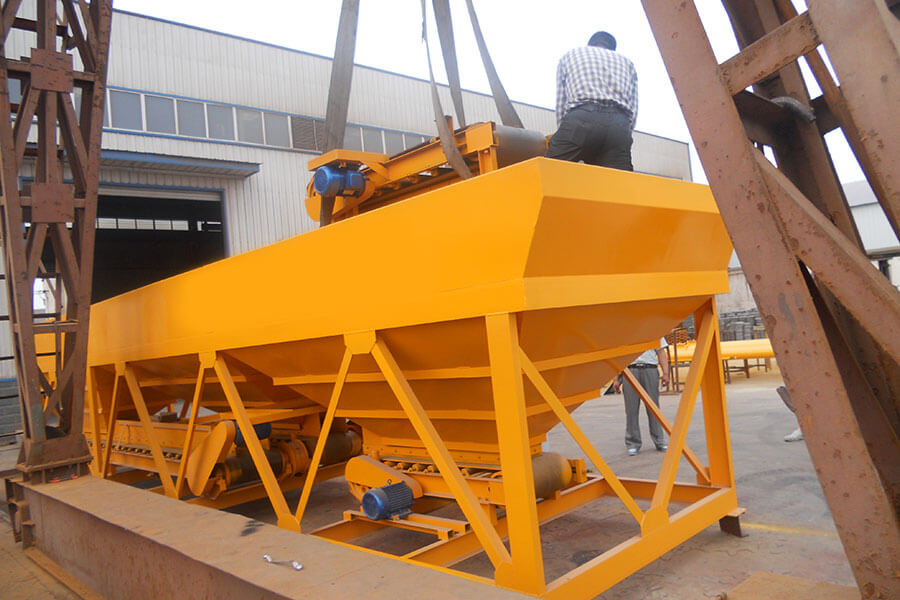

Batching machine	Model	PLD700-2

Product Advantages

1.Integrated Design
This equipment combines concrete mixing, pumping, and batching functions into one unit, enabling batching and pumping directly on the construction site, reducing on-site labor requirements.

2.Precise Batching
Batching machines are typically equipped with electronic metering systems that precisely control the proportions of various raw materials, such as cement, sand, and gravel, ensuring that concrete quality meets construction requirements.

3.Efficient Mixing
Concrete mixer pumps with batching machines utilize a forced mixing method, enabling rapid and uniform mixing of concrete, preventing stratification or uneven distribution of materials and improving work efficiency.

4.High Conveying Capacity
This equipment boasts a high concrete pumping capacity and is suitable for large-scale projects such as multi-story buildings and bridges, enabling concrete to be delivered to locations at varying heights or distances.

5.Automated Operation
The batching machine and mixer pump feature a high degree of automation, making operation simple and reducing the risk of human error.

6.Time and Cost Savings
Concrete mixer pumps with batching machines can reduce transportation and manual batching time, significantly improving construction efficiency while also lowering labor costs.

concrete mixing pump with baching machine Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and sophisticated equipment, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its establishment. The company’s concrete mixer pumps are widely used in various construction projects, significantly improving the quality and efficiency of concrete construction.

Hengyuan concrete mixer pump with batching machine price

The following prices are for reference only. Specific prices will vary depending on your desired configuration. We can customize any type of concrete mixer pump to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.

Types	Price range
JBS Motor powered concrete mixing pump	$20,000-$40,000
JBTS Diesel powered concrete mixing pump	$25,000-$40,000
Twin shaft concrete mixing pump	$20,000-$40,000
Pan concrete mixing pump	$23,000-$45,000
Concrete mixing pump with batching machine	$25,000-$50,000

Concrete mixing and pumping solutions

Concrete mixer pumps with batching machines use an automated process of batching, mixing, and pumping to precisely mix raw materials and efficiently deliver them to the construction site. Their core advantages are labor savings, improved efficiency, and guaranteed concrete quality. They are particularly suitable for medium- and large-scale construction projects and those requiring continuous work, such as high-rise buildings, airport construction, and large-scale infrastructure projects.
