Diesel Engine Driven Concrete Mixer Pump

Diesel engine powered concrete mixing pump, professional concrete mixing pump manufacturer - Henan Hengyuan

A diesel engine driven concrete mixer pump is a concrete mixer pump that uses a diesel engine as its power source. It combines the functions of concrete mixing and pumping, and can complete the mixing, transportation and pouring of concrete in places without a stable power supply.

Capacity: 30-40 m³/h

Diesel engine power: 82 kw

Scope of application: Concrete mixing and pumping at various construction sites such as construction sites, bridges, roads, mines, etc.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

JBTS diesel-powered concrete mixer pump is a new type of equipment that integrates the functions of a concrete mixer truck and a concrete trailer pump. It is mainly driven by diesel power and is suitable for environments with limited or no electricity supply. It can meet the needs of various construction projects.

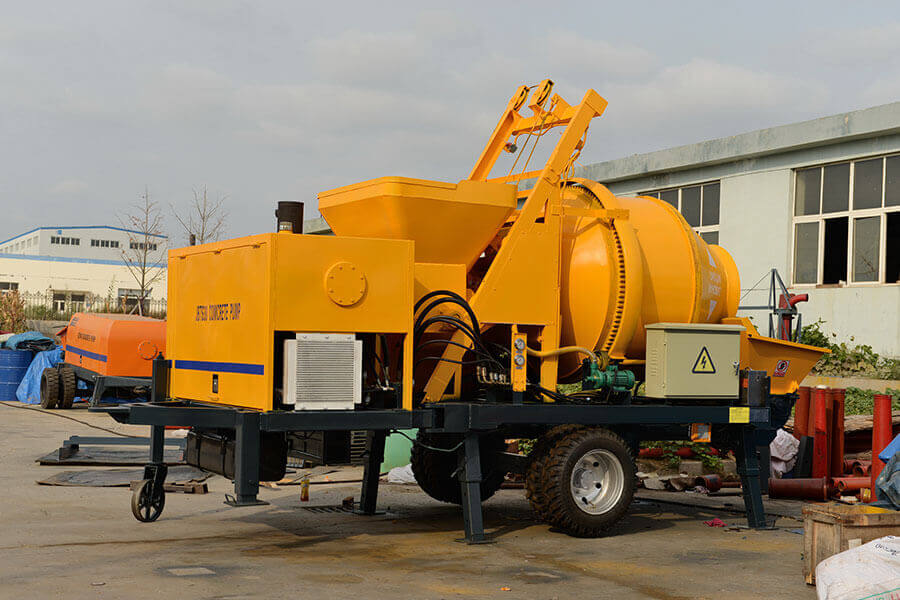

JBTS-30 concrete mixer pump

get quote

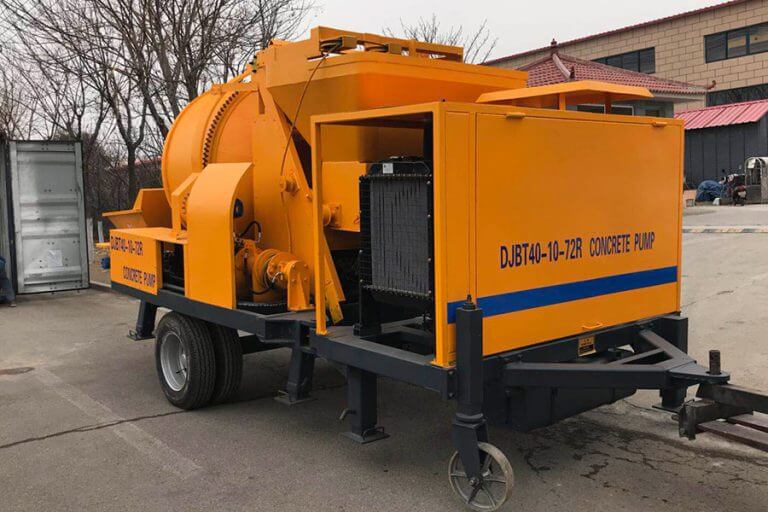

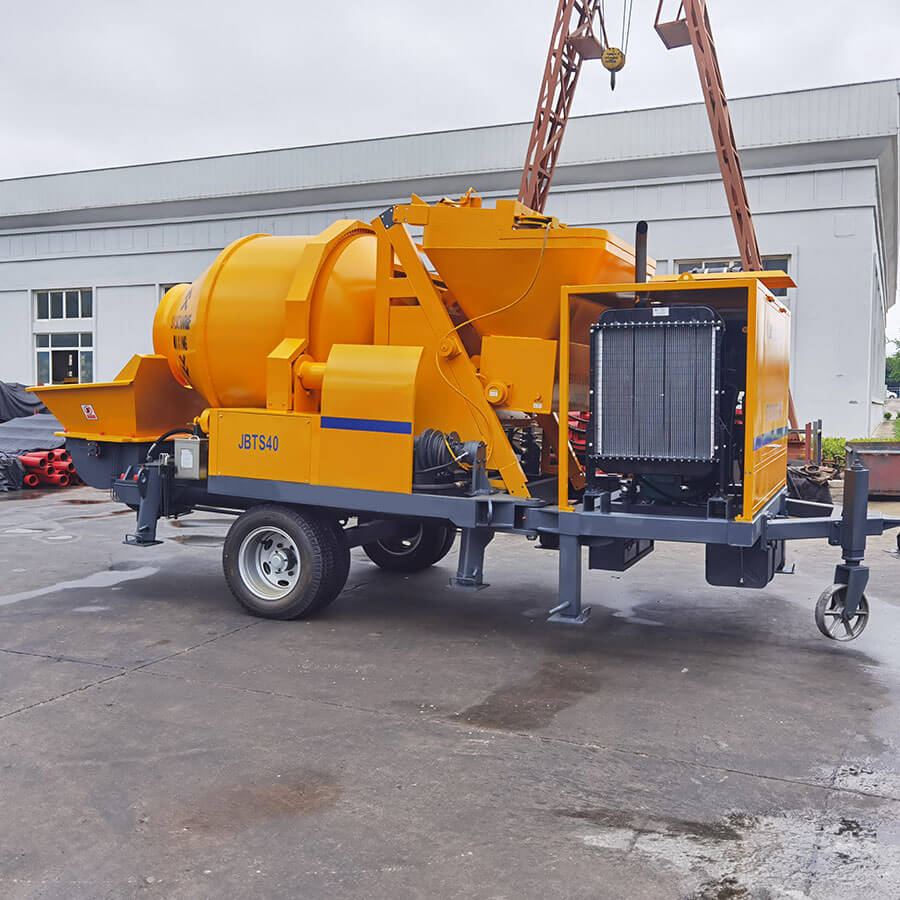

JBTS-40 concrete mixer pump

get quote

Product Structure

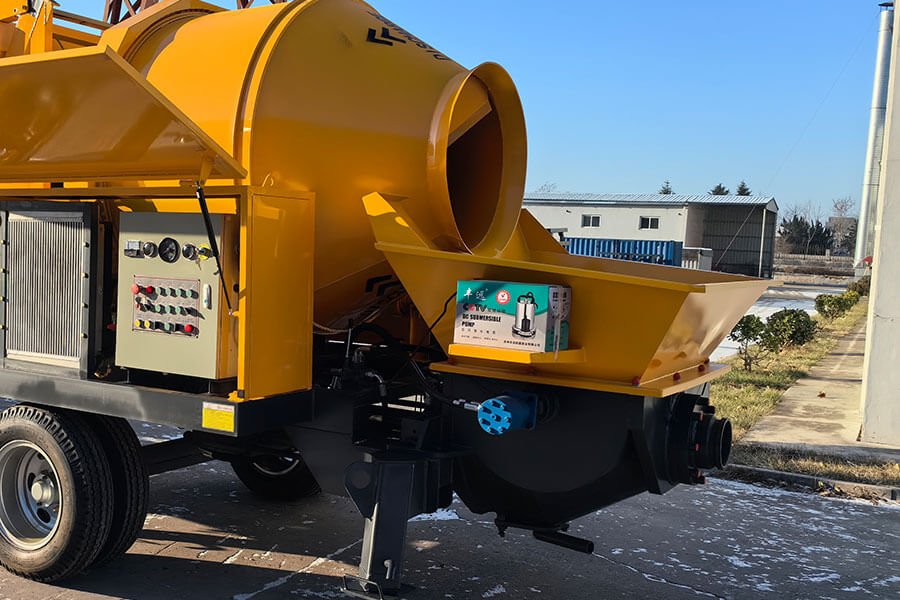

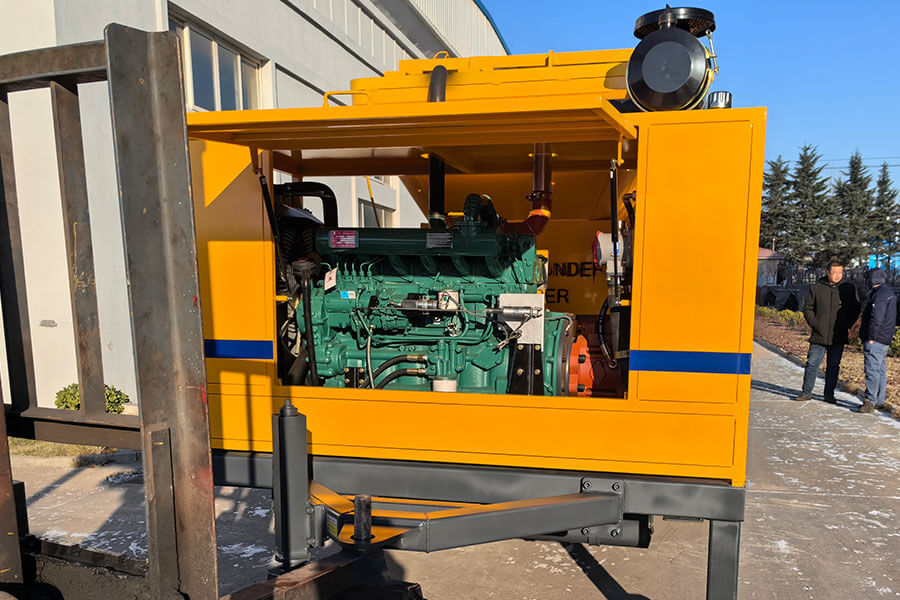

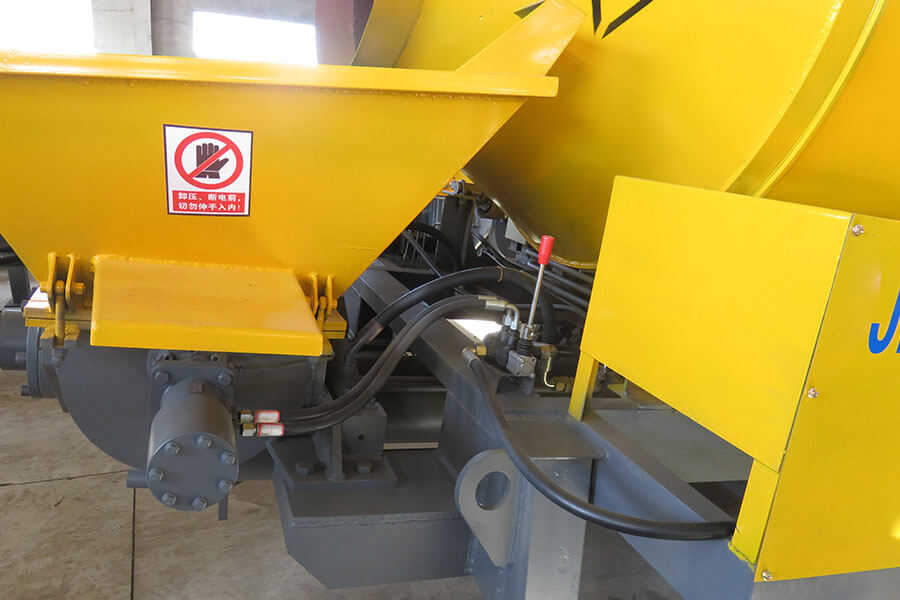

JBTS diesel concrete mixer pump is a new type of equipment that integrates the functions of a concrete mixer truck and a trailer concrete pump. It mainly consists of a mixing system, a pumping system, a hydraulic oil pump, a lubrication system, a control system, a diesel engine, a mobile frame, concrete pipes and accessories.

Working Principle

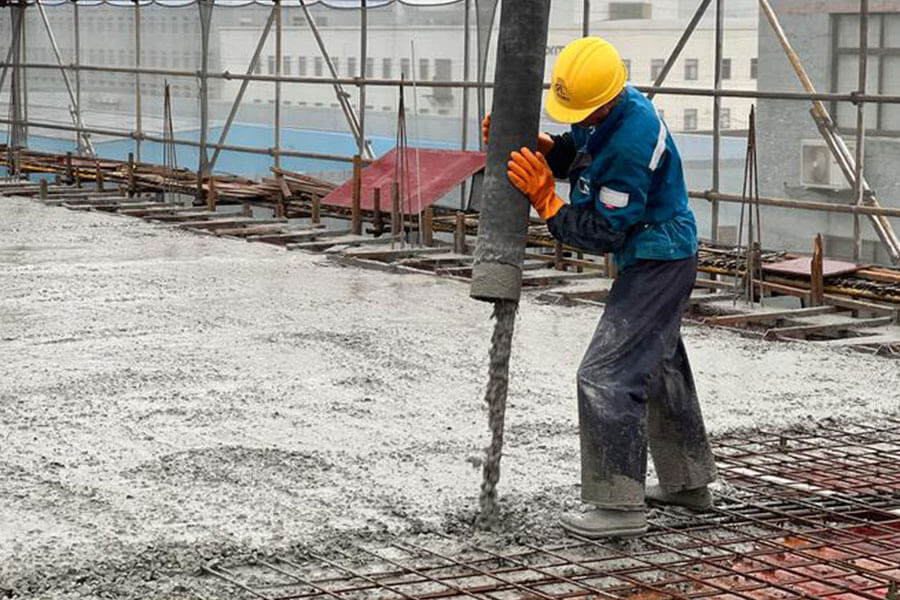

A diesel-powered concrete mixer pump uses a diesel engine to drive a mixer to evenly mix cement, sand, stone, and other raw materials to form concrete. The mixed concrete is then delivered to the designated location on the construction site via a pumping system. The diesel-powered pumping system provides sufficient pressure to ensure efficient and stable concrete delivery even in environments without power.

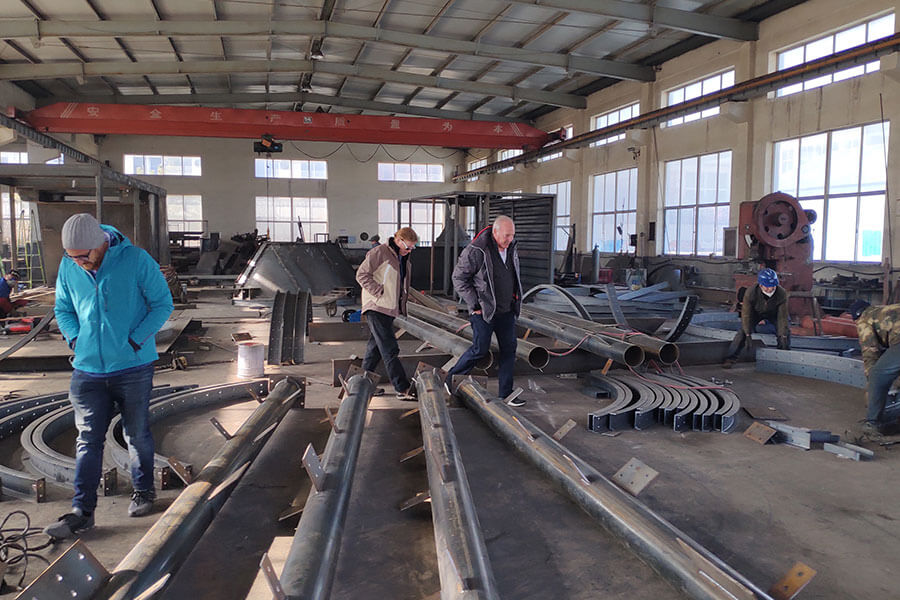

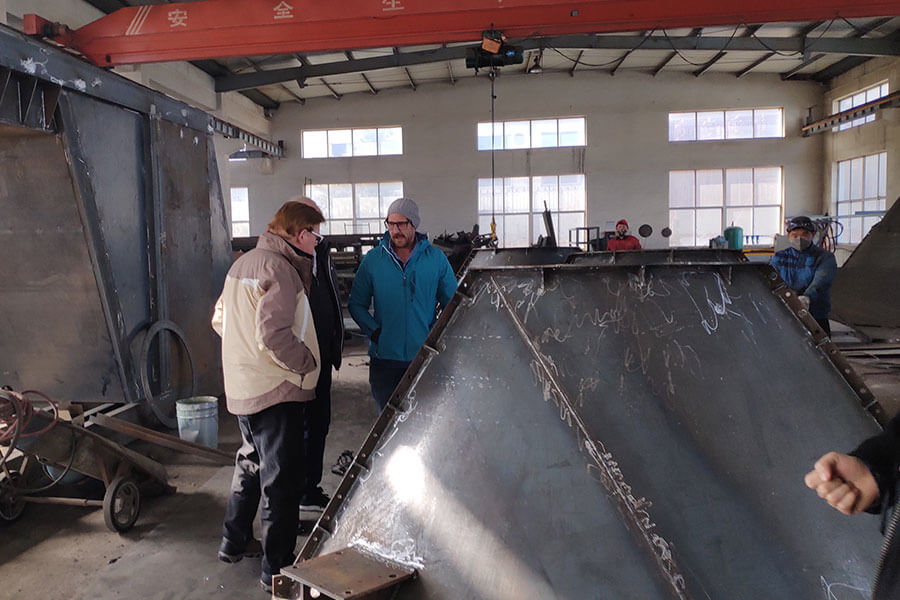

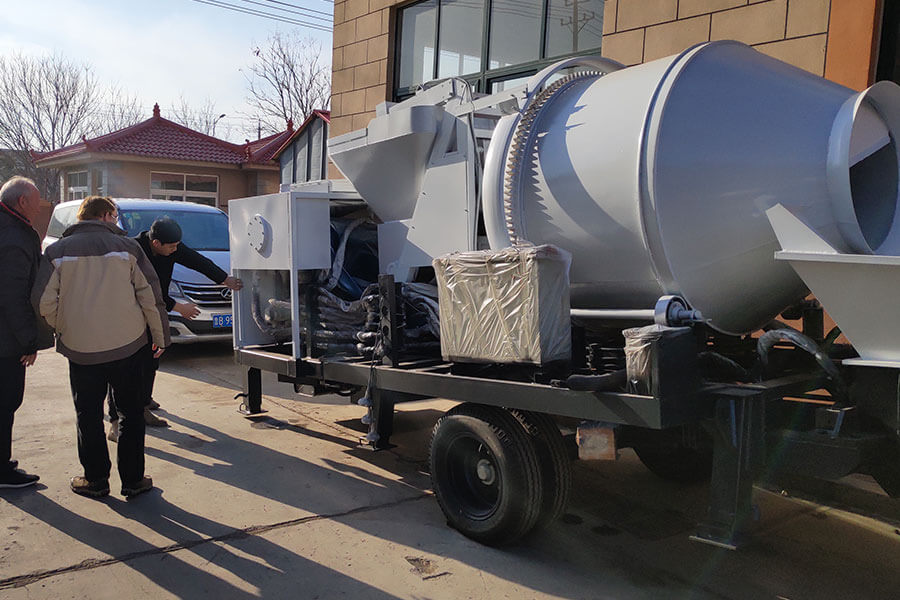

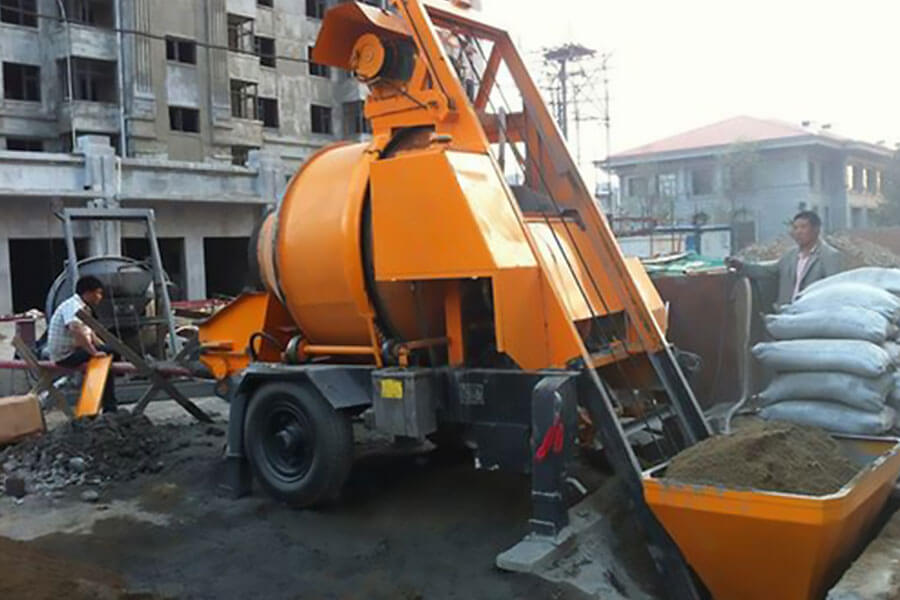

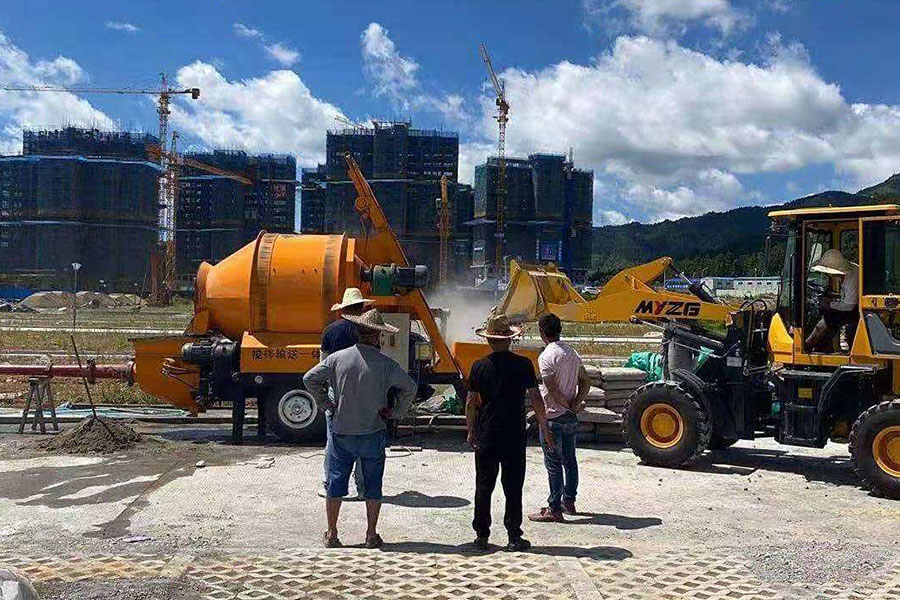

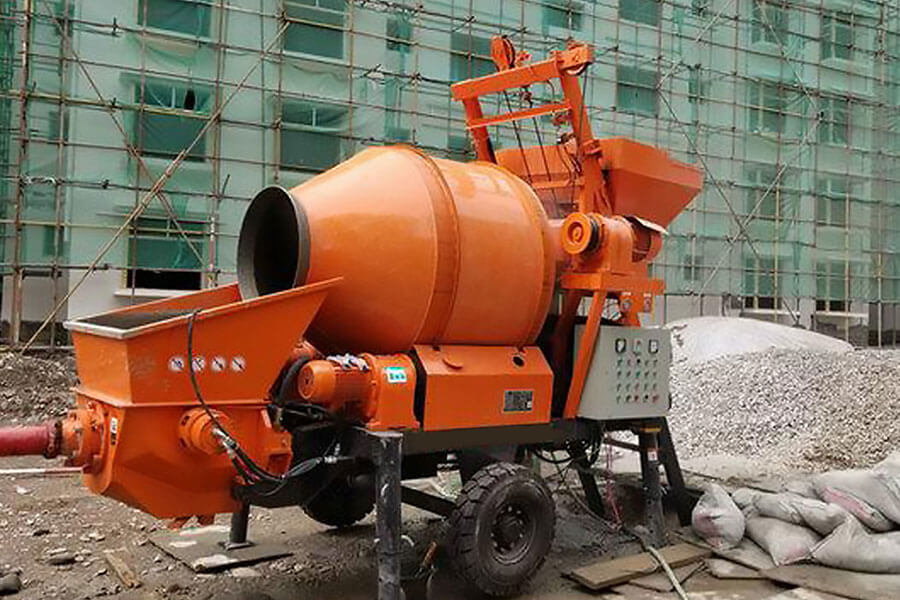

More on-site cases

Ethiopian concrete mixing pump

Brazilian concrete mixing pump

Mauritius soil mixing pump

Product Parameters

Model	JBTS30	JBTS40
Theoretical capacity(m³/h)	30	40
Max. concrete pumping pressure(Mpa)	10	10
Power type	Diesel	Diesel
Main diesel engine(kw)	82	82
Main oil pump	Kawasaki	Kawasaki
Main oil pump capacity(ml/min)	71	112
Theoretical delivery distance(m)	120/350	160/500
Hopper capacity(L)	550	550
Max. aggregate diameter(mm)	20/30	30/40
Inside diameter of delivery pipe(mm)	125	150
Loading capacity of the mixer(L)	560	720
Unloading capacity of the mixer(L)	350	450
Mixing motor(kw)	5.5	5.5
Hoisting motor(kw)	4.5	4.5
Dimension length x width x height(mm)	4500x2200x2800	4800x2200x2800
Total weight(kg)	5000	5500

Product Advantages

1.Widely Applicable
Because they use diesel engines as their power source, diesel-powered concrete mixer pumps are suitable for use in areas with insufficient or no electricity supply, and for field projects without reliable power.

2.Efficient and Stable
Compared to traditional manual mixing and transportation methods, diesel-powered concrete mixer pumps significantly improve concrete mixing and transportation efficiency, reduce labor intensity, and ensure rapid and stable delivery of concrete to the construction site.

3.Environmentally Friendly
Modern diesel engines are typically equipped with advanced emission control systems, reducing pollutant emissions and improving noise control, thereby minimizing the impact on the surrounding environment.

4.Applications
This equipment is widely used in various construction sites, including construction sites, bridges, roads, water conservancy projects, and mines, and is particularly suitable for environments with high power requirements.

5.Easily Operated

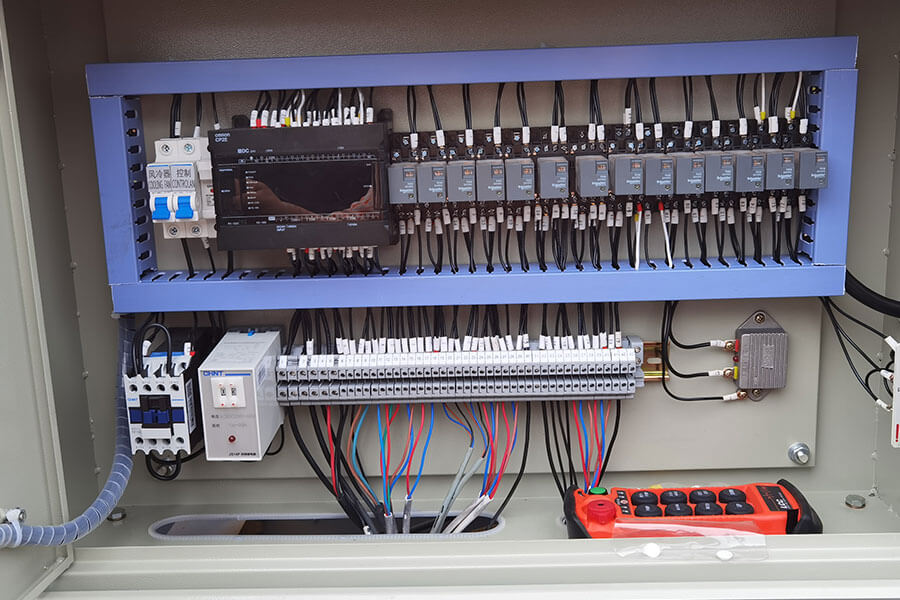

Equipped with a PLC control system, it features a high degree of automation and simple operation, reducing reliance on manual operation.

6.Excellent Features
Open hydraulic system for stable and reliable performance and low failure rate. Open hydraulic system for stable and reliable performance.

diesel engine concrete mixer pump Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and exceptional machinery, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its founding. Henan Hengyuan’s diesel engine concrete mixer pumps are suitable for various construction projects requiring power supply.

Hengyuan diesel engine concrete mixing pump price

The following prices are for reference only. Specific prices will vary depending on your desired configuration. We can customize any type of concrete mixer pump to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.

Types	Price range
JBS Motor powered concrete mixing pump	$20,000-$40,000
JBTS Diesel powered concrete mixing pump	$25,000-$40,000
Twin shaft concrete mixing pump	$20,000-$40,000
Pan concrete mixing pump	$23,000-$45,000
Concrete mixing pump with batching machine	$25,000-$50,000

Concrete mixing and pumping solutions

Diesel-powered concrete mixer pumps are suitable for various construction and engineering projects that lack a stable power supply, especially in remote areas, large-scale infrastructure construction, and water conservancy projects. Their efficient, flexible, and stable concrete delivery capabilities make them a vital piece of equipment to ensure the smooth progress of projects.
