Diesel Engine Driven Concrete Pump

Diesel engine powered concrete pump, trailer mounted concrete pump manufacturer - Henan Hengyuan

A diesel-powered concrete pump is a diesel-powered machine used to pump concrete from a truck mixer or concrete mixer to a designated location on a construction site. The advantage of a diesel-powered concrete pump is its adaptability, making it particularly suitable for construction sites without a stable power supply.

Capacity: 40-90 m³/h

Diesel engine power: 66-176 kw

Scope of application: Concrete pumping for construction projects, bridge construction, road construction projects, etc.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

The HBTS diesel-driven concrete pump is a concrete pumping and transportation equipment widely used in urban construction, bridge construction, power and other energy facilities and other construction projects. This machine is suitable for areas with power shortages and is diesel-driven and convenient.

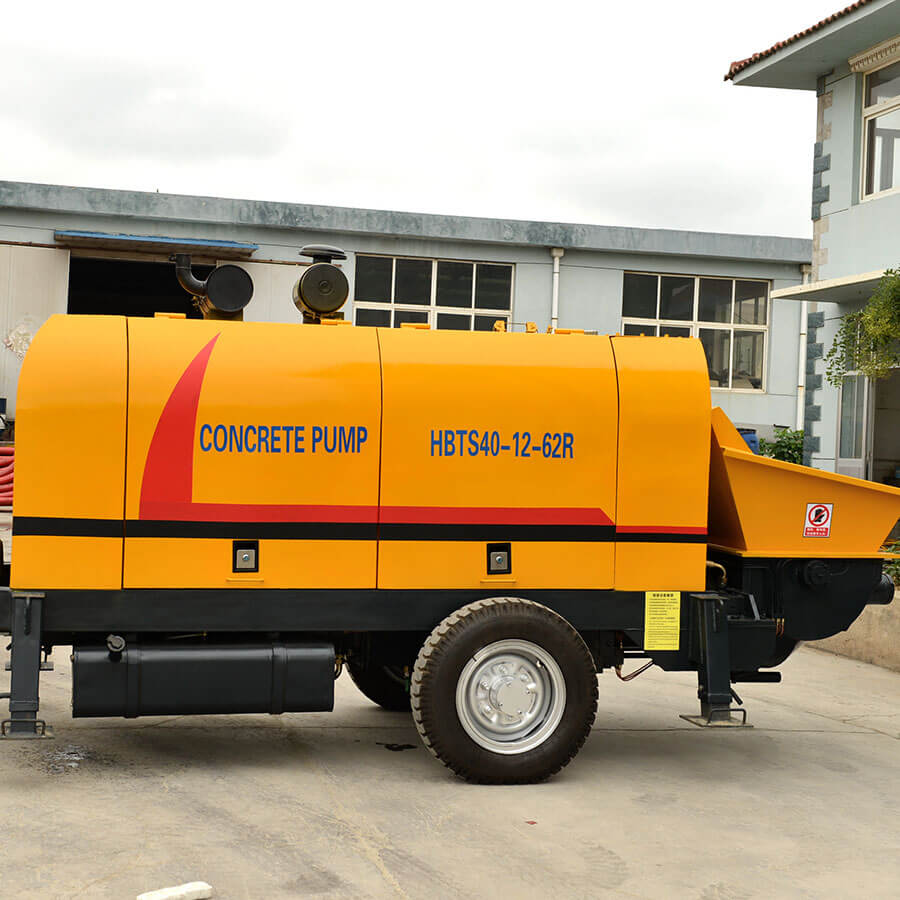

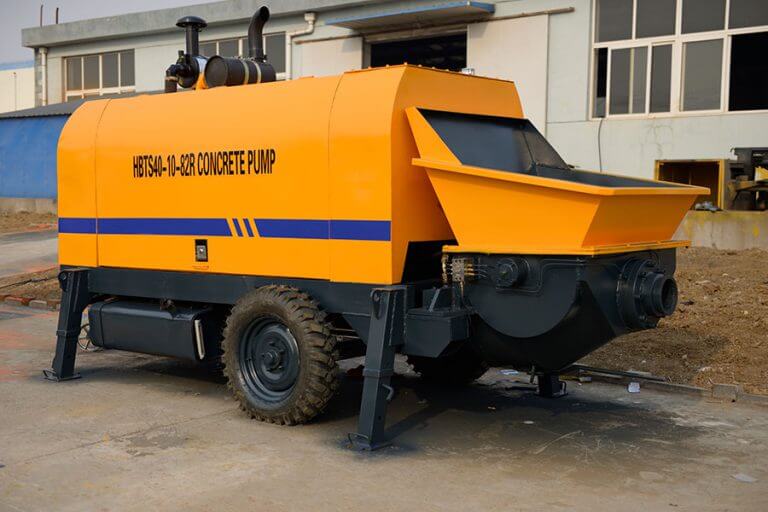

HBTS-40 concrete pump

get quote

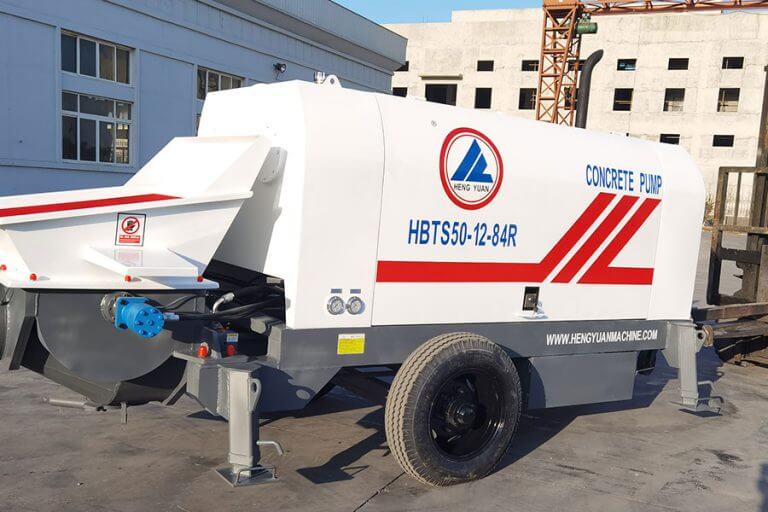

HBTS-50 concrete pump

get quote

HBTS-60 concrete pump

get quote

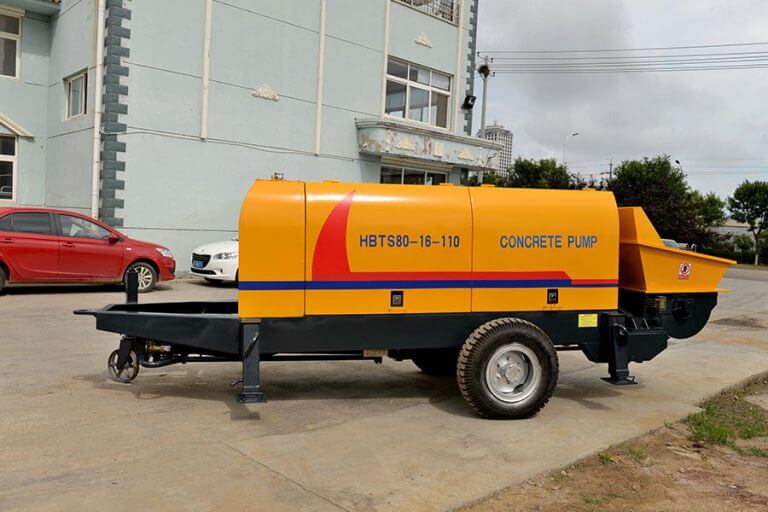

HBTS-80 concrete pump

get quote

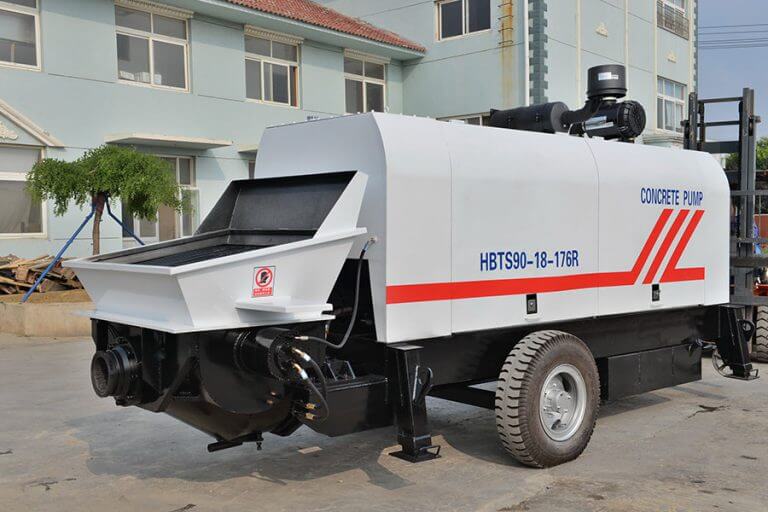

HBTS-90 concrete pump

get quote

Product Structure

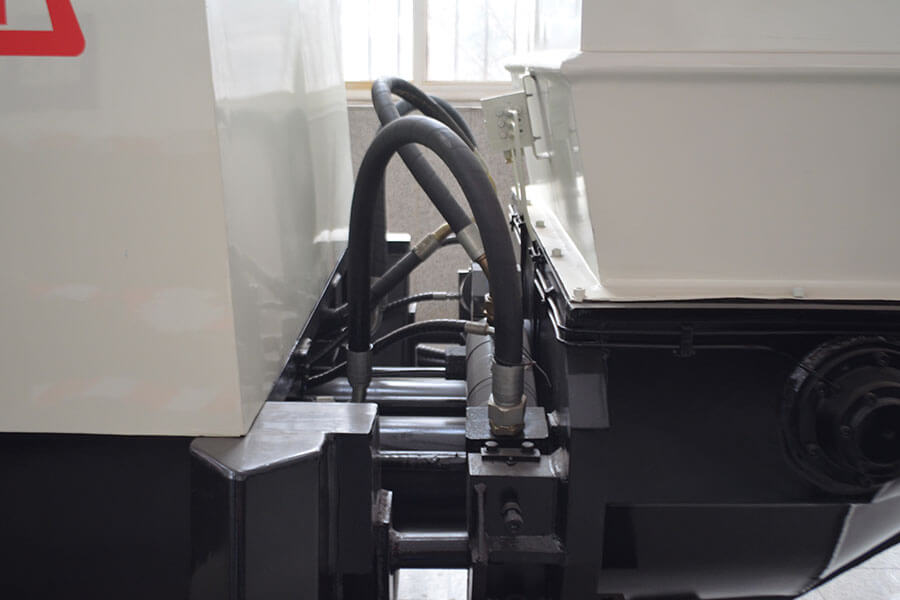

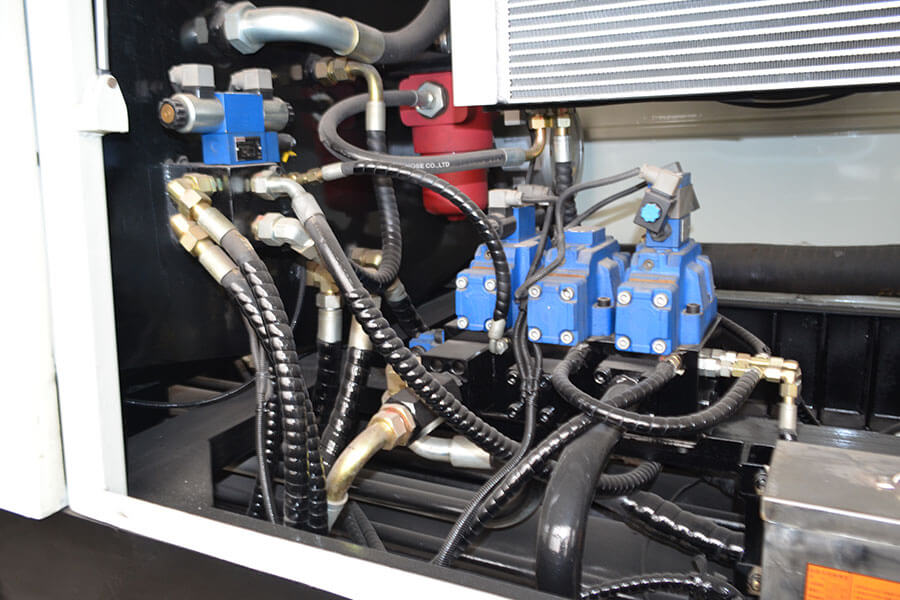

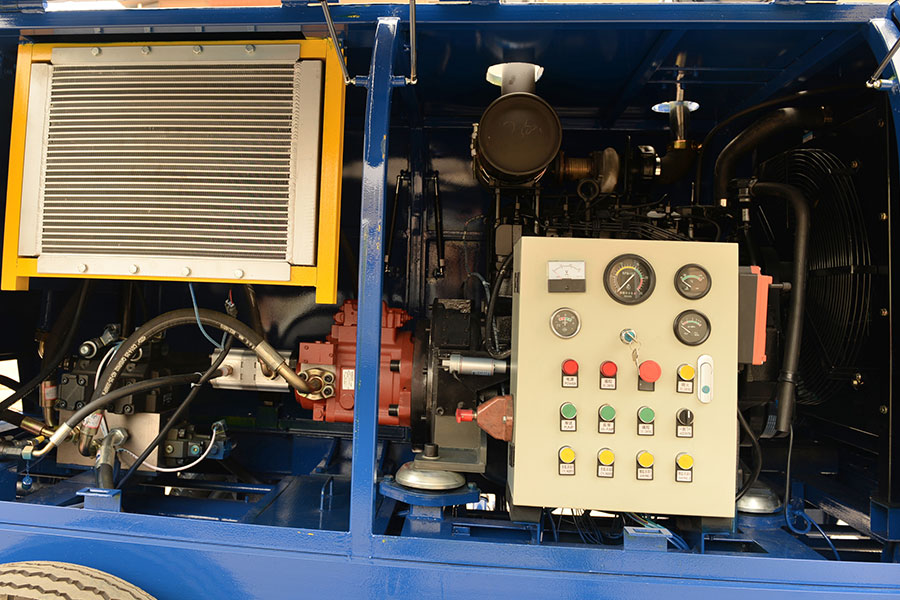

HBTS electric concrete pump is mainly composed of radiator, diesel engine, control system, hydraulic oil pump, lubrication system, sealing system, mobile frame, concrete pipe and accessories. The whole machine occupies a small area and is driven by a diesel engine.

Working Principle

A diesel-powered trailer-mounted concrete pump is driven by a diesel generator. It uses a piston or plunger to push concrete, delivering it through pipelines to the construction site. Once the trailer-mounted concrete pump is started, concrete enters the inlet through the hopper and is reversed by the screw conveyor on the positive displacement hopper. Simultaneously, the concrete is forced into the discharge pipe by the delivery cylinder. The pressure differential rapidly pumps the concrete from the mixing plant to the construction site.

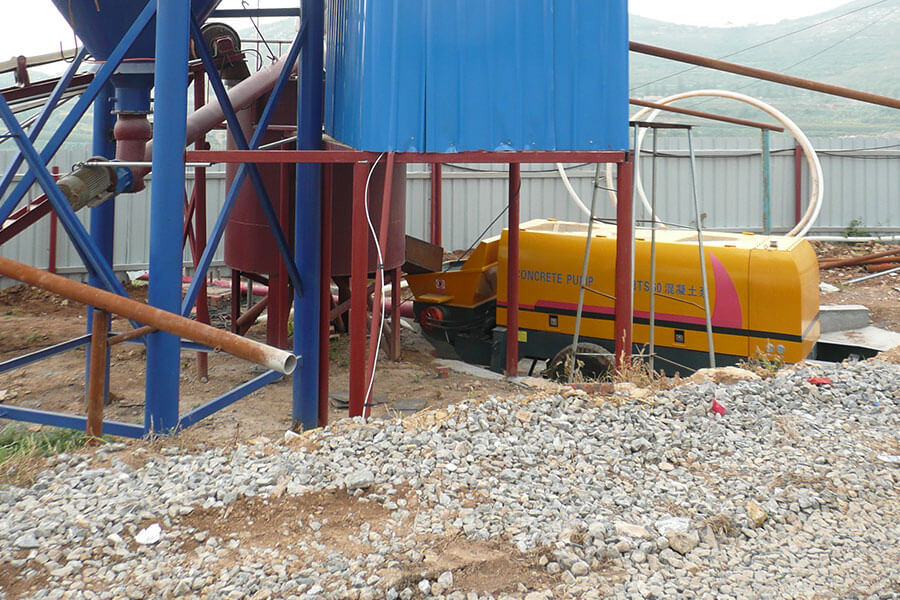

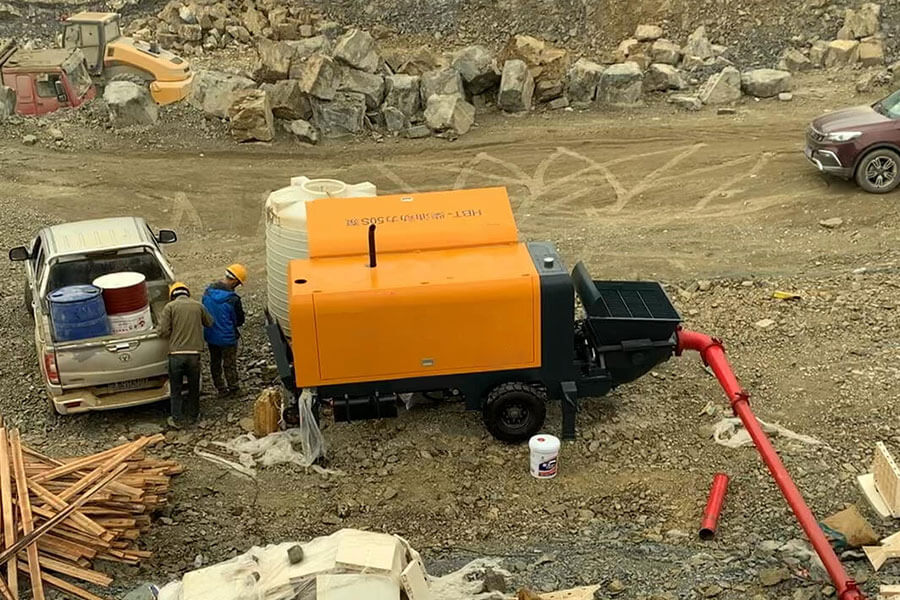

More on-site cases

Botswana concrete pump

Guyana concrete pump

Mali concrete pump

Product Parameters

Model	HBTS40	HBTS50	HBTS60	HBTS80	HBTS90
Max. Theoretic capacity(m³/h)	40	50	60/46	85/50	90/55
Max, Theoretic pressure(Mpa)	10	12	13/6.3	15.7/8.6	18/9.3
Diesel engine power(kw)	66	82	129	176	176
Maximum vertical distance(mm)	120	150	200	250	300
Maximum horizontal distance(mm)	250	300	500	800	1000
Disribution valve type	S valve
Hydraulic oil circuit type	Open Circuit
Specification of concrete cylinder(mm)	Ø160×1000	Ø180×1200	Ø200×1800	Ø200×1800	Ø200×1800
Specification of main oil cylinder(mm)	Ø100×1000	Ø125×1200	Ø140×1800	Ø140×1800	Ø140×1800
Oil tank capacity(L)	300	300	420	420	580
Hopper capacity(L)	600	600	600	600	800
Max. Aggregate diameter(mm)	Slick scree: 40		Slick scree: 50
Max. Aggregate diameter(mm)	Scree: 30		Scree: 40
Dimension (LxWxH)(mm)	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800	6000×2000×1800
Overall weight(kg)	3200	3800	5800	6500	6800
Pulling speed(km/h)	≤8

Product Advantages

1.Powerful Power
Powered by a diesel engine, it ensures efficient and continuous concrete delivery, adapting to long-duration, high-volume operations.

2.Easy to Move
Diesel-powered concrete pumps are often equipped with a vehicle-mounted system, making them easy to move between construction sites. They are particularly suitable for large-scale construction projects or those requiring frequent relocation.

3.Strong Adaptability
Compared to electric pumps, diesel-powered pumps do not rely on external power sources and are therefore suitable for environments with unstable power supplies, such as rural and mountainous areas or temporary construction sites.

4.Easy Operation
Modern diesel-powered concrete pumps typically feature a simpler operating system and are equipped with an automatic control system, enhancing pumping stability and safety.

5.Efficient Concrete Delivery
Concrete can be delivered over long distances and in high-rise buildings. High-pressure pumping, in particular, ensures that concrete can be delivered to greater distances and heights.

6.High Pumping Efficiency
The new high-speed reversing method improves pump reversing efficiency by 12%. The large-displacement pumping system increases suction efficiency by 6%.

Diesel engine powered concrete pump Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and exceptional machinery, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its founding. Henan Hengyuan’s diesel-powered concrete pumps are suitable for various construction projects requiring power supply.

Hengyuan Diesel engine concrete pump price

The following prices are for reference only. Exact prices will vary depending on your desired configuration. We can customize any type of concrete pump to meet your needs.
If you would like more information about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and will provide you with the most suitable equipment for your specific concrete batching plant needs.

Types	Price range
HBT motor driven concrete pump	$10,000-$60,000
HBTS diesel engine driven concrete pump	$15,000-$60,000

Concrete pumping solutions

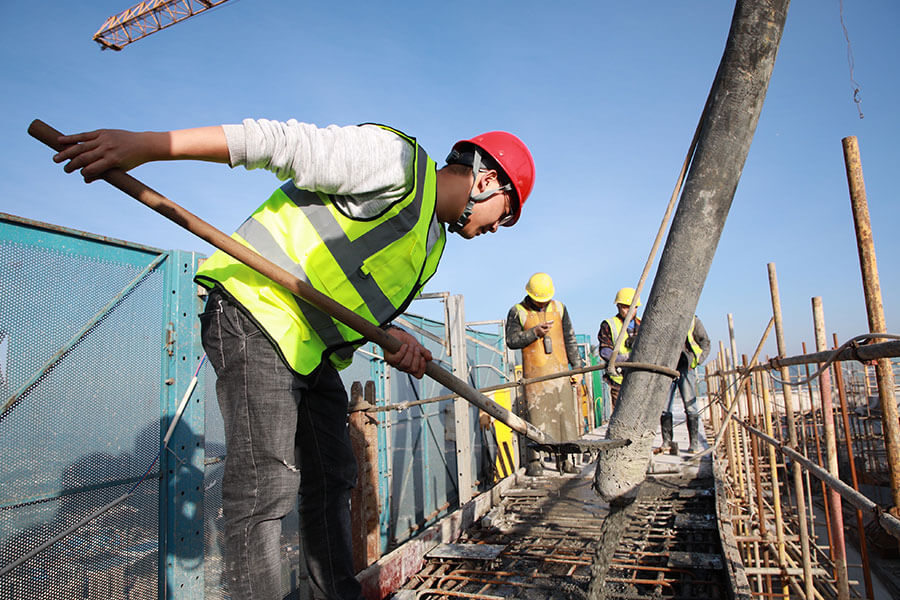

Henan Hengyuan’s concrete pumps are suitable for a variety of applications, including high-rise buildings, bridge projects, road construction, underground projects, large-scale construction, and urban and rural concrete supply. They offer significant advantages in complex construction environments, such as long distances, large volumes, and confined spaces. Their flexibility and efficiency make them essential equipment in modern construction.
