Electric Concrete Mixer Pump

Electric concrete mixing pump, professional concrete mixing pump manufacturer-Henan Hengyuan

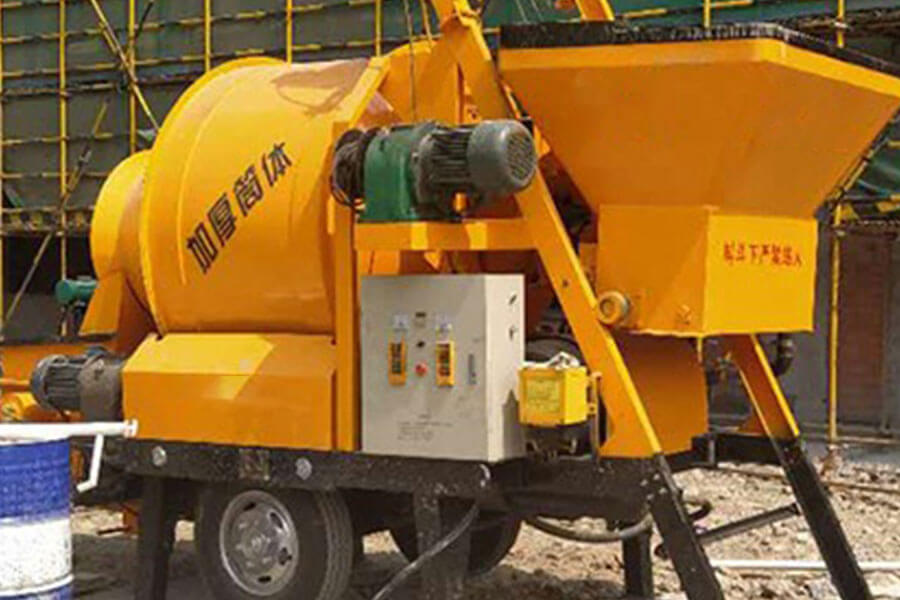

An electric concrete mixer pump is a mechanical device driven by an electric motor. It is mainly used to pump concrete from a mixer to a designated location on the construction site. It is a new type of equipment that integrates the functions of a concrete mixer truck and a concrete pump.

Capacity: 30-40 m³/h

Motor power: 37-45 kw

Scope of application: Concrete mixing and pumping for residential buildings, house construction, railway tunnels and other projects.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

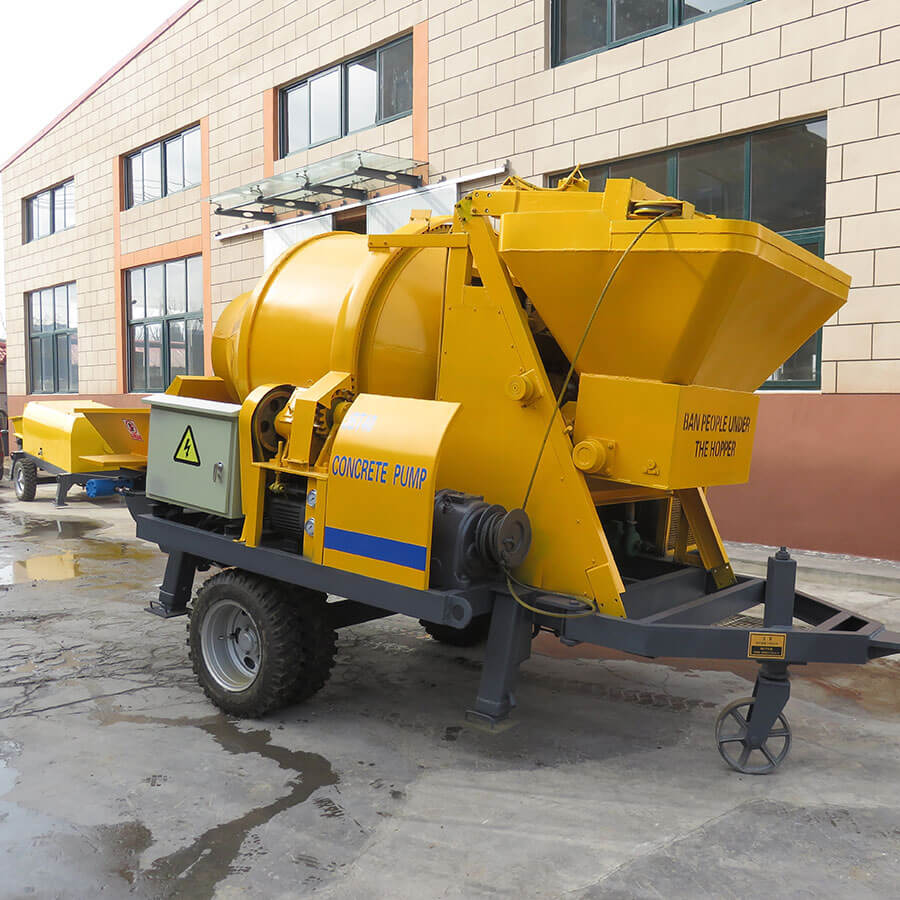

The JBS electric-driven concrete mixer pump is a new type of equipment that integrates the functions of a concrete mixer truck and a concrete trailer pump. It is suitable for small and medium-sized houses with a height of 2 meters to 100 meters, as well as various projects such as mine caves, highway and railway tunnels, water conservancy and hydropower projects, and geological disaster slope protection.

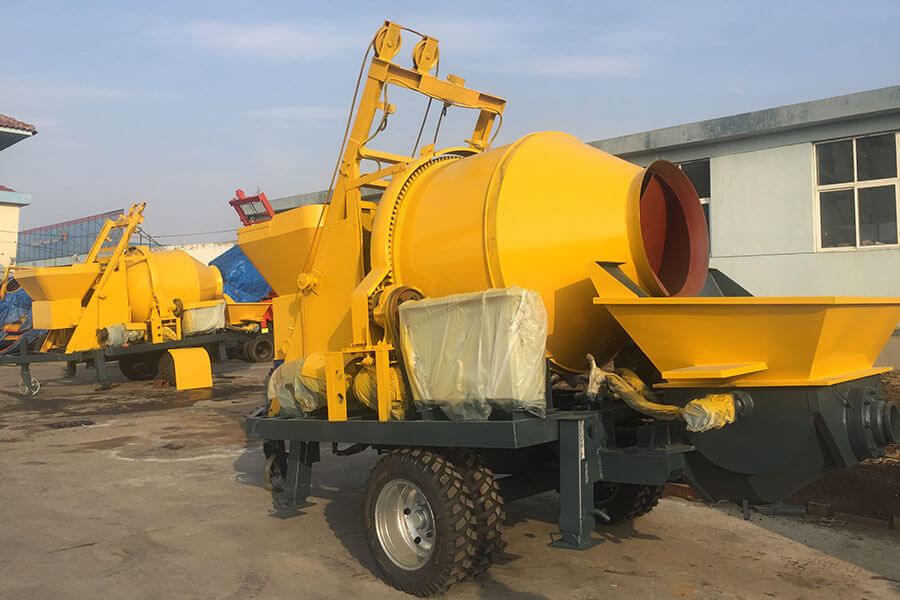

JBS-30 concrete mixer pump

get quote

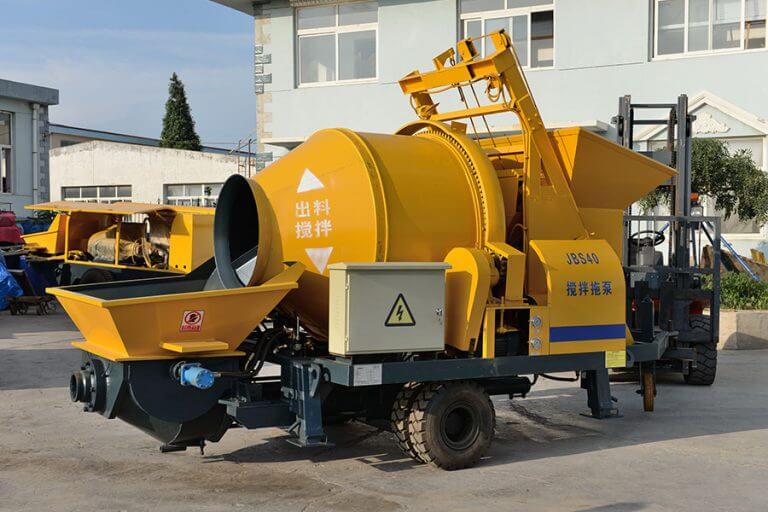

JBS-40 concrete mixer pump

get quote

Product Structure

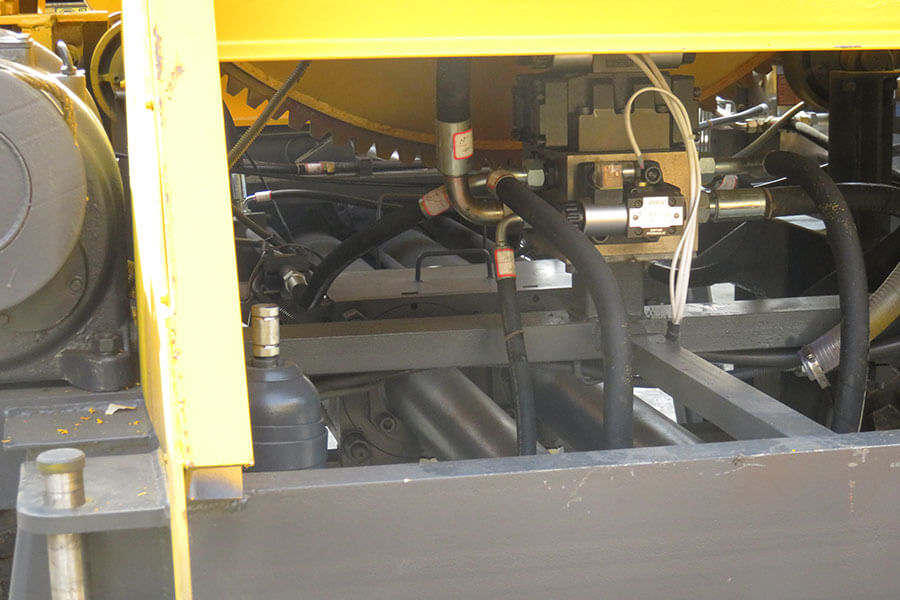

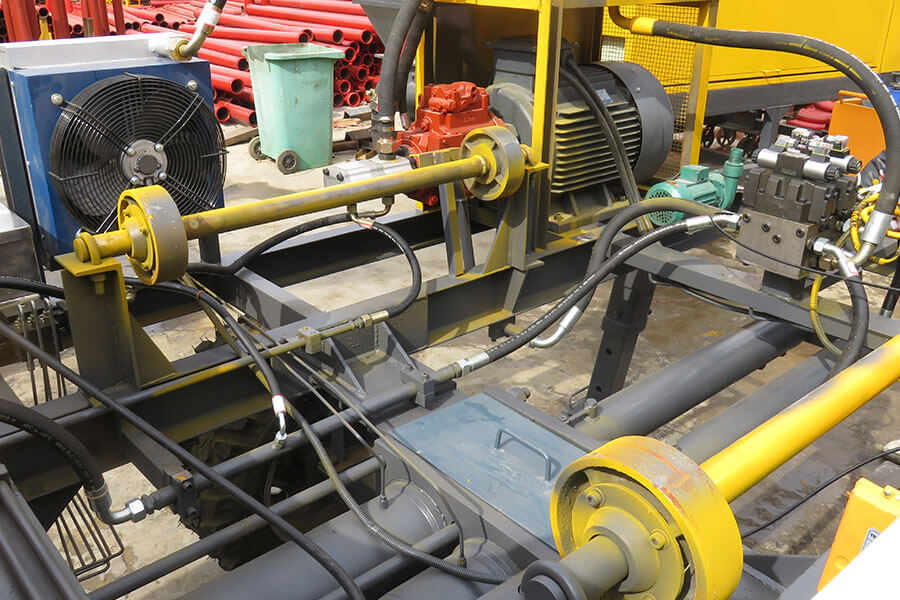

JBS electric concrete mixer pump is a new type of equipment that integrates the functions of a concrete mixer truck and a concrete trailer pump. It is mainly composed of a mixing system, a pumping system, a hydraulic oil pump, a lubrication system, a control system, a motor, a mobile frame, concrete pipes and accessories.

Working Principle

An electric concrete mixer pump uses an electric motor to drive a mixer to mix cement, sand, stone, and other raw materials into concrete. The pumping system then delivers the concrete through pipelines to the designated location. Mixing and pumping can occur simultaneously, and an electronic control system adjusts operating parameters to ensure efficient and stable concrete delivery.

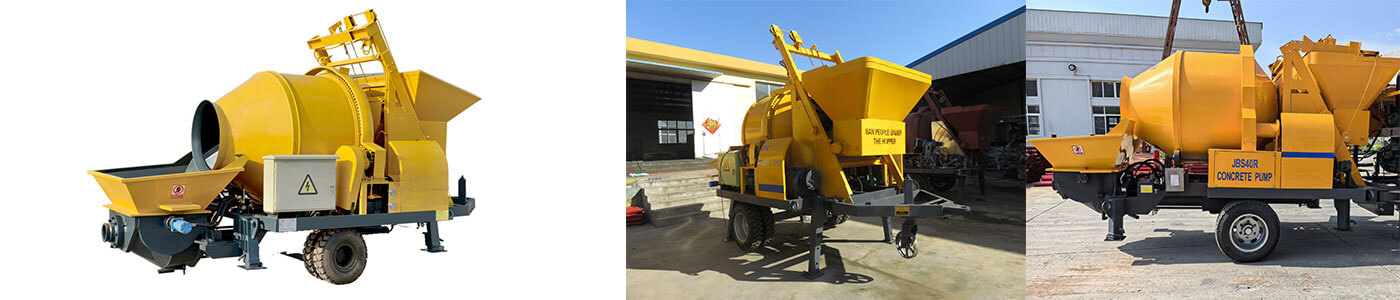

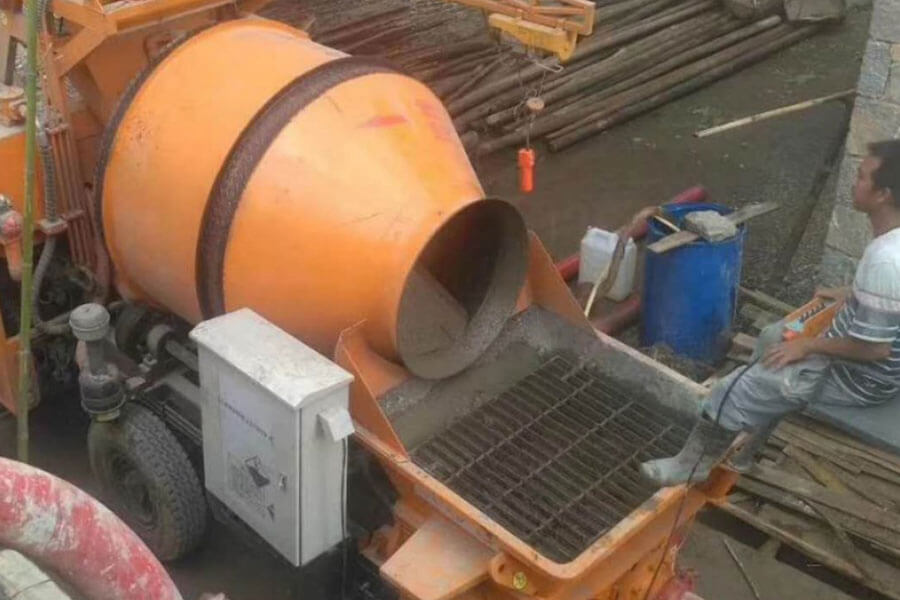

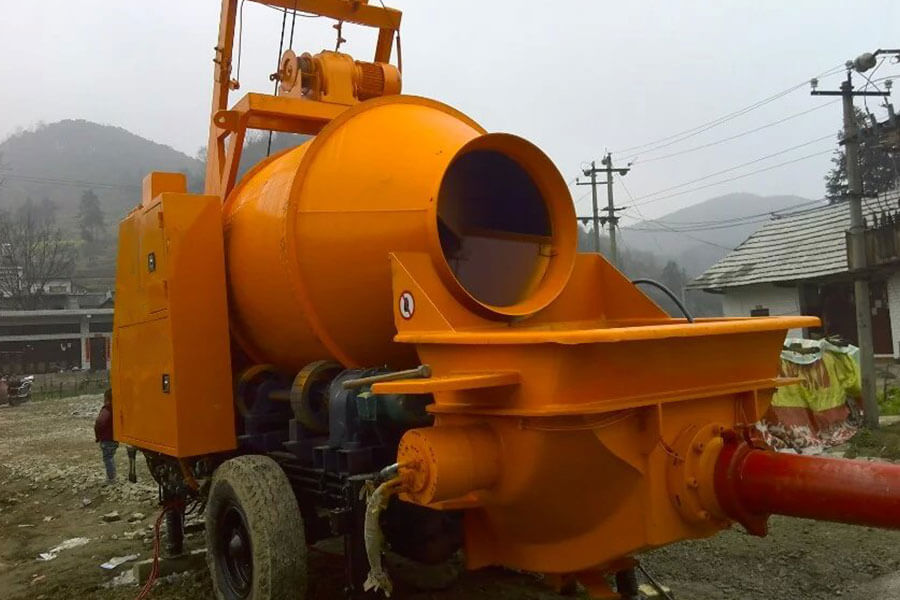

More on-site cases

Paraguay concrete mixing pump

Albanian concrete mixing pump

Somali concrete mixing pump

Product Parameters

Model	JBS30	JBS40
Theoretical capacity(m³/h)	30	40
Max. concrete pumping pressure(Mpa)	10	10
Power type	Motor	Motor
Main electric motor(kw)	37	45
Main oil pump	Kawasaki	Kawasaki
Main oil pump capacity(ml/min)	71	112
Theoretical delivery distance(m)	120/350	160/500
Hopper capacity(L)	550	550
Max. aggregate diameter(mm)	20/30	30/40
Inside diameter of delivery pipe(mm)	125	150
Loading capacity of the mixer(L)	560	720
Unloading capacity of the mixer(L)	350	450
Mixing motor(kw)	5.5	5.5
Hoisting motor(kw)	4.5	4.5
Dimension(LxWxH)(mm)	4500x2200x2800	4800x2200x2800
Total weight(kg)	5000	5500

Product Advantages

1.Energy Saving
Electric concrete mixer pumps are powered by electricity, resulting in lower emissions and quieter noise compared to diesel-powered pumps, making them suitable for construction sites with demanding environmental requirements.

2.Compact Structure
These units are typically smaller, making them ideal for urban construction sites with limited space, especially small residential and commercial buildings.

3.Efficient Mixing and Pumping
These units combine mixing and pumping functions, enabling simultaneous mixing and pumping of concrete, improving work efficiency.

4.Strong Stability
The electric motor provides stable power and is easy to operate, reducing the likelihood of failure and ensuring long-term, reliable operation.

5.Wide Application
These units are suitable for areas and construction projects with ample power supply and demanding environmental requirements, particularly those requiring precise control of concrete delivery.

6.Excellent Quality

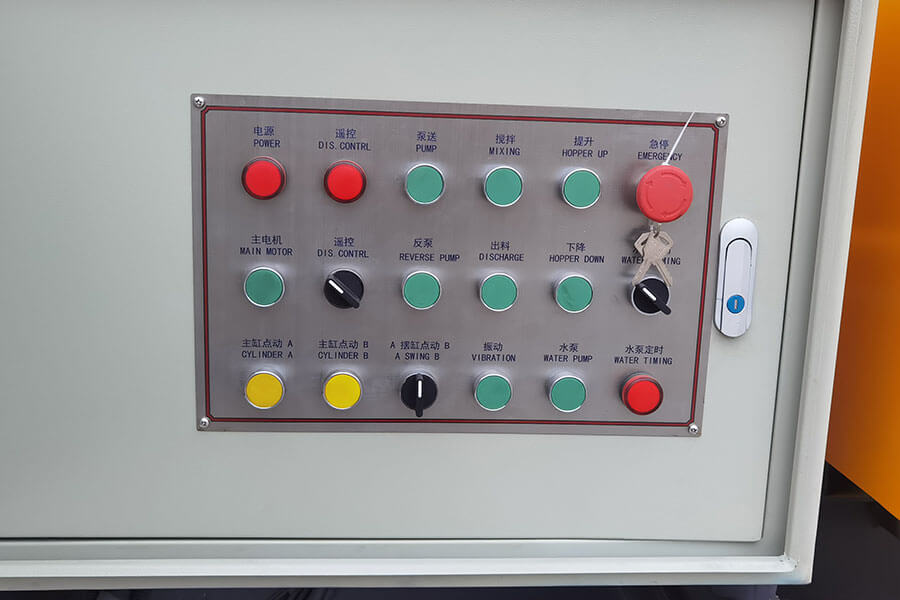

The main oil pump uses the renowned Kawasaki series. The lubrication system utilizes an automatic lubrication system, ensuring high oil pressure and stable lubrication. The control system utilizes a Japanese Omron PLC control system.

Electric concrete mixer pump Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and exceptional machinery, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its founding. Henan Hengyuan’s elestric concrete mixer pumps are suitable for various construction projects requiring power supply.

Hengyuan Electric concrete mixer pump price

The following prices are for reference only. Exact prices will vary depending on your desired configuration. We can customize any type of concrete mixer pump to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment based on your specific needs.

Types	Price range
JBS Motor powered concrete mixing pump	$20,000-$40,000
JBTS Diesel powered concrete mixing pump	$25,000-$40,000
Twin shaft concrete mixing pump	$20,000-$40,000
Pan concrete mixing pump	$23,000-$45,000
Concrete mixing pump with batching machine	$25,000-$50,000

Concrete mixing and pumping solutions

Electric concrete mixer pumps have a wide range of applications, including residential construction, municipal engineering, commercial construction, industrial construction, and water conservancy projects. In areas with ample power supply and strict environmental requirements, electric concrete mixer pumps, due to their high efficiency, environmental friendliness, and stability, have become an indispensable piece of equipment in various construction and infrastructure projects.
