Electric Concrete Pump

Electric concrete pumps are commonly used on construction sites. Driven primarily by an electric motor, they transport concrete from a mixing plant or silo to the pouring location on the construction site. They offer low energy consumption and high efficiency, making them suitable for small- to medium-scale concrete placement projects.

Capacity: 40-90 m³/h

Motor engine power: 45-110 kw

Scope of application: Concrete pumping for urban construction, bridge construction, power and other energy facilities.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

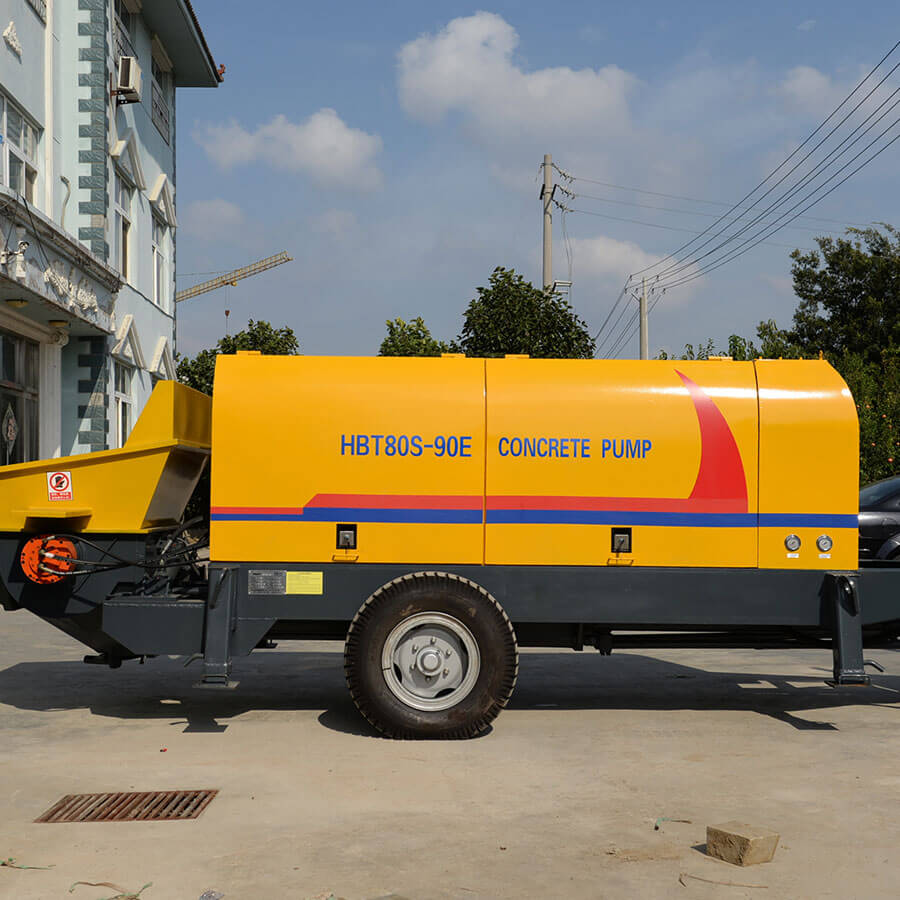

The HBT motor-driven concrete pump is a type of concrete pumping and transportation equipment widely used in urban construction, bridge construction, power and other energy facilities, and other construction projects. Suitable for areas with stable voltages, it operates quietly and is easy to move.

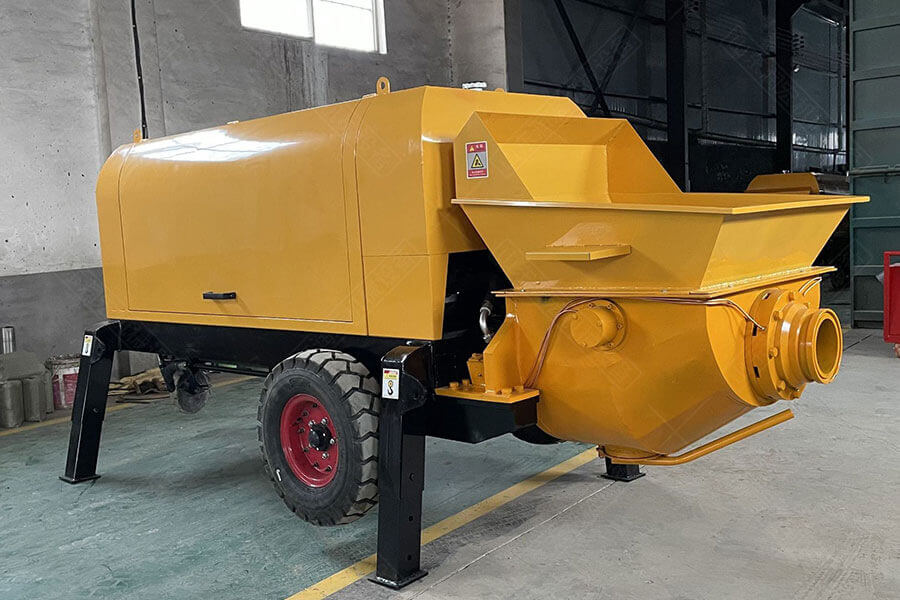

HBT-40 concrete pump

get quote

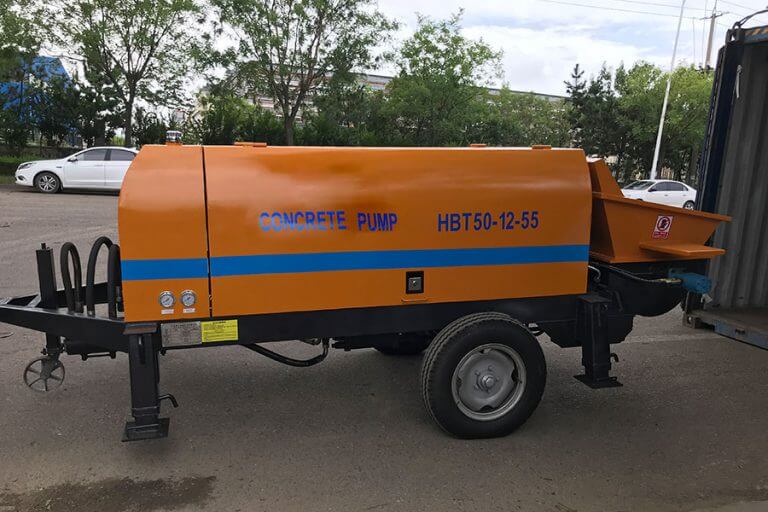

HBT-50 concrete pump

get quote

HBT-60 concrete pump

get quote

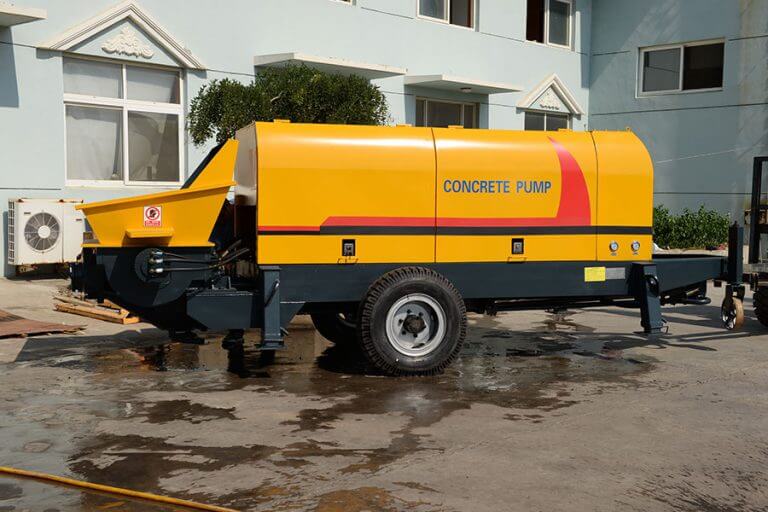

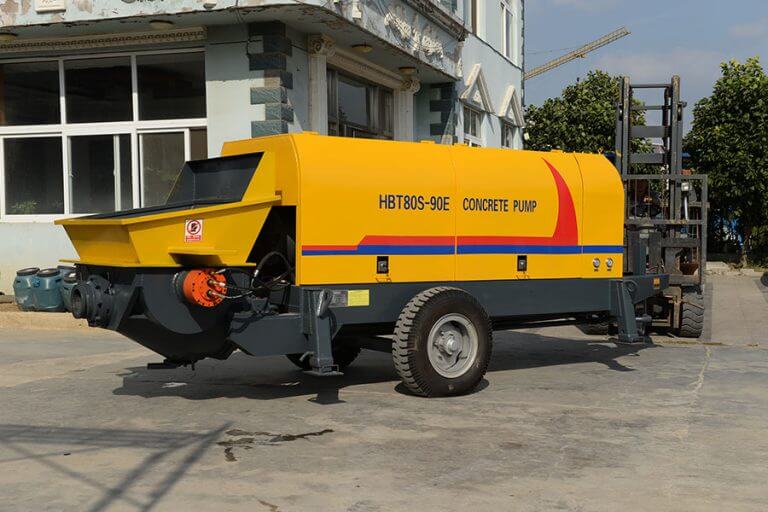

HBT-80 concrete pump

get quote

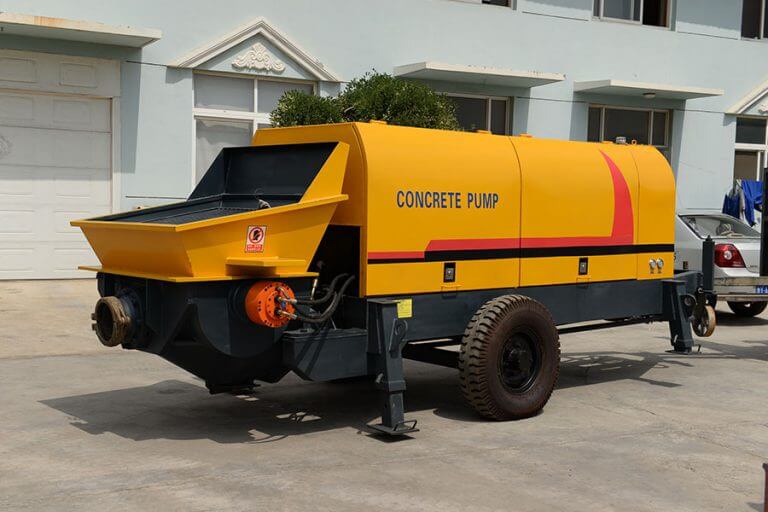

HBT-90 concrete pump

get quote

Product Structure

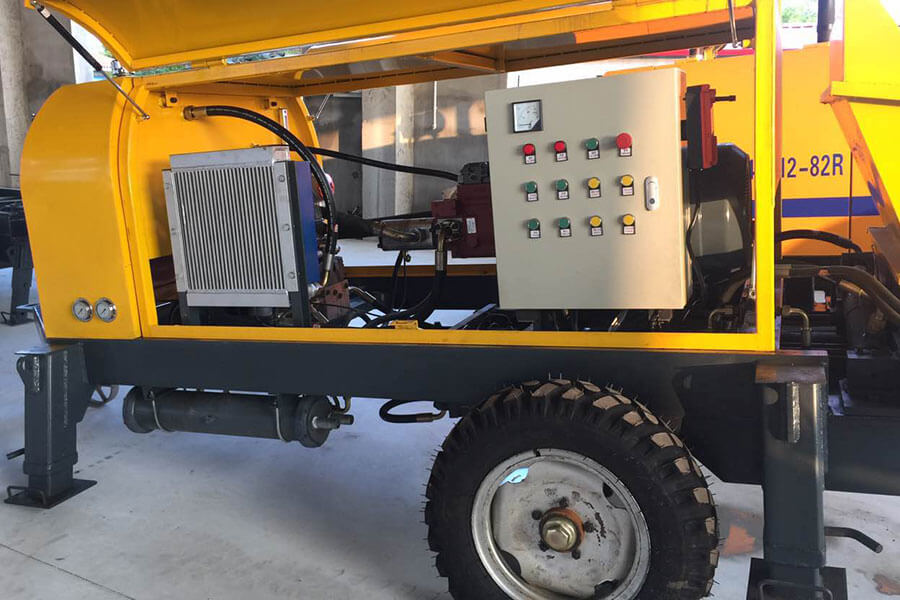

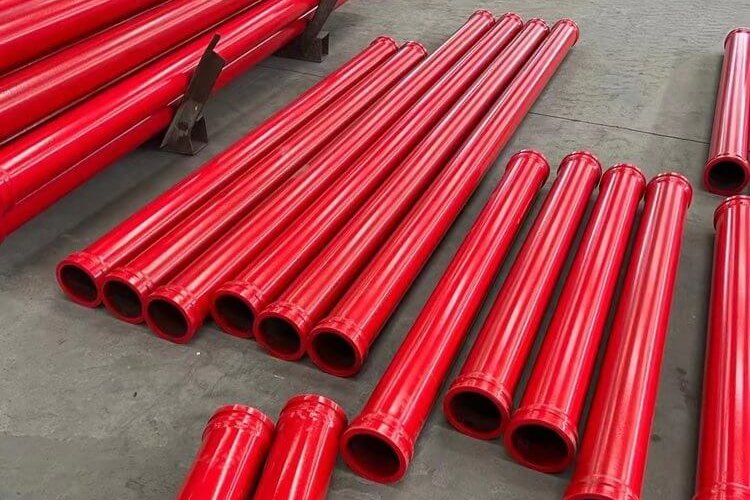

An electric concrete pump primarily consists of a motor, hydraulic system, pumping system, batching and delivery pipelines, control system, feed system, and discharge system. Each concrete pump includes 100/150m of concrete piping and accessories (clamps, rubber, cleaning balls, etc.). Through the coordinated operation of these components, the electric concrete pump efficiently and stably delivers concrete to the construction site.

Working Principle

Electric trailer-mounted concrete pumps are driven by an electric motor, using a piston or plunger to push concrete, delivering it through pipelines to the construction site. When the trailer-mounted pump is activated, concrete enters the injection port through the hopper and is forced backward by the screw conveyor on the positive displacement hopper. Simultaneously, the concrete is forced into the outlet pipe by the concrete delivery cylinder, rapidly utilizing the pressure differential to pump concrete from the mixing plant to the construction site.

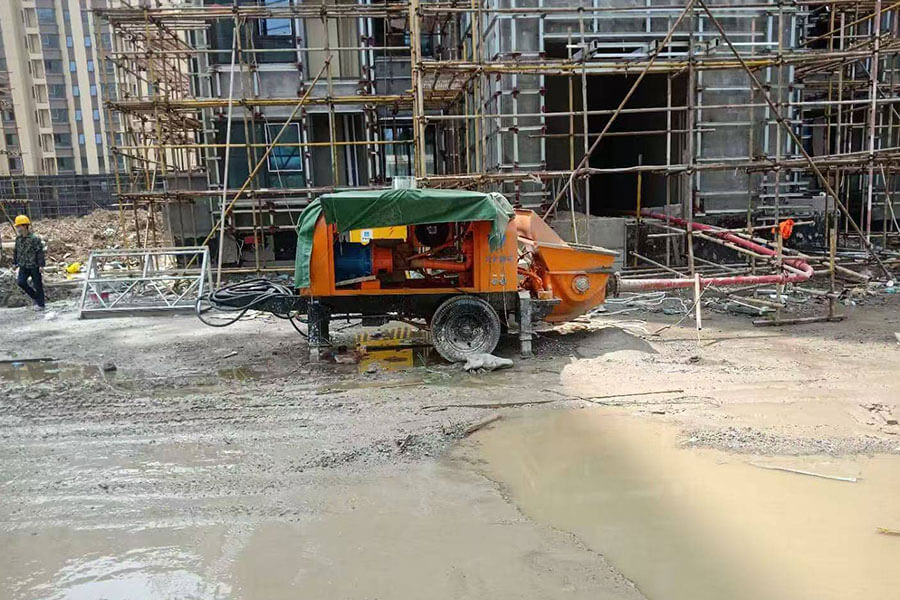

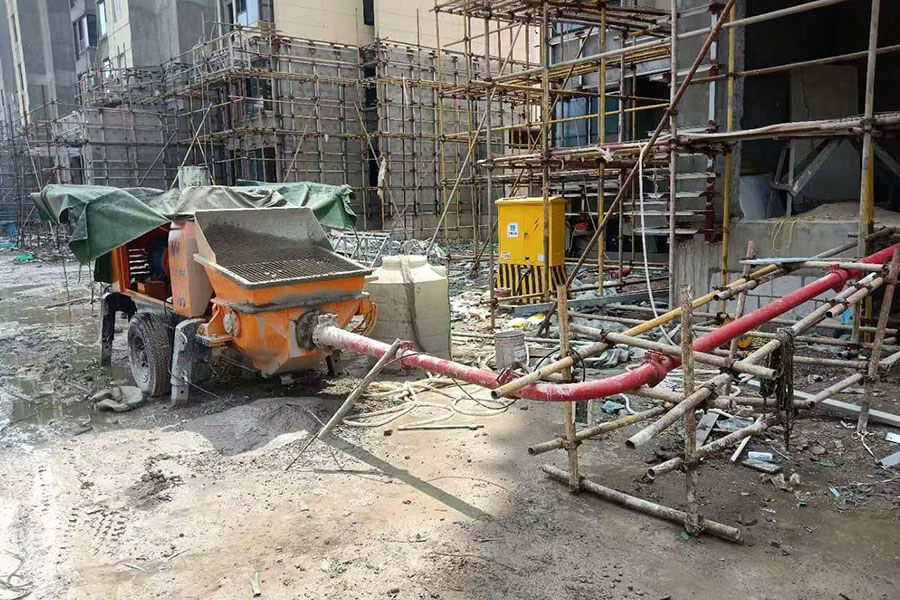

More on-site cases

Nigeria concrete pump

Myanmar concrete pump

Thai concrete pump

Product Parameters

Model	HBT-40	HBT-50	HBT-60	HBT-80	HBT-90
Max. Theoretic capacity(m³/h)	40	50	60/46	85/50	90/55
Max, Theoretic pressure(Mpa)	10	12	13/6.3	15.7/8.6	18/9.3
Motor engine power(kw)	45	55	90	110	110
Maximum vertical distance(mm)	120	150	200	250	300
Maximum horizontal distance(mm)	250	300	500	800	1000
Disribution valve type	S valve
Hydraulic oil circuit type	Open Circuit
Specification of concrete cylinder(mm)	Ø160×1000	Ø180×1200	Ø200×1800	Ø200×1800	Ø200×1800
Specification of main oil cylinder(mm)	Ø100×1000	Ø125×1200	Ø140×1800	Ø140×1800	Ø140×1800
Oil tank capacity(L)	300	300	420	420	580
Hopper capacity(L)	600	600	600	600	800
Max. Aggregate diameter(mm)	Slick scree: 40		Slick scree: 50
Max. Aggregate diameter(mm)	Scree: 30		Scree: 40
Dimension (LxWxH)(mm)	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800	6000×2000×1800
Overall weight(kg)	3200	3500	5500	5800	6500
Pulling speed(km/h)	≤8

Product Advantages

1.High Efficiency and Energy Saving:
Electric concrete pumps are driven by electric motors, making them more energy-efficient than traditional diesel-powered systems, reducing fuel consumption and emissions.

2.Strong Stability:
The electric motor and hydraulic system provide stable output power, ensuring a smoother and more stable concrete delivery process and reducing the risk of mechanical failure.

3.Low Noise:
Electric motors generate less noise than diesel engines, making them suitable for construction in urban areas or other areas requiring low noise levels, thereby improving the construction environment.

4.Easy Maintenance:
Electric systems are generally more reliable, have a lower failure rate, and are easier to repair and maintain.

5.Highly adaptable:
The pumping pressure and flow rate can be adjusted as needed, adapting to concrete delivery needs at different heights and distances.

6.Precision Control:
Equipped with an automated control system, it can precisely adjust pumping speed, pressure, and flow rate, improving construction quality and efficiency.

Electric concrete pump Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and excellent machinery quality, the company has been committed to providing the most professional technical services and high-quality equipment to customers around the world since its establishment. Henan Hengyuan’s concrete pumps are suitable for a variety of construction projects, featuring high pumping capacity, long pumping distances, and high pumping heights.

Hengyuan Electric concrete pump price

The following prices are for reference only. Exact prices will vary depending on your desired configuration. We can customize any type of concrete pump to meet your needs.
If you would like more information about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and will provide you with the most suitable equipment for your specific concrete batching plant needs.

Types	Price range
HBT motor driven concrete pump	$10,000-$60,000
HBTS diesel engine driven concrete pump	$15,000-$60,000

Concrete pumping solutions

Henan Hengyuan’s concrete pumps are suitable for a variety of applications, including high-rise buildings, bridge projects, road construction, underground projects, large-scale construction, and urban and rural concrete supply. They offer significant advantages in complex construction environments, such as long distances, large volumes, and confined spaces. Their flexibility and efficiency make them essential equipment in modern construction.
