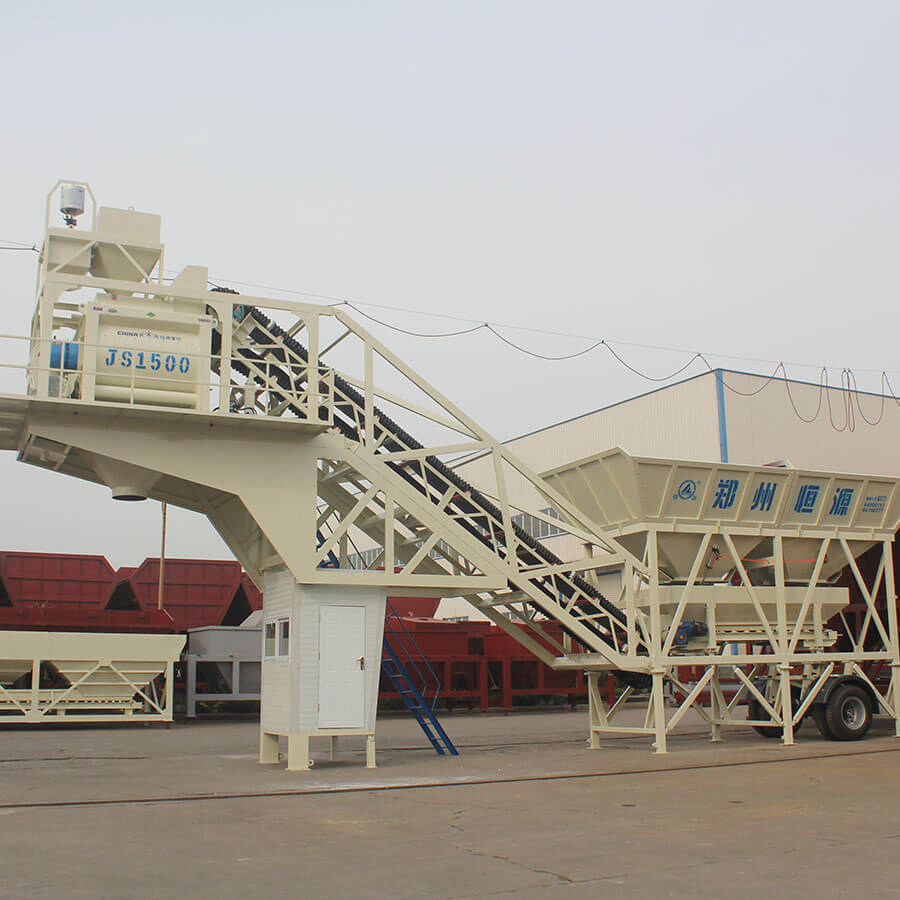

Mobile Concrete Batching Plant

A mobile concrete batching plant is a specialized device used for concrete production, offering advantages such as high efficiency, flexibility, and convenience. It can be quickly deployed to the construction site as needed. Its compact structure and easy transportation make it suitable for short-term or highly variable construction projects.

Capacity: 25-100 m³/h

Types: Drum type, Twin shaft type

Scope of application: Infrastructure construction, building construction, municipal engineering, emergency projects, etc.ants, etc.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

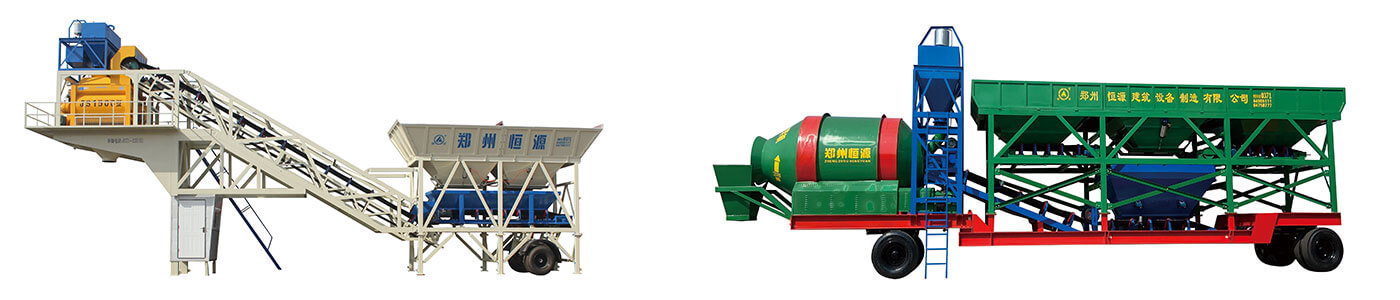

A rmc batching plant is a large-scale, automated concrete production facility. The main mixing unit can be a drum mixer or a twin-shaft mixer. All components are integrated into a single vehicle frame, minimizing space and facilitating transport. The entire mobile batching plant can be transported using one or two trailers.

YHZM drum type mobile concrete batching plant

get quote

YHZS-1.3 twin shaft mobile concrete batching plant

get quote

YHZS-3.8 twin shaft mobile concrete batching plant

get quote

Product Structure

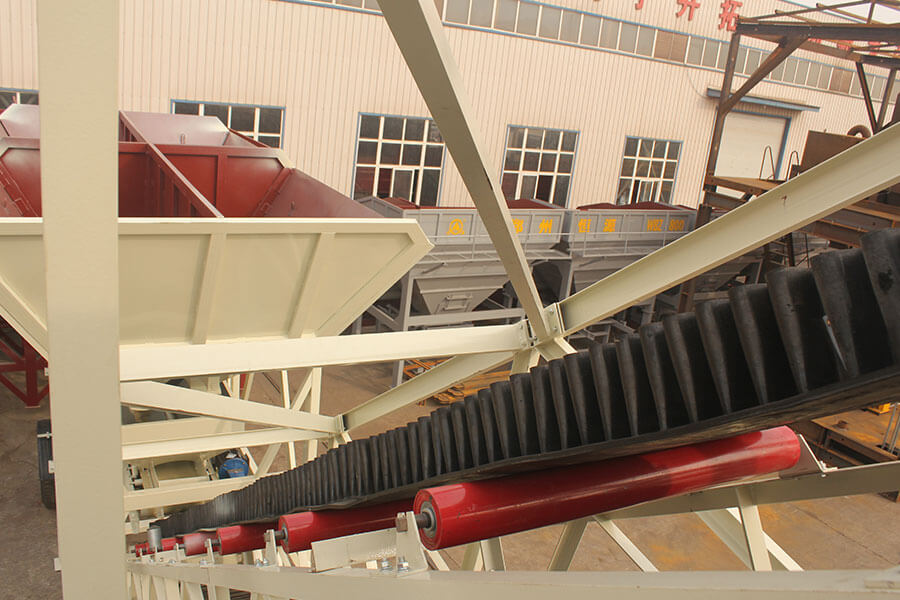

The movable concrete batching plant mainly consists of aggregate/fly ash/cement/additive/water batching system, mixing system, conveying system, automatic control system, mobile frame, etc. Its structure is easy to transport and flexible to install, making it very suitable for construction projects that require rapid deployment and frequent relocation.

Working Principle

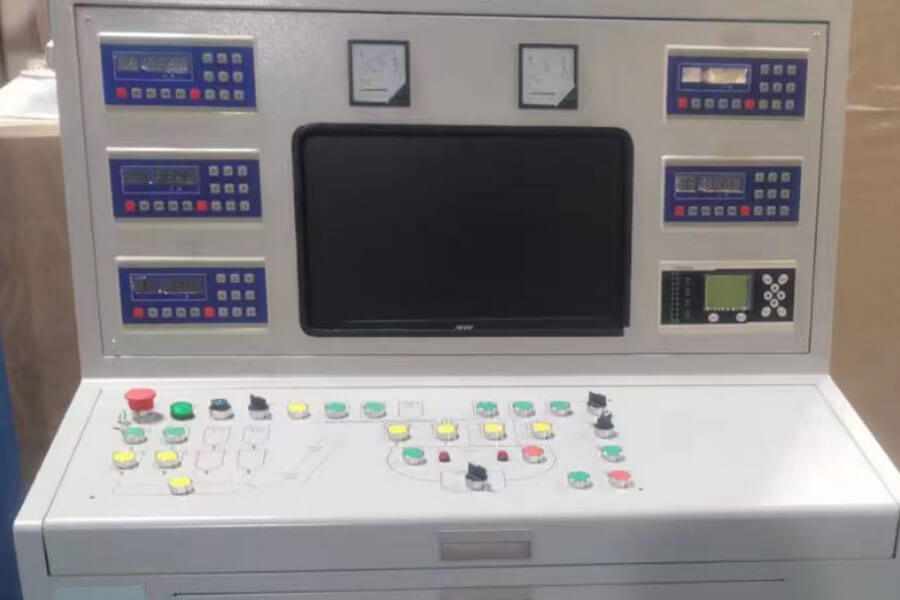

Mobile concrete mixing plant utilize automated control systems to manage the entire process, from raw material storage, precise batching, forced mixing, to concrete discharging. Raw materials are monitored by sensors and an automatic weighing system, batched to a set ratio. After mixing, they are evenly blended in a mixer, and finally delivered to the construction site via pumps or conveyor chutes. This highly automated process ensures production efficiency and consistent concrete quality.

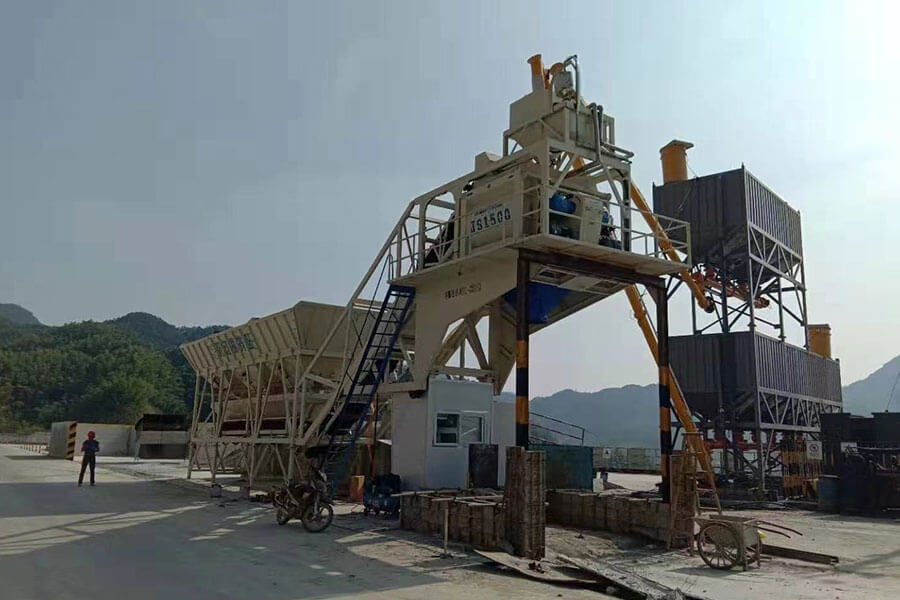

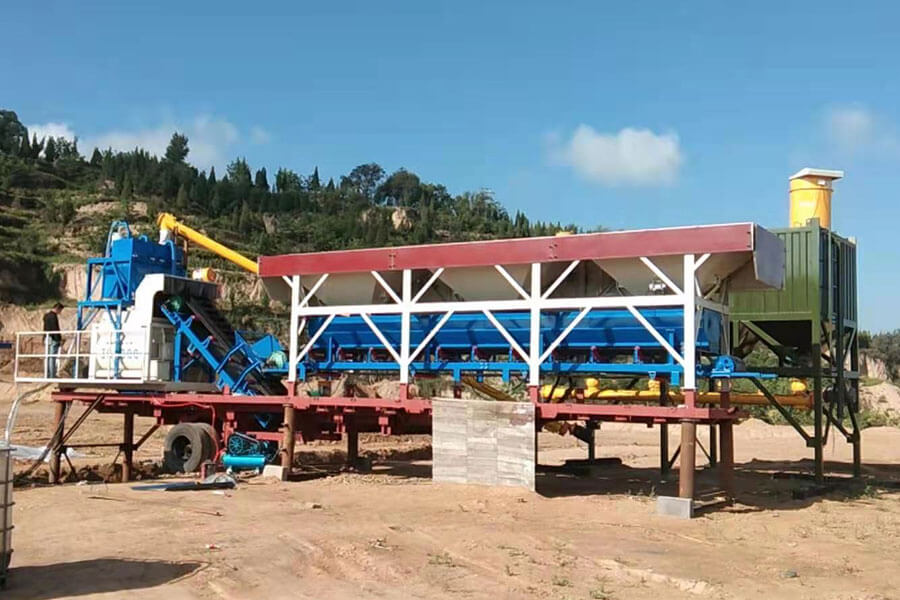

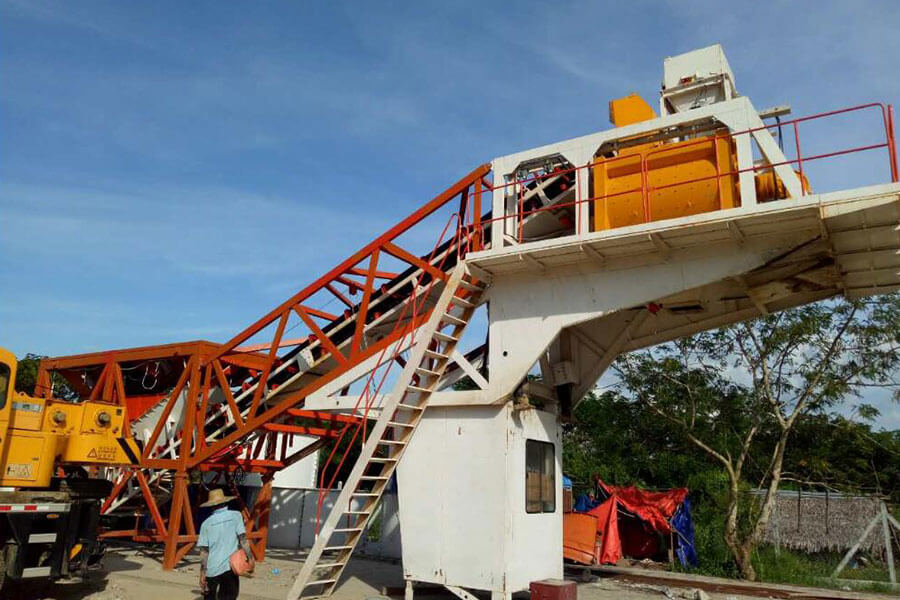

More on-site cases

Philippines Mobile Concrete Batching plant

Malaysia Mobile Concrete Batching Plant

Tanzania Mobile Concrete Batching plant

Product Parameters

Model	YHZM25-2	YHZM35-3	YHZM50-3	YHZM75-3	YHZM100-4
Theory capacity(m³/h)	25	35	50	75	100
Discharging height(mm)	1300
Total power(kw)	42	46	60	67	77.5
Total weight(t)	12	13	14	15	26
Model of Mixer	JZM500	JZM750	JZM1000	JZM1500	JZM2000
Mixing motor power(kw)	4.5*2	5.5*2	11*2	11*2	15*2
Discharging volume(L)	500	750	1000	1500	2000
Batching machine model	PLD800-2	PLD1200-3	PLD1600-3	PLD2400-3	PLD3200-4
Aggregate Storage(m³)	4×2	5.5×3	6×3	8.5×3	14×4
Max. Aggregate Dia(mm)	60/80
Cement weighing(kg)	500	500	560	900	1200
Water weighing(kg)	220	220	220	330	400
Additive weighing(kg)	30	30	30	40	50
Trailer Speed(km/h)	40-60	40-60	40-60	40-60	40-60
Optional cement silo(t)	50/100	50/100	50/100	50/100	50/100

Model	YHZS25-2	YHZS35-3	YHZS50-3	YHZS75-3	YHZS100-4
Theory capacity(m³/h)	25	35	50	75	100
Discharging height(mm)	1300	1300	1300	1300	1300
Total power(kw)	51.5	65	75	105	121.5
Total weight(t)	13	15	16	17	28

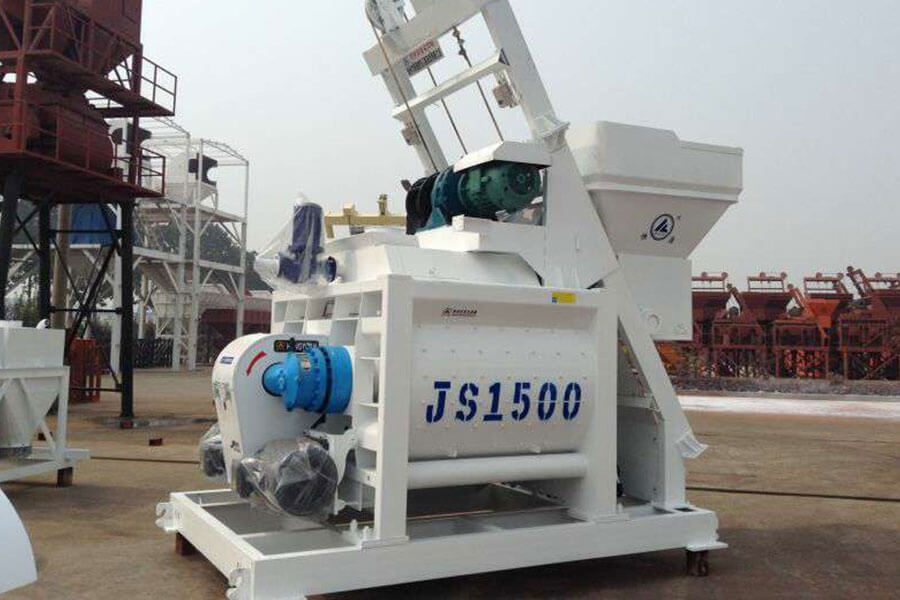

Model of Mixer	JS500	JS750	JS1000	JS1500	JS2000
Mixing motor power(kw)	18.5	30	18.5*2	30*2	37*2
Discharging volume(L)	500	750	1000	1500	2000
Batching machine model	PLD800-2	PLD1200-3	PLD1600-3	PLD2400-3	PLD3200-4
Aggregate Storage(m³)	4×2	5.5×3	6×3	8.5×3	14×4
Max. Aggregate Dia(mm)	60/80	60/80	60/80	60/80	60/80
Cement weighing(kg)	500	500	560	900	1200
Water weighing(kg)	220	220	220	330	400
Additive weighing(kg)	30	30	30	40	50
Trailer Speed(km/h)	40-60	40-60	40-60	40-60	40-60
Optional cement silo(t)	50/100	50/100	50/100	50/100	Oct-50

Model	YHZS25	YHZS35	YHZS50	YHZS75	YHZS100
Capacity(m³/h)	25	35	50	75	100
Mixing system	Twin-shaft concrete mixer
Discharging height(mm)	3800
Max. Dragging Speed(km/h)	40
After-sale service	Erection & commissioning, operator training
Warranty	18months
Concrete mixer model	JS500	JS750	JS1000	JS1500	JS2000
Aggregate batching machine	PLD800	PLD1200	PLD1600	PLD2400	PLD2400
Aggregate feediing way	Belt conveyor
Weighing system	Water, Cement, Fly-Ash, Additive
Weighing precision	±1%
Air system	Air compressor, etc
Dragging chassis	Drag rod & Leading steering, Front/Back axle & shock absorption, back wheel, Outrigger
Optional Items
Screw conveyor diameter & length(mm)	Ø219/273, L=8000/9000
Cement silo capacity(t)	50/100/150/200

Product Advantages

1.Compact and easy to move:
The modular design of the mobile concrete batching plant makes it easy to transport, quickly set up, and ready for operation in a short period of time.

2.High adaptability:
It is suitable for use in various environments, especially for projects requiring frequent relocation. Equipped with a wheeled chassis or trailer, it can be easily moved between construction sites.

3.Efficient and automated:
Equipped with an automated control system, it accurately batches concrete according to the set ratio, improving the efficiency and quality of concrete production.

4.Space-saving:
Due to its compact design, the mobile concrete batching plant can operate smoothly even on construction sites with limited space, making it suitable for projects of all sizes.

5.Cost-effective:
This low-cost machine is particularly suitable for small and medium-sized projects. Furthermore, its rapid deployment and efficient production save construction time and labor costs.

6.Stable Quality:
Standardized operating procedures and forced mixing ensure consistent concrete quality.

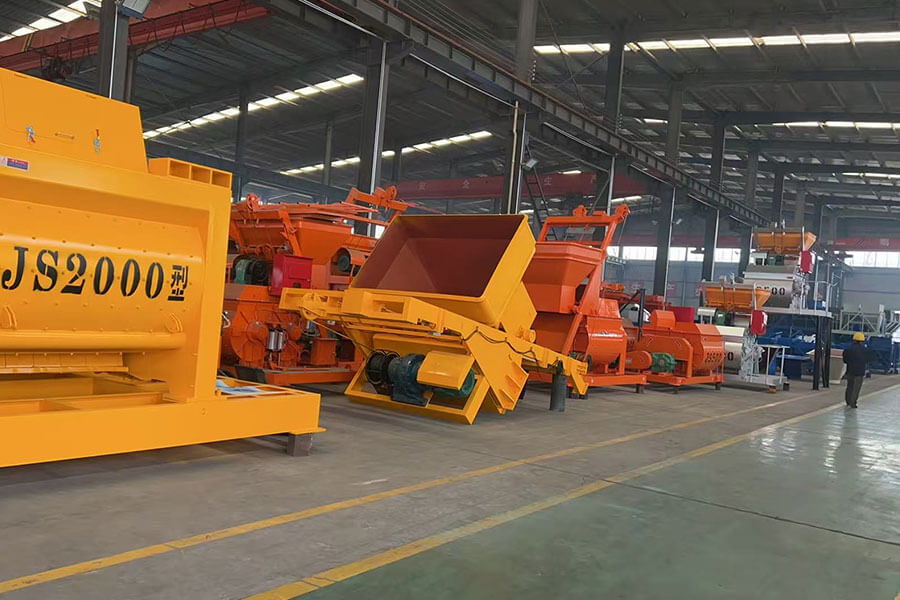

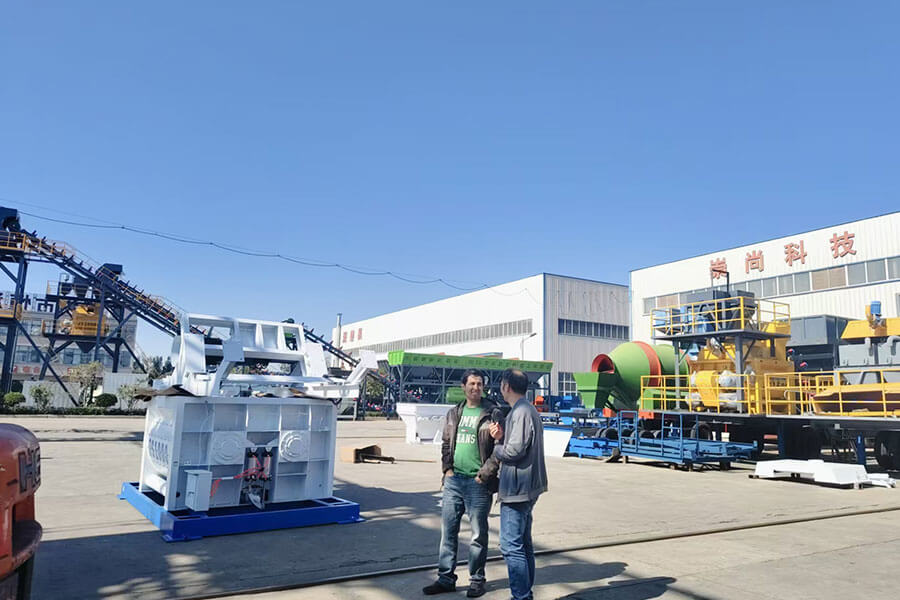

mobile Concrete Batching Plant Manufacturers

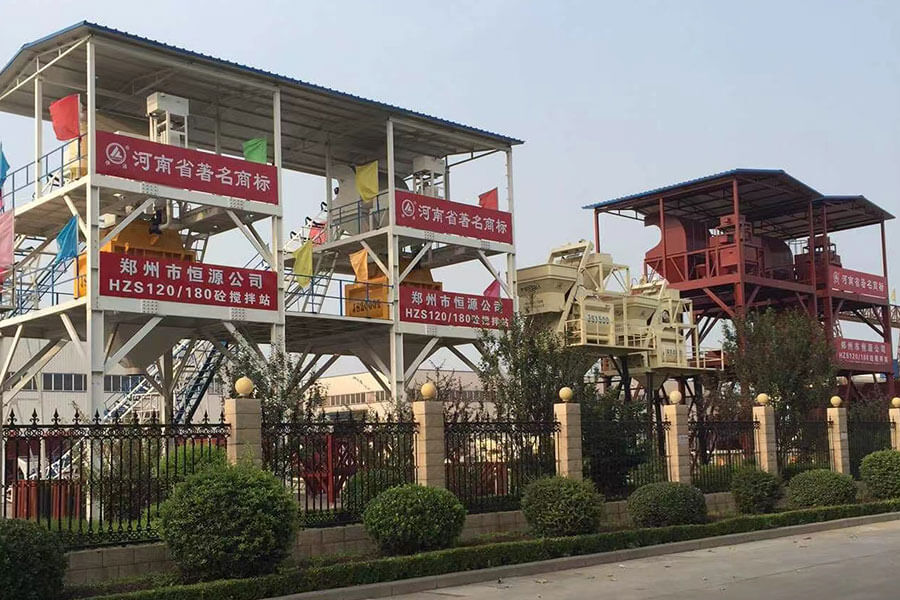

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. It not only has a professional technical team, but also has excellent machinery quality. Since its establishment, it has been committed to providing the most professional technical services and high-quality equipment to customers around the world.

Hengyuan RMC batching plant price

The following prices are for reference only. Exact prices will vary depending on your desired configuration. We can customize any type of mobile concrete batching plant to meet your needs.
If you would like more information about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and will provide you with the most suitable equipment for your specific concrete batching plant needs.

Types	Price range
YHZM drum type mobile concrete batching plant	$10,000-$200,000
YHZS1.3 twin-shaft mobile concrete batching plant	$15,000-$200,000
YHZS3.8 twin-shaft mobile concrete batching plant	$15,000-$200,000

Concrete production solutions

Henan Hengyuan’s mobile concrete batching plants are suitable for a variety of construction projects, such as highways, bridges, and tunnels, requiring large-scale concrete production. They are also suitable for residential, commercial, and industrial buildings. They are also suitable for municipal projects, such as urban roads, drainage systems, and public squares. Emergency projects are also suitable for projects with frequent site changes or tight deadlines.
