Stationary Concrete Batching Plant

Capacity: 60-240 m³/h

Types: belt-type, hopper-type, dry-mix, foundation-free, container-type

Scope of application: construction projects, roads, bridge projects, tunnels, concrete prefabrication plants, etc.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

A stationary concrete batching plant is a device used for centrally batching, weighing, and mixing various raw materials (such as cement, aggregates, water, and admixtures). It is widely used in places like concrete mixing plants and precast component plants. It can precisely control the proportions of various raw materials to ensure the quality and stability of concrete production.

Belt conveyor concrete batching plant

get quote

hopper type concrete batching plant

get quote

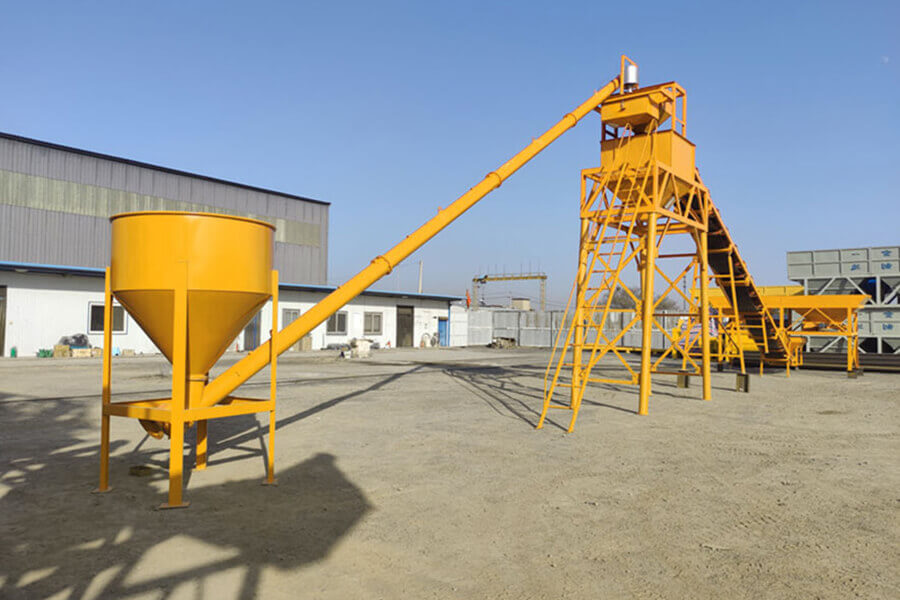

dry mix concrete batching plant

get quote

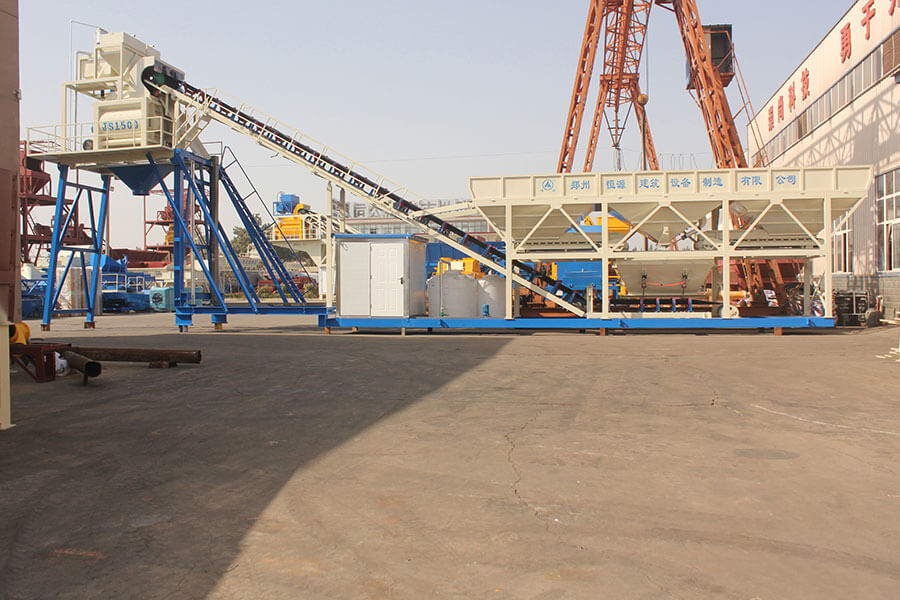

With-foundation concrete batching plant

get quote

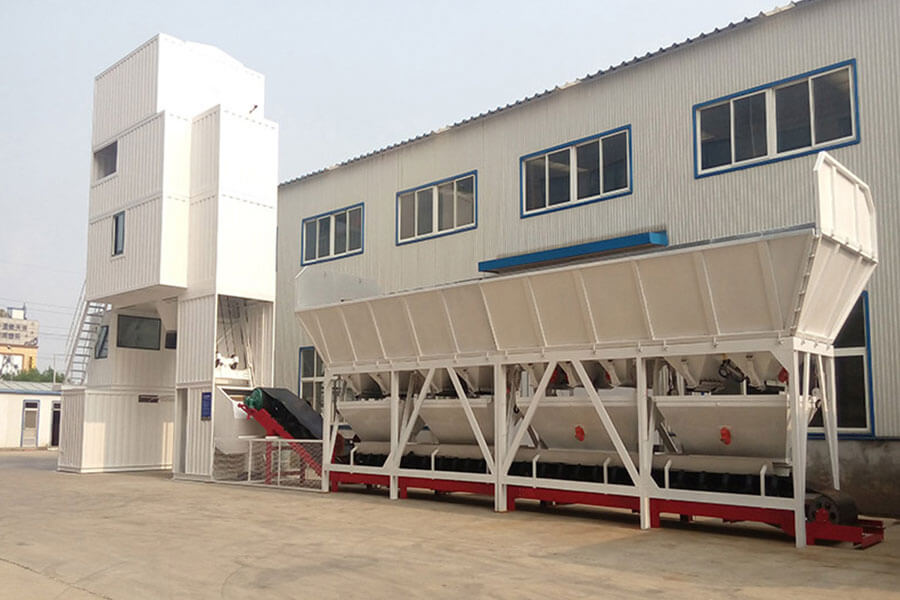

Containerized concrete batching plant

get quote

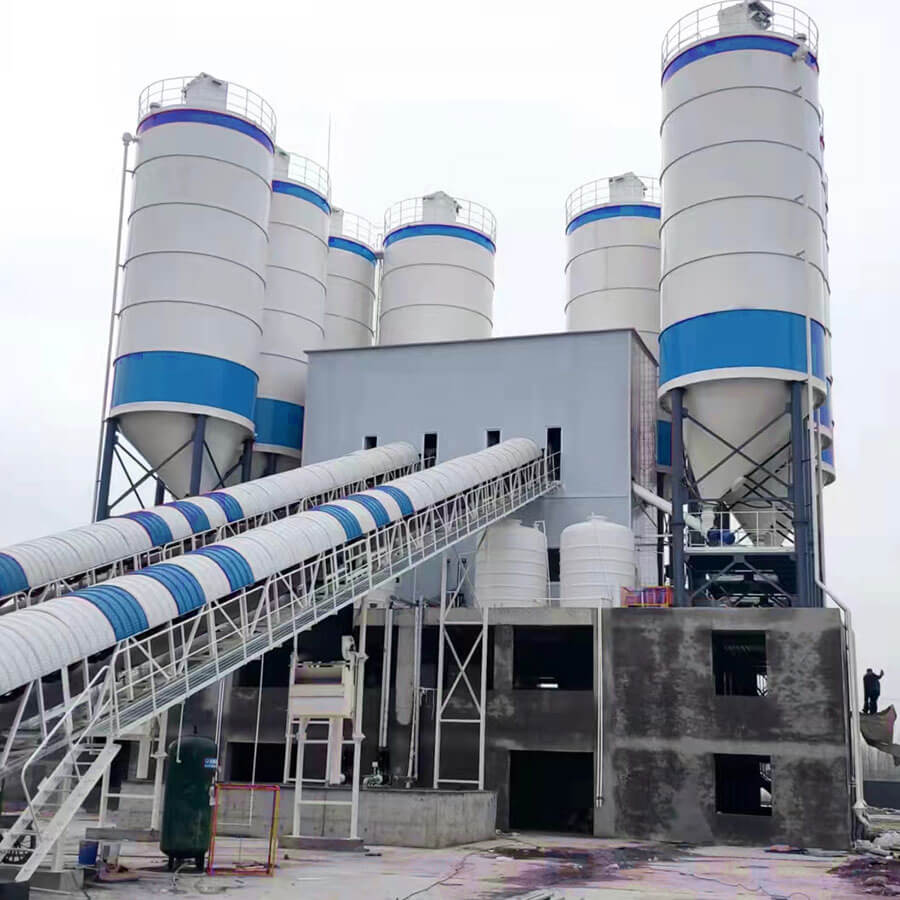

Product Structure

A ready mix concrete batching plant, through the coordination of multiple components including silos, batching systems, conveying systems, mixing systems, metering and control systems, electronic control systems, water systems, and dust collection systems, enables automated, precise, and efficient concrete production. This configuration can meet the needs of large-scale, long-term operations and is particularly suitable for projects such as building construction and road construction.

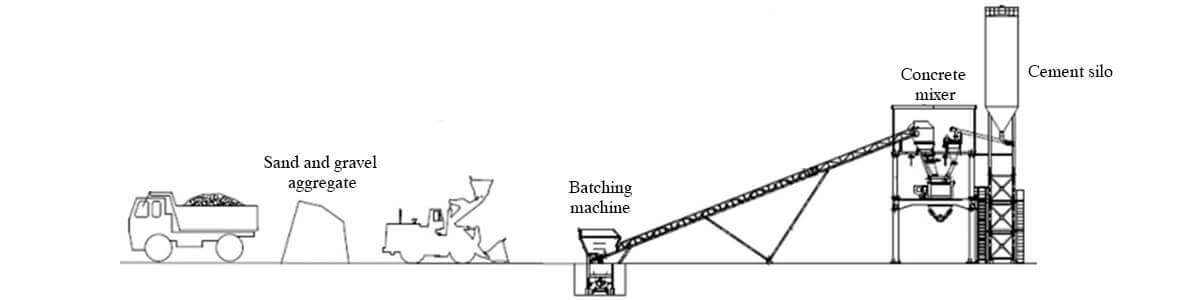

Working Principle

Stationary concrete mixing plants use automated systems to precisely weigh and deliver various raw materials according to specified mix ratios. Each material passes through the batching system and enters the mixer for mixing, ultimately producing the desired concrete. This process is typically highly automated, ensuring consistent and efficient concrete production.

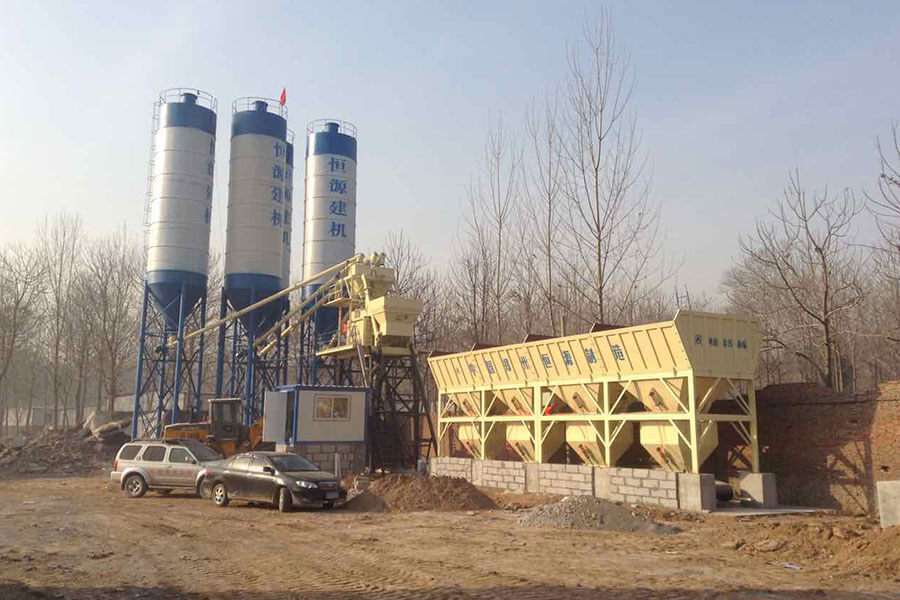

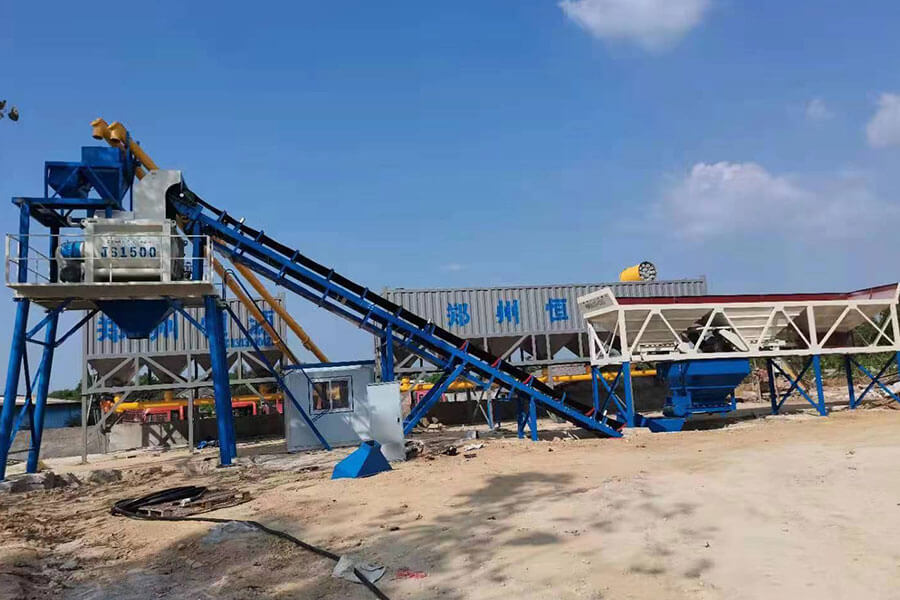

More on-site cases

Cambodian concrete batching plant

Ghana concrete batching plant

Oman concrete batching plant

Product Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240	HZS270
Capacity(m³/h)	60	90	120	180	240	270
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Incline belt conveyor
Discharging height(mm)	4200
After-sale service	Erection & commissioning, operator training
Warranty	18 months
Concrete mixer	JS1000	JS1500	JS2000	JS3000	JS4000	JS4500
Mixing cycle	≤60s
Aggregate batching machine(m³)	4 x 8	4 x 12	4 x 20	4 x 25	4 x 25	4 x 25
Weighing system	Water, Cement, Fly-Ash, Additive
Weighing precision	±1%
Air system	Air compressor, etc
Control system Type	Computer auto-control module ( PLC can be optional item)
Control panel board	Buttons, lamps, indicators, CCTV, etc
Electric components	China CHINT, SCHNEIDER
Control room	With Air conditioner and chair
Documentation	Foundation layout, Electrical diagram, Operation manual

Model	HZS25	HZS35	HZS50	HZS75	HZS100
Capacity(m³/h)	25	35	50	75	100
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Bucket ( Skip hopper )
Discharging height(mm)	3800-4000
After-sale service	Erection & commissioning, operator training
Warranty	18 months
Concrete mixer	JS500	JS750	JS1000	JS1500	JS2000
Mixing cycle	72S
Aggregate batching machine	PLD800	PLD1200	PLD1600	PLD2400	PLD3200
Weighing system	Water, Cement, Additive
Weighing precision	±1%
Air system	Air compressor, etc
Control system Type	Computer auto-control module ( PLC can be optional item)
Control panel board	Buttons, lamps, indicators, etc
Electric components	China CHINT, German SCHNEIDER (option)
Control room	With Air conditioner
Documentation	Foundation layout, Electrical diagram, Operation manual

Model	HZS60D	HZS90D	HZS120D	HZS160D	HZS200D
Theoretical productivity(m³/h)	60	90	120	180	200
Batching machine model	PLD1600	PLD2400	PLD2400	PLD3200	PLD4800
Feedig mode	Belt Conveyor
Aggregate Batching accuracy	≤±2%	≤±2%	≤±2%	≤±2%	≤±2%
Water Batching accuracy	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%
Cement Batching accuracy	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%
Additive Batching accuracy	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%
Discharging height(mm)	3800	4000	4000	4200	4200

Model	FHZS60	FHZS90	FHZS120	FHZS180
Capacity(m³/h)	60	90	120	180
Mixer	Twin shaft concrete mixer
Aggregate feeder	Belt feeding
Discharge height(mm)	4000
After sales service	Erection & commissioning, operator training
warranty	18 months
Concrete mixer	JS1000	JS1500	JS2000	JS3000
Mixing time	30S
Batching machine	PLD1600	PLD2400	PLD3200	PLD4800
Weighing system	Water/cement/additive/flyash
Weighing precision	±1%
Air system	Air compressor and accessories,etc
Control system	Fully automatic control
Control room	Insulation type with air conditioner
Electric components	China CHINT,SCHNEIDER

Model	HZS60	HZS90	HZS120	HZS180
Theoretical productivity(m³/h)	60	90	120	180
Type of concrete mixer	JS1000	JS1500	JS2000	JS3000
Mixing motor power(kw)	2×18.5	2×30	2×37	2×55
Cycle period(s)	60
Volume of mixer(L)	1000	1500	2000	3000
Total power of the plant(kw)	150	164	210	268
Volume of concrete mixer(m³)	1	1.5	2	3
Type of batching machine	PLD1600	PLD2400	PLD3200	PLD4800
Aggregate Batching accuracy	≤±2%
Water Batching accuracy	≤±1%
Cement Batching accuracy	≤±1%
Additive Batching accuracy	≤±1%
Discharging height(mm)	4200

Product Advantages

1.High-Precision Batching:
Using electronic weighing and an automatic control system, fixed concrete batching plants ensure the precise mix ratio of each batch of concrete, ensuring the concrete’s strength and stability.

2.High Degree of Automation:
Most work steps can be automated, reducing manual intervention and improving production efficiency and work safety.

3.Environmentally Friendly Design:
Batching plants are typically equipped with dust removal and noise control systems to reduce the environmental impact of dust pollution and noise.

4.Easy Operation:
Batching plants are equipped with modern, easy-to-understand control systems, allowing users to monitor production status in real time via a computer or touch screen.

5.Flexible Adaptability:
Fixed concrete batching plants can adjust the mix ratio to meet production needs and accommodate different types of concrete production.

6.High Adaptability:
Fixed concrete batching plants can accommodate concrete production of all sizes and are suitable for large-scale infrastructure projects, building construction, and precast component production.

Concrete Batching Plant Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. It not only has a professional technical team, but also has excellent machinery quality. Since its establishment, it has been committed to providing the most professional technical services and high-quality equipment to customers around the world.

Hengyuan stationary concrete batching plant price

The following prices are for reference only. Exact prices will vary depending on your desired configuration. We can customize any type of concrete batching plant to meet your needs.
If you would like more information about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and will provide you with the most suitable equipment for your specific concrete batching plant needs.

Types	Price range
Conveyor Belt type concrete batching plant	$15,000-$500,000
Hopper type concrete batching plant	$15,000-$300,000
Dry mix concrete batching plant	$15,000-$100,000
With-foundation concrete batching plant	$20,000-$500,000
Container type concrete batching plant	$30,000-$500,000

Concrete Plant solutions

The stationary concrete batching plant equipment manufactured by Henan Hengyuan is suitable for various construction projects, such as large-scale construction projects and infrastructure development, urban construction (high-rise buildings, bridges), road/highway projects, emergency repair projects, etc.
