Henan Hengyuan
Twin Shaft Concrete Mixer for sale
Discharge capacity: 500-3000 L
Capacity: 25-150 m³/h
Scope of application:Concrete mixing for industrial and civil construction projects such as roads, bridges, water conservancy projects, and docks.
Twin-shaft concrete mixers are a common type of concrete mixing equipment, widely used on construction sites, in large-scale infrastructure development, and in the production of precast concrete parts. Their structure features two horizontally positioned mixing shafts, which enable efficient and uniform mixing.
What is a twin-shaft concrete mixer?
A twin-shaft concrete mixer is a machine that mixes cement, sand and gravel aggregate, and water to create a concrete mixture. It has the dual advantages of being able to operate independently as a single unit and being able to form a simple concrete mixing station when combined with a PLD series batching unit. It can provide a supporting host for a concrete mixing station and is suitable for all types of large, medium, and small precast component plants, as well as industrial and civil construction projects such as highways, bridges, water conservancy projects, and docks. It can mix dry hard concrete, plastic concrete, fluid concrete, lightweight aggregate concrete, and various mortars. It is a high-efficiency model with a very wide range of applications.
How should you choose a twin-shaft concrete mixer?
Henan Hengyuan offers a variety of twin-shaft concrete mixers of all sizes, allowing you to choose the appropriate model to suit your project needs.
JS-500 twin shaft concrete mixer for sale
Model: JS500
Productivity : ≥25 m³/h
Power: 18.5 kw
Weight: 4000 kg
Discharge Capacity: 500 L
Blade speed (r/min): 35
JS-750 twin shaft concrete mixer for sale
Model: JS750
Productivity : ≥37.5 m³/h
Power: 30 kw
Weight: 5500 kg
Discharge Capacity: 750 L
Blade speed (r/min): 31
JS-1000 twin shaft concrete mixer for sale
Model: JS1000
Productivity : ≥50 m³/h
Power: 37 kw
Weight: 8700 kg
Discharge Capacity: 1000 L
Blade speed (r/min): 25.5

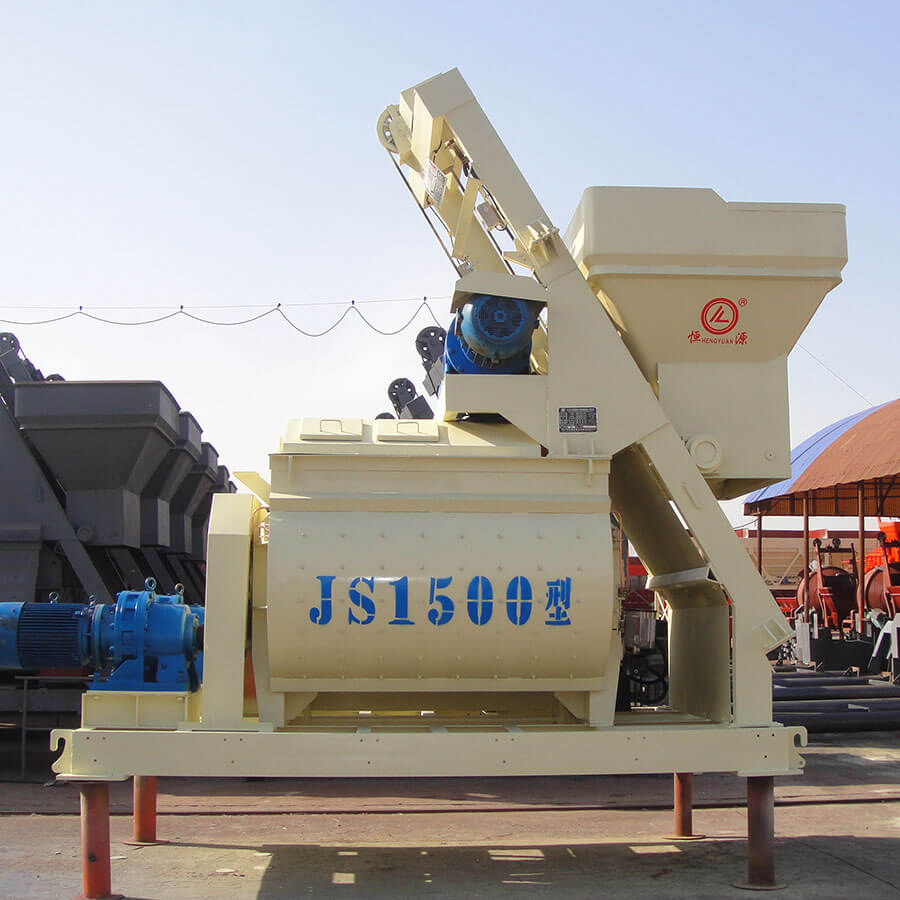

JS-1500 twin shaft concrete mixer for sale
Model: JS1500
Productivity : ≥75 m³/h
Power: 18.5 kw
Weight: 11130 kg
Discharge Capacity: 1500 L
Blade speed (r/min): 25.5
JS-2000 twin shaft concrete mixer for sale
Model: JS2000
Productivity : ≥120 m³/h
Power: 22 kw
Weight: 15000 kg
Discharge Capacity: 2000 L
Blade speed (r/min): 23

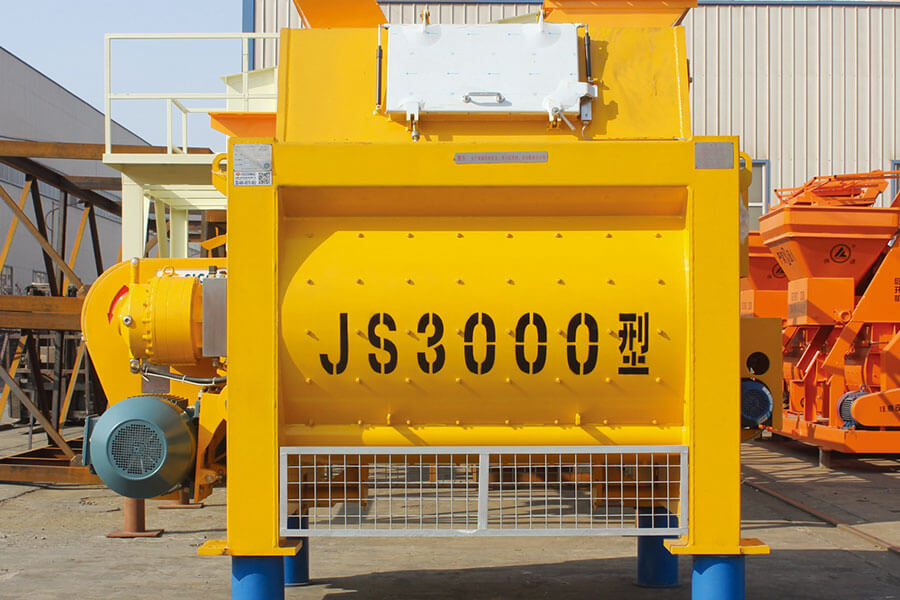

JS-3000 twin shaft concrete mixer for sale
Model: JS3000
Productivity : ≥150 m³/h
Power: 30 kw
Weight: 20000 kg
Discharge Capacity: 3000 L
Blade speed (r/min): 28
structure of twin shaft concrete mixer
The twin-shaft mixing drum is the core component of the mixer, consisting of two horizontally positioned mixing shafts equipped with multiple sets of mixing blades. The rotating blades forcefully mix the raw materials, ensuring uniform concrete.
The drive system is typically powered by an electric motor or diesel engine, which drives the mixing shaft through a speed reducer. These power systems are typically energy-efficient, ensuring long-term operation.
The feeding system includes the system for feeding materials such as cement, sand, and admixtures. Silos and feeding devices are typically included to facilitate the precise addition of raw materials.
The discharging system includes a concrete discharge device. After mixing, the concrete is automatically discharged through a discharge gate or screw conveyor.
The control system is equipped with an automated control system that adjusts the mixing time, speed, and discharge as needed to ensure the correct mix ratio and quality of the concrete.
The drive system is typically powered by an electric motor or diesel engine, which drives the mixing shaft through a speed reducer. These power systems are typically energy-efficient, ensuring long-term operation.
The feeding system includes the system for feeding materials such as cement, sand, and admixtures. Silos and feeding devices are typically included to facilitate the precise addition of raw materials.
The discharging system includes a concrete discharge device. After mixing, the concrete is automatically discharged through a discharge gate or screw conveyor.
The control system is equipped with an automated control system that adjusts the mixing time, speed, and discharge as needed to ensure the correct mix ratio and quality of the concrete.

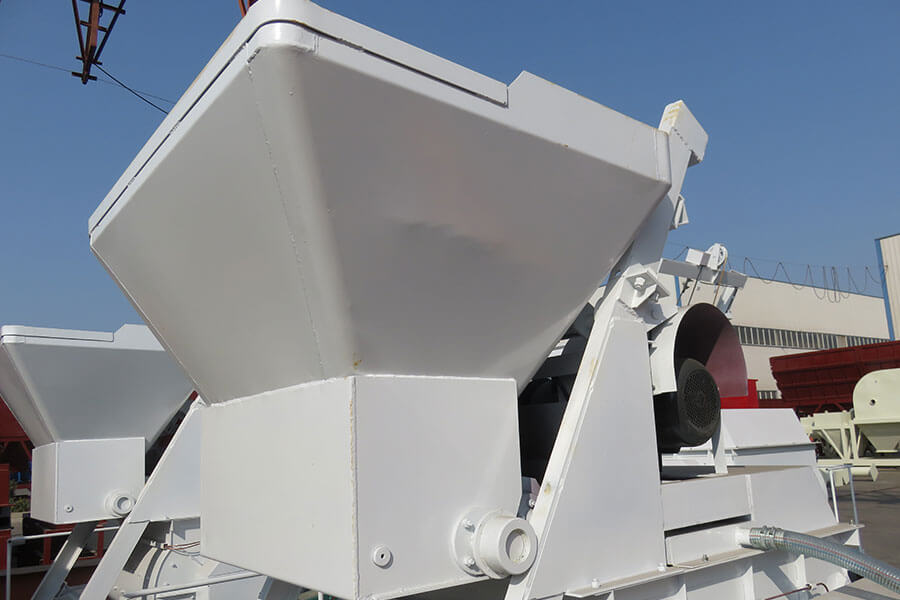

hopper

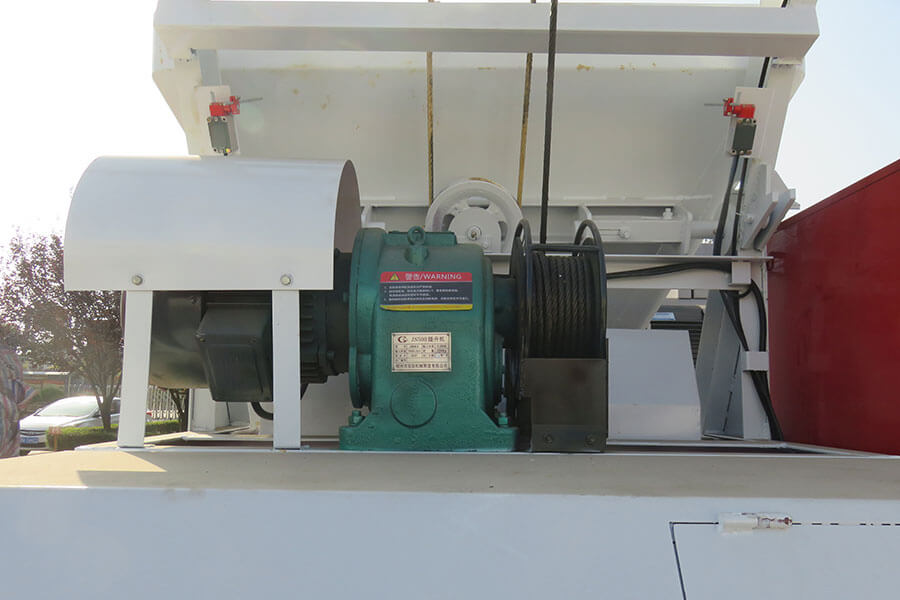

Lifting device

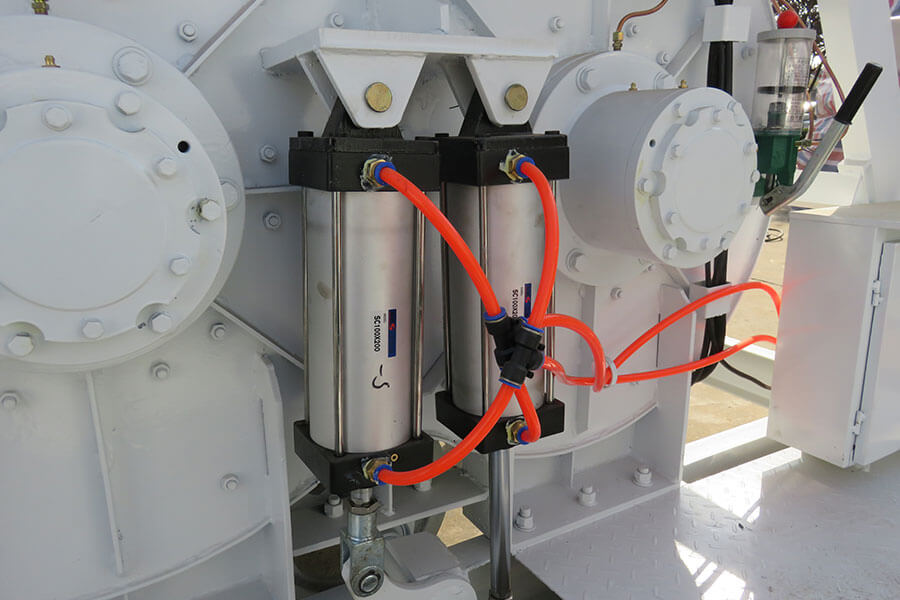

cylinder
Electrical control cabinet
Working Principle of twin-shaft concrete mixer
Raw Material Input: Cement, sand, gravel, admixtures, and other raw materials enter the mixing drum through the feed port according to the set mix ratio.
Mixing Process: When the mixer is started, the two horizontal shafts begin to rotate. The blades on the shafts turn and stir the raw materials, ensuring a uniform mixture of cement, sand, and gravel. The dual-shaft forced mixing system provides a more uniform mixing effect and is more efficient than a single-shaft mixer. It is particularly suitable for mixing dry, hard, or high-viscosity concrete.
Discharging: Once the concrete is mixed, the mixer discharges the concrete through a discharge gate or discharge system onto a conveyor belt or concrete pumping system for subsequent construction.
Automatic Control: The twin-shaft mixer is equipped with an intelligent control system that monitors and adjusts various parameters during the mixing process in real time to ensure consistent concrete quality.
Mixing Process: When the mixer is started, the two horizontal shafts begin to rotate. The blades on the shafts turn and stir the raw materials, ensuring a uniform mixture of cement, sand, and gravel. The dual-shaft forced mixing system provides a more uniform mixing effect and is more efficient than a single-shaft mixer. It is particularly suitable for mixing dry, hard, or high-viscosity concrete.
Discharging: Once the concrete is mixed, the mixer discharges the concrete through a discharge gate or discharge system onto a conveyor belt or concrete pumping system for subsequent construction.
Automatic Control: The twin-shaft mixer is equipped with an intelligent control system that monitors and adjusts various parameters during the mixing process in real time to ensure consistent concrete quality.

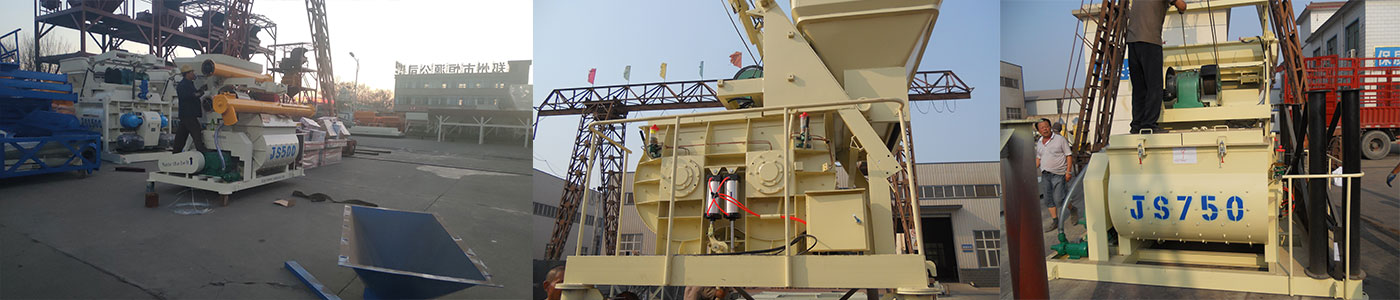

Our customer case
Nepal twin shaft concrete mixer
Madagascar twin shaft concrete mixer
Lebanese twin shaft concrete mixer
Product Parameters
Product Advantages
1.Excellent Mixing Performance
The twin-shaft design ensures thorough mixing of concrete, preventing stratification and uneven mixing, making it particularly suitable for projects requiring high-quality concrete.
The twin-shaft design ensures thorough mixing of concrete, preventing stratification and uneven mixing, making it particularly suitable for projects requiring high-quality concrete.
2.High Production Efficiency
Due to its forced mixing characteristics, large quantities of concrete can be mixed in a short period of time, making it suitable for high-intensity, high-efficiency production.
Due to its forced mixing characteristics, large quantities of concrete can be mixed in a short period of time, making it suitable for high-intensity, high-efficiency production.
3.Wide Application
It is suitable for various concrete formulations, including dry, hard, and wet concrete, as well as concrete of varying specifications.
It is suitable for various concrete formulations, including dry, hard, and wet concrete, as well as concrete of varying specifications.
4.Long Service Life
Twin-shaft mixers are typically constructed of high-strength materials, resulting in a long service life and low maintenance costs.
Twin-shaft mixers are typically constructed of high-strength materials, resulting in a long service life and low maintenance costs.
5.Stable Structure
The multi-layer sealed structure ensures stable and efficient operation. The machine’s internal components are tightly integrated, ensuring risk-free operation.
The multi-layer sealed structure ensures stable and efficient operation. The machine’s internal components are tightly integrated, ensuring risk-free operation.
6.Fully Automatic Control
Our proprietary control system allows for manual or remote control, ensuring automated operation and labor savings.
Our proprietary control system allows for manual or remote control, ensuring automated operation and labor savings.
Hengyuan twin shaft concrete mixer machine price
The following prices are for reference only. Specific prices will vary depending on your desired configuration. We can customize any type of concrete mixer to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.
| Types | Price range |
| Twin shaft concrete mixer | $15,000-$50,000 |
| Drum concrete mixer | $8,000-$50,000 |
| Planetary concrete mixer | $20,000-$60,000 |
twin shaft concrete mixer Manufacturers
Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and sophisticated equipment, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its establishment. Our concrete mixers are known for their stable and efficient operation and are widely used in various construction projects, significantly improving the quality and efficiency of concrete construction.

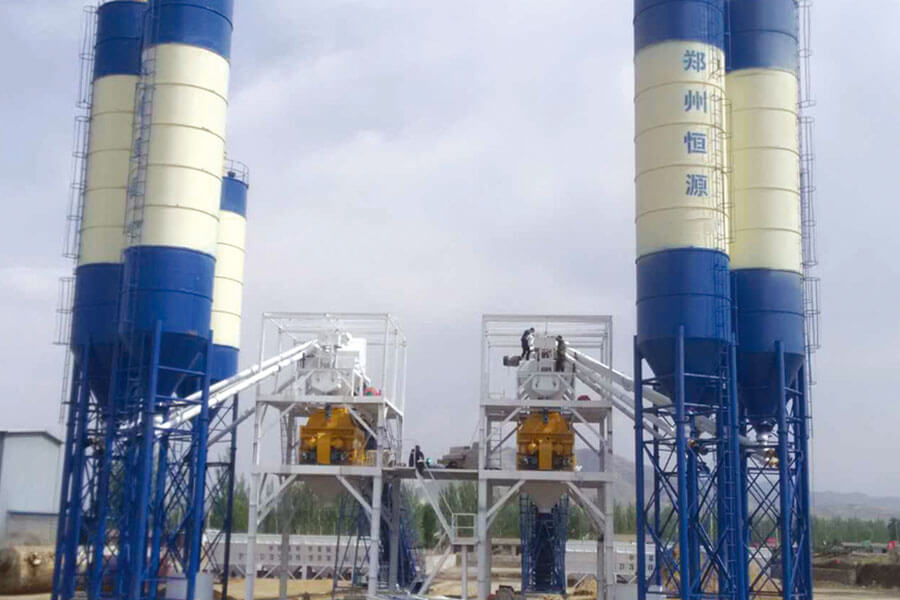

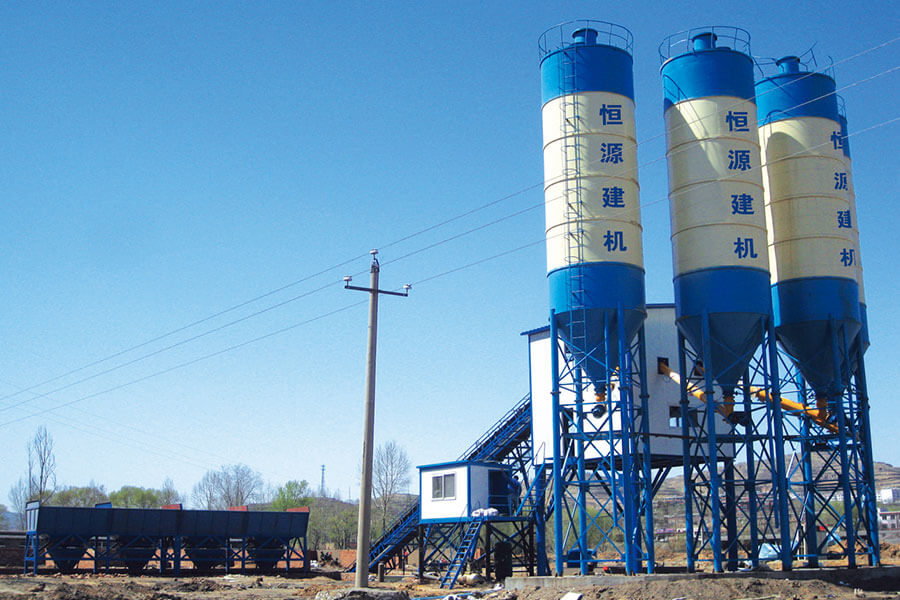

Concrete mixing solutions
Twin-shaft concrete mixers, with their high efficiency, uniformity, and wide range of applications, have become crucial mixing equipment in the construction industry. Whether mixing high-strength concrete or large-scale construction projects, twin-shaft concrete mixers provide high-quality mixing services, ensuring smooth project execution.
Large construction projects
Medium construction projects
Small construction projects
Why choose Henan Hengyuan Concrete mixers?
As a professional construction machinery manufacturer, Henan Hengyuan boasts not only a professional technical team but also excellent product quality.
1.Based on your production needs, we will provide you with the most professional plant construction solutions and plans.
2.Once the plan is finalized, our technical engineers will draw up professional site plans and equipment layout diagrams for you
3.Within the established production cycle, we will manufacture the necessary machinery and equipment for you and deliver it to the port to meet your production needs.
4.If you require remote machine installation guidance or on-site engineer guidance, we can provide you with professional installation engineers.
5.If you encounter any problems during production, you can contact us at any time for resolution.
2.Once the plan is finalized, our technical engineers will draw up professional site plans and equipment layout diagrams for you
3.Within the established production cycle, we will manufacture the necessary machinery and equipment for you and deliver it to the port to meet your production needs.
4.If you require remote machine installation guidance or on-site engineer guidance, we can provide you with professional installation engineers.
5.If you encounter any problems during production, you can contact us at any time for resolution.
