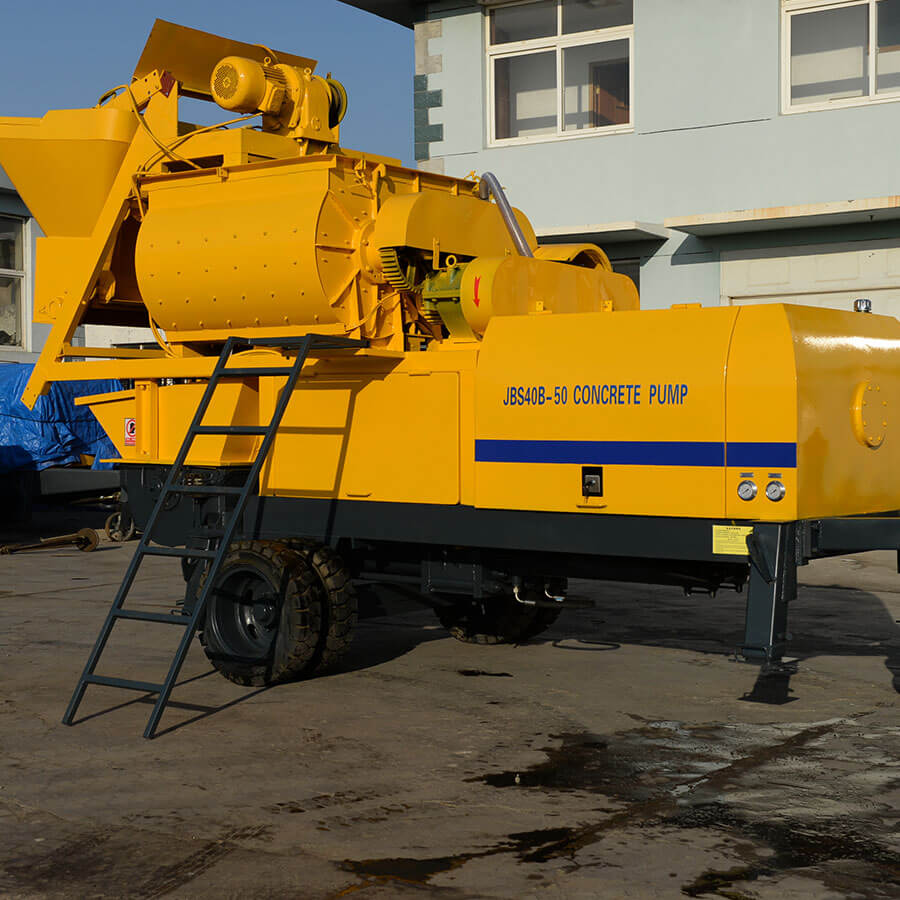

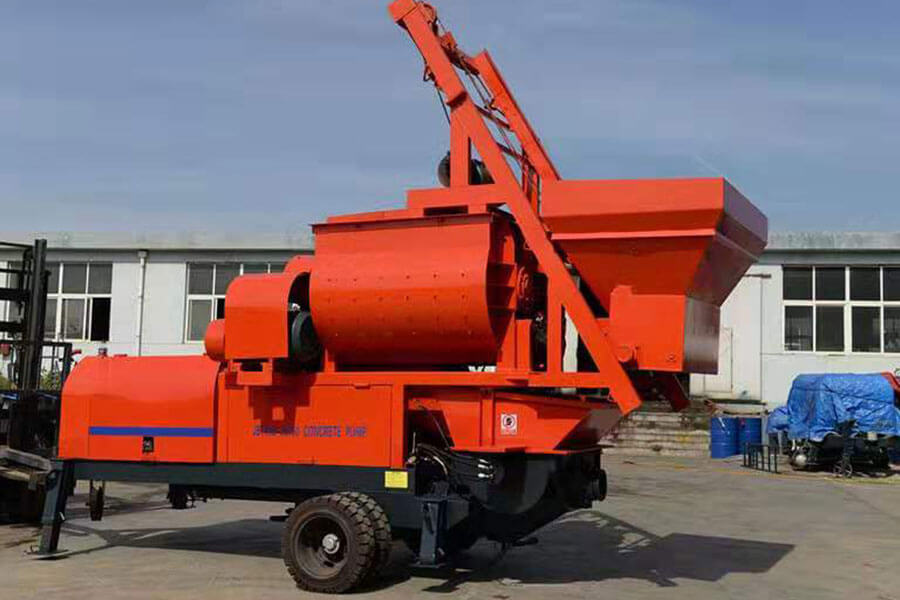

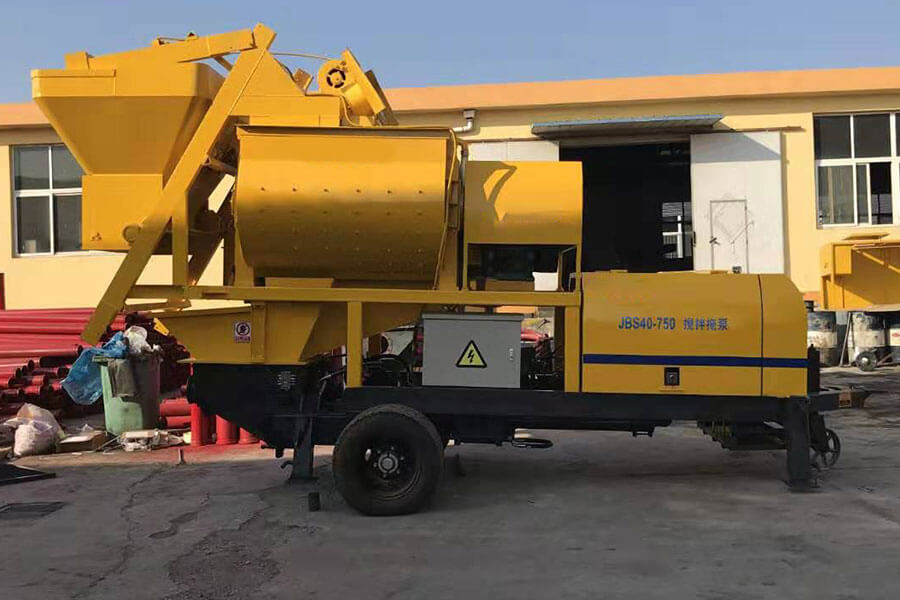

Twin Shaft Concrete Mixer Pump

Twin shaft concrete mixing pump, professional concrete mixing pump manufacturer - Henan Hengyuan

The twin-shaft concrete mixer pump is a construction equipment that integrates concrete mixing and pumping functions. It uses a twin-shaft mixing system to ensure more uniform concrete mixing, and at the same time combines with the pumping system to efficiently transport the mixed concrete to the construction site.

Capacity: 40 m³/h

Diesel engine power: 45/82/129 kw

Scope of application: Construction projects, roads, bridges, tunnels, infrastructure and other projects.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

Twin-shaft concrete mixer pumps, with their powerful twin-shaft mixing and efficient pumping systems, provide high-quality concrete mixing and transportation. They are widely used in high-rise buildings, tunnels, water conservancy projects, bridge construction, and other fields. Their superior mixing performance, powerful pumping capacity, and high adaptability make them a vital piece of equipment in modern construction and engineering projects.

Other types

Pan Concrete Mixer Pump

get quote

Concrete Mixing pump with batching machine

get quote

Product Structure

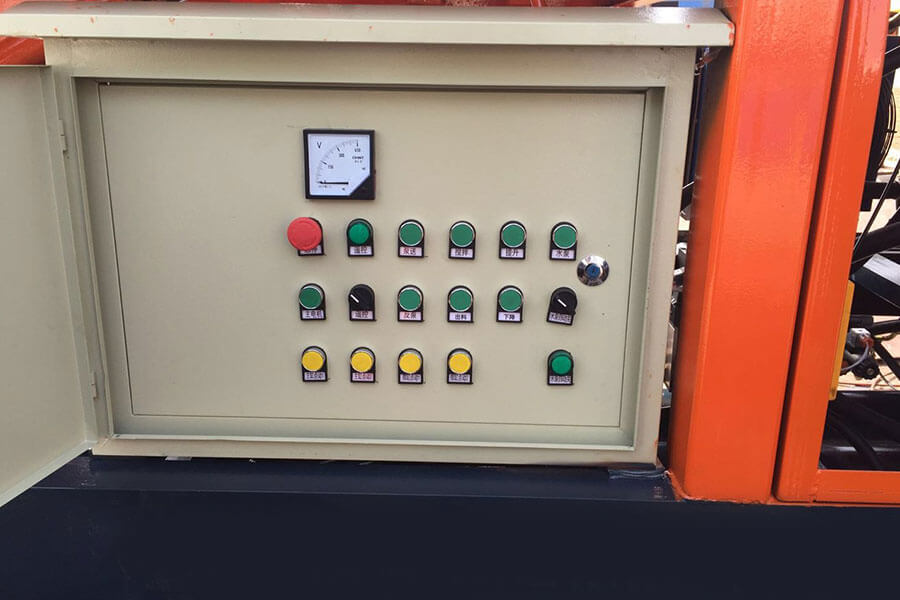

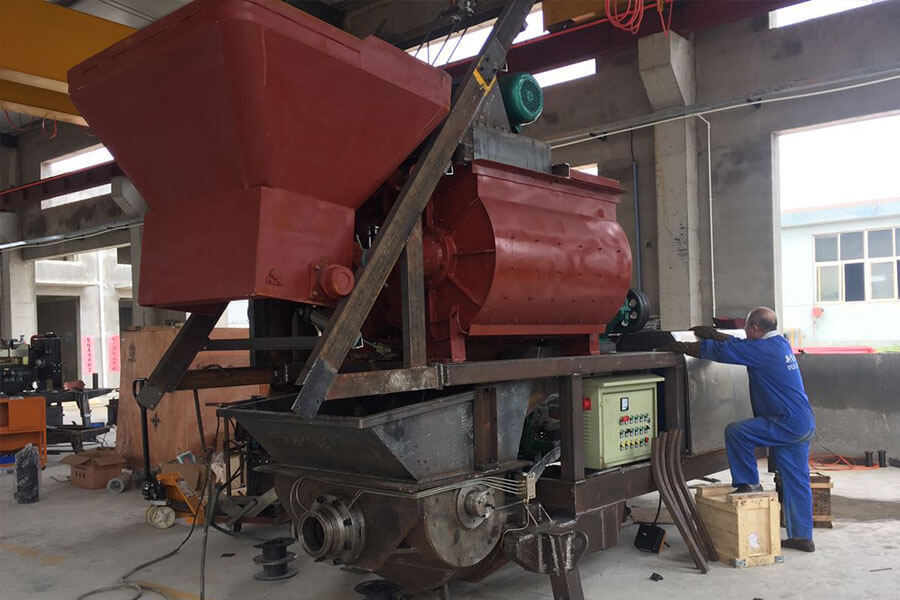

A twin-shaft concrete mixer pump is a device that combines concrete mixing and pumping functions, boasting a highly sophisticated structure. Its main components include a twin-shaft mixer, pumping system, power system, control system, chassis, and frame.

Working Principle

Twin-shaft concrete mixer pumps combine concrete mixing and pumping functions. The twin-shaft mixer evenly mixes concrete, ensuring high-quality mixing. A piston or plunger pump then delivers the mixed concrete to the construction site. Operators can adjust pumping pressure and flow in real time to adapt to varying environmental requirements, ensuring an efficient and stable construction process.

More on-site cases

Canadian concrete mixing pump

East Timor concrete mixing pump

Saudi concrete mixing pump

Product Parameters

Model		Pump with twin shaft mixer
Concrete pump	Theoretical capacity(m³/h)	40
	Max. concrete pumping pressure(Mpa)	10
	Power type	Motor
	Motor/engine(kw)	45/82/129
	Main oil pump	Kawasaki
	Main oil pump capacity(ml/min)	112
	Theoretical delivery distance(m)	160/500
	Hopper capacity(L)	550
	Max. aggregate diameter(mm)	30/40
	Inside diameter of delivery pipe(mm)	Φ150
	Loading capacity of the mixer(L)	720
	Unloading capacity of the mixer(L)	450
	Mixing motor(kw)	5.5
	Hoisting motor(kw)	4.5
	Dimension(LxWxH)(mm)	4800x2200x2800
	Total weight(kg)	5500
Concrete mixer	Mixer	JS750/1000
	Capacity(m³/h)	25/35
	Mixer type	Forced mixer

Product Advantages

1.Uniform Mixing
The twin-shaft mixing system ensures more uniform concrete mixing, avoiding the uneven mixing associated with single-shaft mixing, and improving concrete quality.

2.Efficient Pumping
The twin-shaft concrete mixer pump’s pumping system operates stably at high pressures, adapting to diverse construction environments and ensuring rapid concrete transportation.

3.High Adaptability
The equipment can adapt to various construction sites, operating stably in areas with both sufficient and limited power. Diesel-powered pumping equipment is particularly valuable in areas without power.

4.Labor Savings
Mechanized mixing and pumping reduce manual labor, improving construction efficiency and reducing labor intensity.

5.Wear-Resistant Components
The S-valve is made of wear-resistant cast iron, and the mixing blades are made of wear-resistant alloy, offering advantages such as high pressure resistance and wear resistance.

6.Save time and labor
Combining mixing and pumping in one unit reduces manual operation and equipment handling, saving time and labor costs on the construction site and improving construction efficiency.

twin shaft concrete mixer pump Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and superior equipment, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its establishment. Our twin-shaft concrete mixer pumps are widely used in various construction projects, significantly improving the quality and efficiency of concrete construction.

Hengyuan twin shaft concrete mixer pump price

The following prices are for reference only. Specific prices will vary depending on your desired configuration. We can customize any type of concrete mixer pump to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.

Types	Price range
JBS Motor powered concrete mixing pump	$20,000-$40,000
JBTS Diesel powered concrete mixing pump	$25,000-$40,000
Twin shaft concrete mixing pump	$20,000-$40,000
Pan concrete mixing pump	$23,000-$45,000
Concrete mixing pump with batching machine	$25,000-$50,000

Concrete mixing and pumping solutions

Twin-shaft concrete mixer pumps are widely used in various construction and engineering projects, especially in complex construction environments that require efficient and stable concrete delivery. Examples include concrete pouring in high-rise building construction, concrete pumping in bridge construction, and concrete mixing and pumping in tunnel construction, road construction, underground engineering, and infrastructure.
