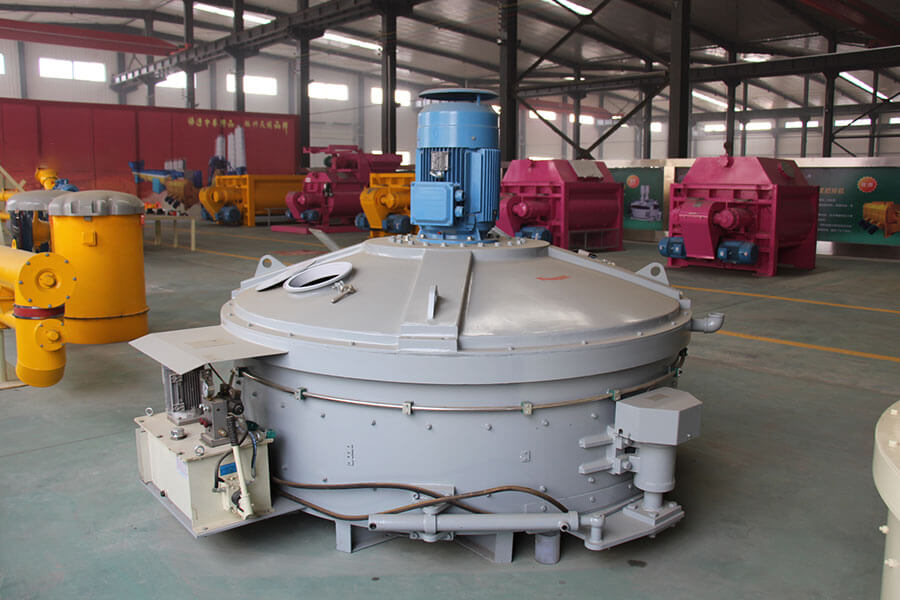

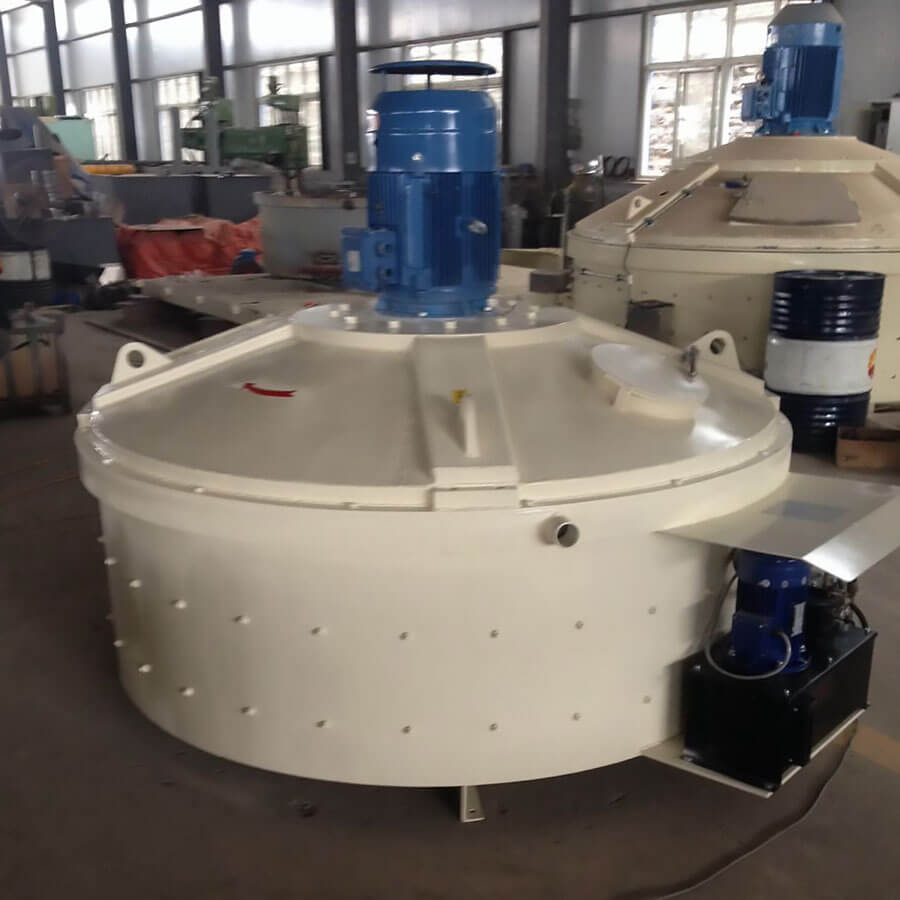

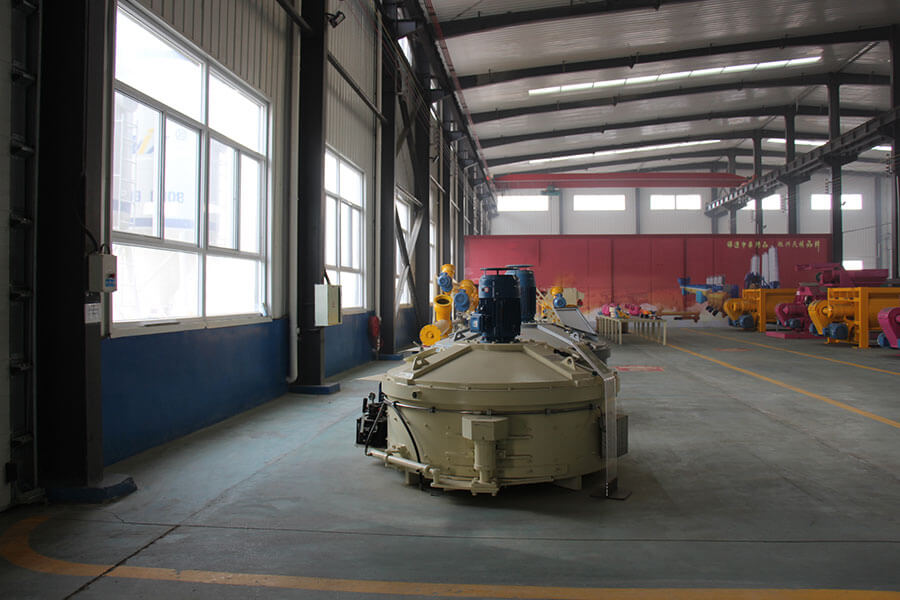

Vertical Shaft Planetary Concrete Mixer

The vertical planetary concrete mixer is a highly efficient concrete mixing machine, particularly suitable for concrete mixing tasks requiring high uniformity and precision. Its unique structure and operating principle make it widely used in the production of high-performance concrete, especially in large-scale construction projects, bridge construction, airport runways, and other projects.

Discharge capacity: 500-3000 L

Motor power: 18.5-37 KW

Scope of application:Concrete production in large and medium-sized construction, hydropower, roads, ports, bridges, airports and other fields.

get free quote

send email

Product Introduction

Product Structure

Working Principle

Product Parameters

Product Advantages

Product Introduction

Vertical planetary mixers are core equipment for various civil engineering construction sites, ready-mixed concrete batching plants, and the block and precast component industries. These mixers utilize both revolution and rotation, resulting in complex motion paths, intense mixing, high efficiency, and excellent homogeneity, making them ideal for mixing high-quality concrete.

more types

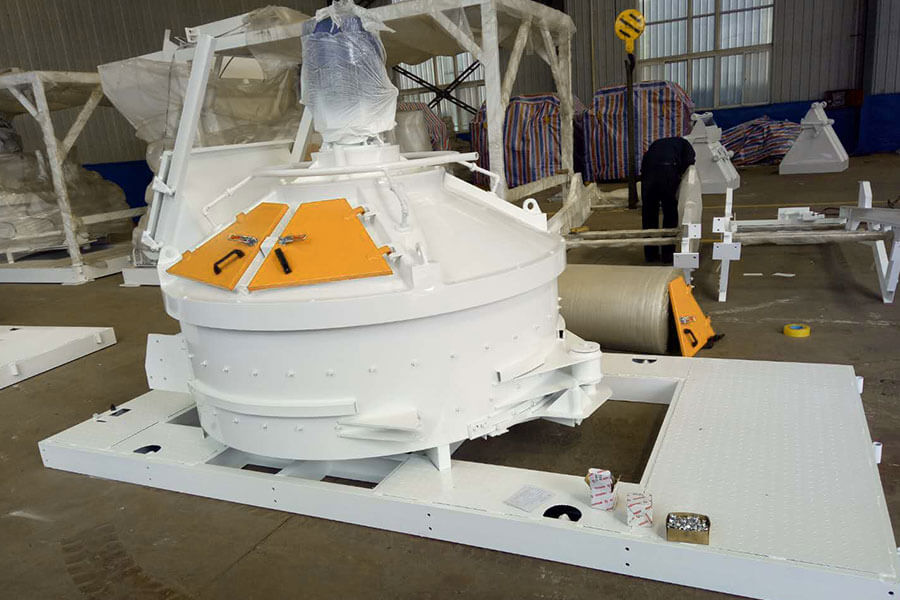

JN-500 Vertical shaft concrete mixer

get quote

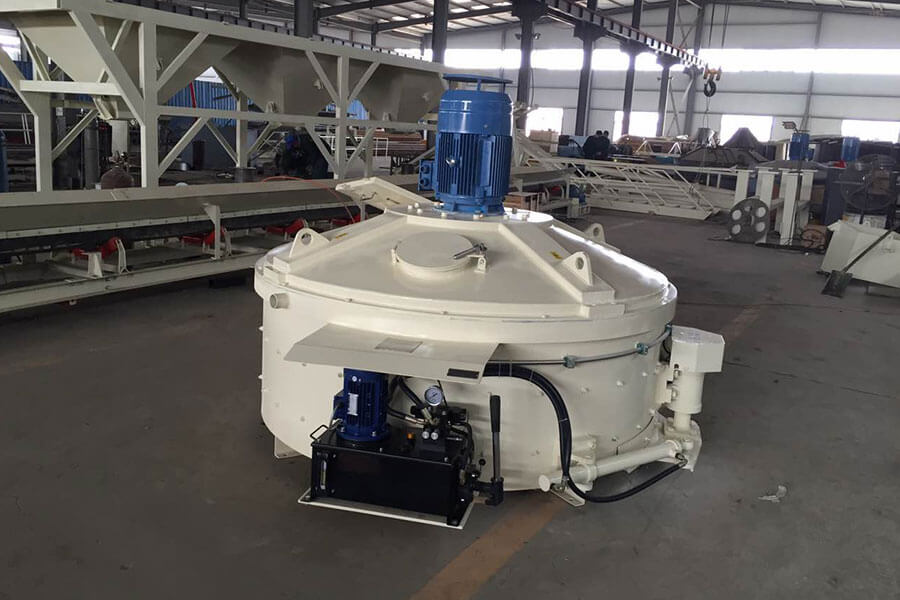

JN-750 Vertical shaft concrete mixer

get quote

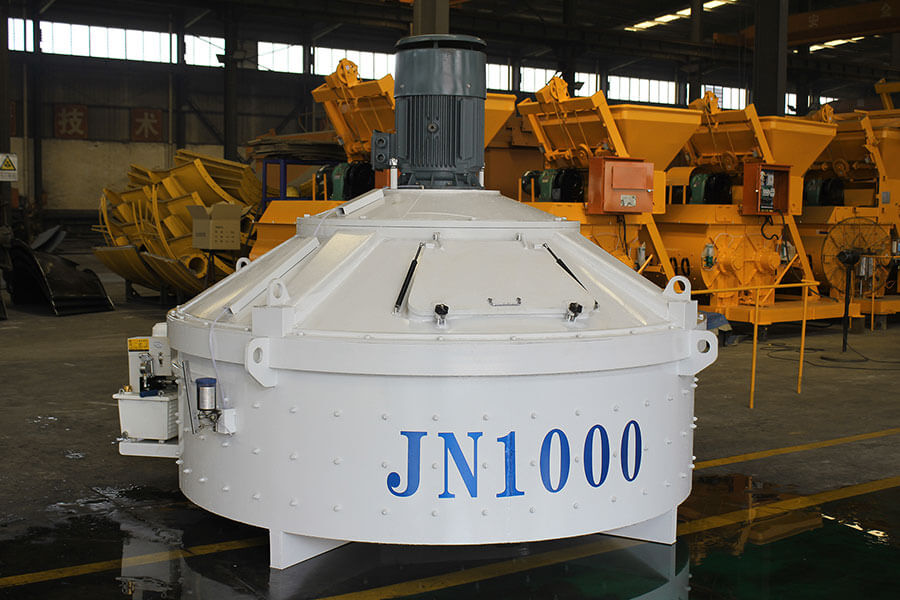

JN-1000 Vertical shaft concrete mixer

get quote

JN-1500 Vertical shaft concrete mixer

get quote

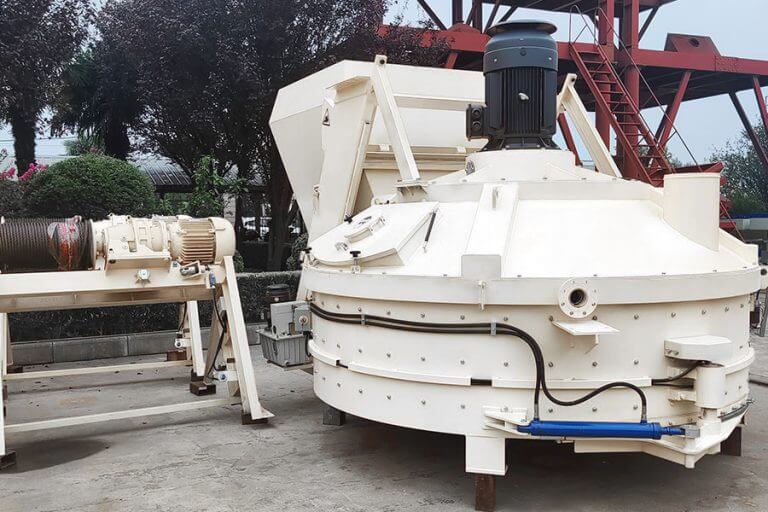

JN-1500A Vertical shaft concrete mixer

get quote

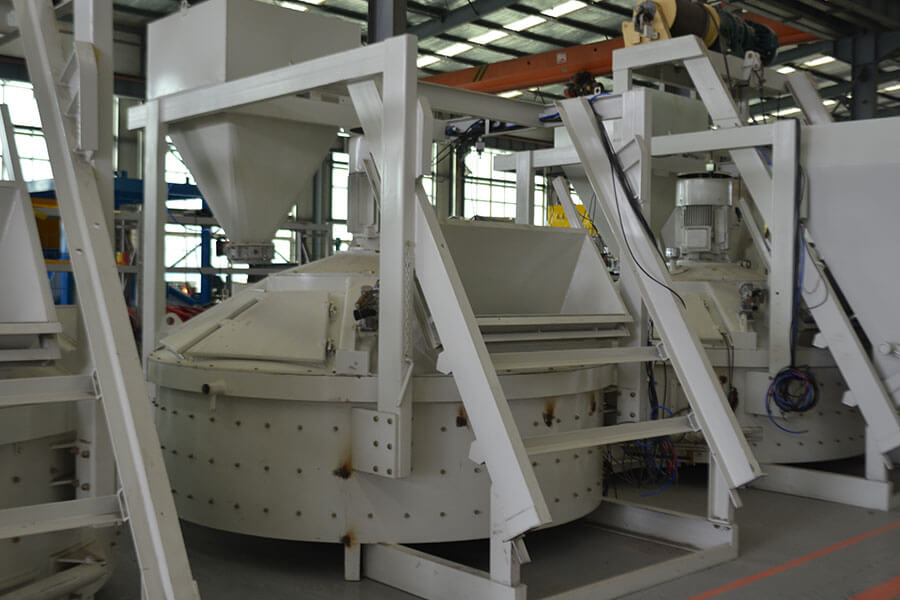

JN-2000 Vertical shaft concrete mixer

get quote

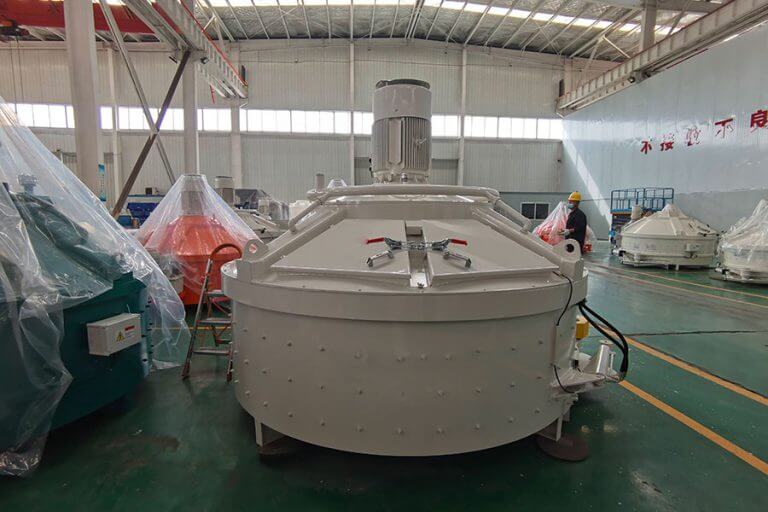

JN-2500 Vertical shaft concrete mixer

get quote

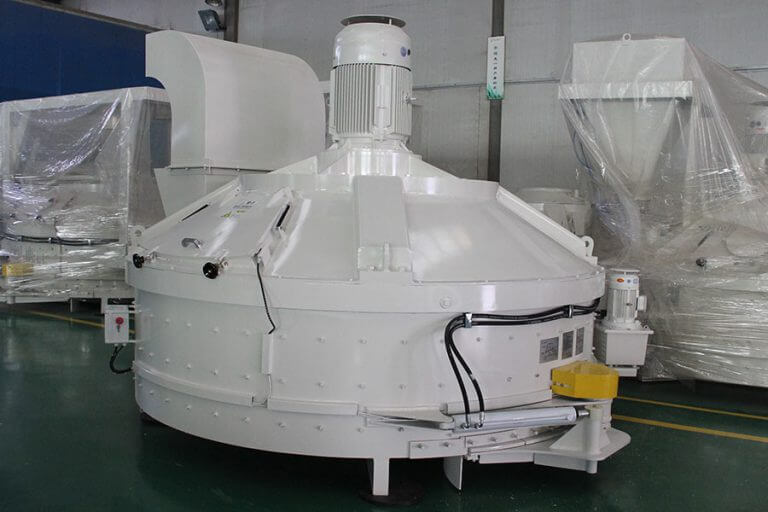

JN-3000 Vertical shaft concrete mixer

get quote

Product Structure

The vertical shaft planetary concrete mixer is mainly composed of motor, reduction mechanism, transmission mechanism, tank body, slewing bearing, machine base and other components.

Working Principle

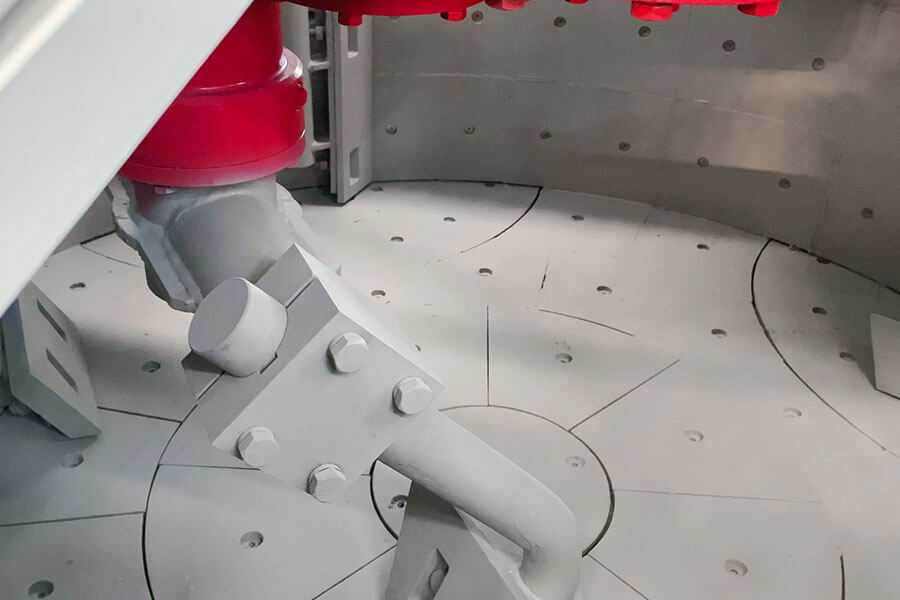

The motor output drives the reduction gear, generating power that drives the stirring arm to rotate and the scraper arm to revolve. This results in a stirring motion that combines both revolution and rotation, resulting in a complex stirring trajectory, strong stirring, high efficiency, and uniform stirring quality.

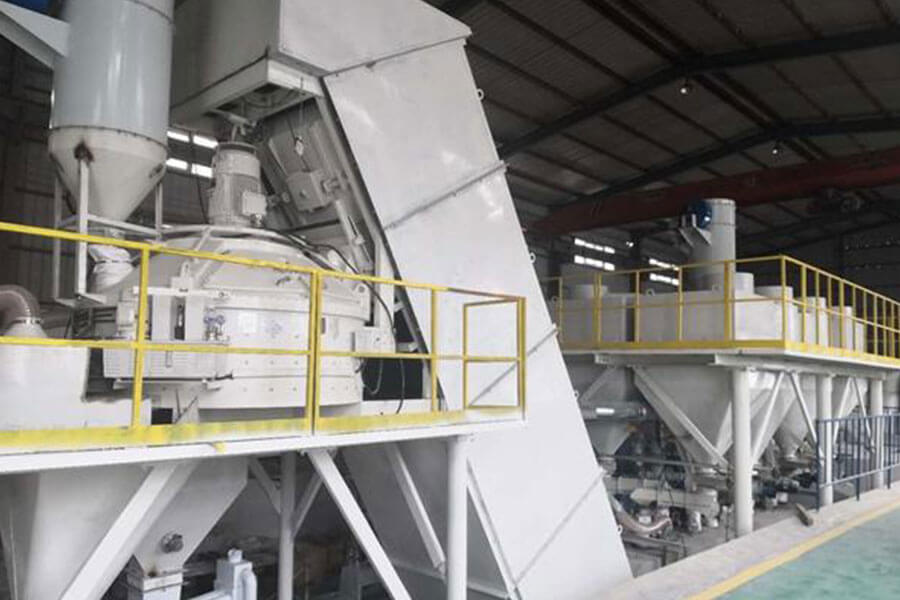

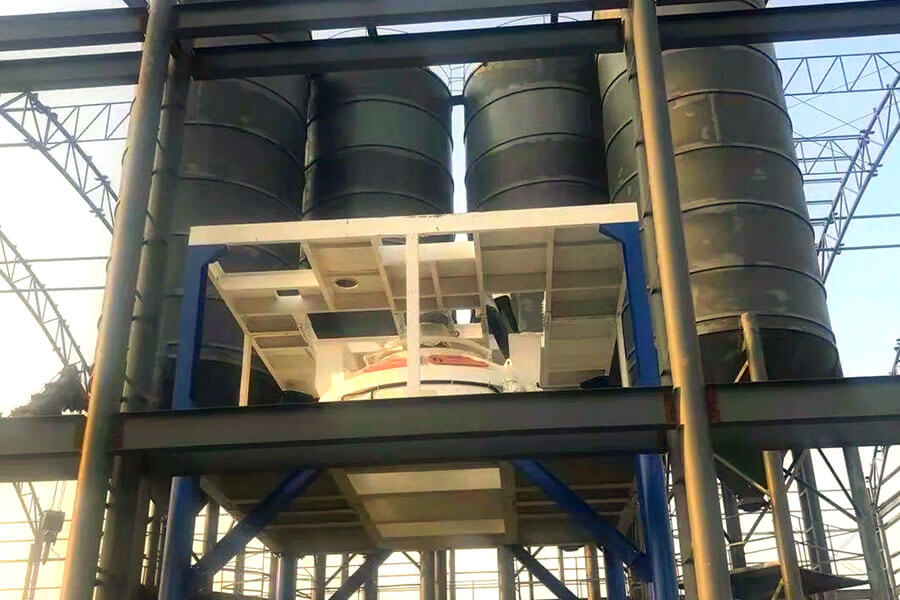

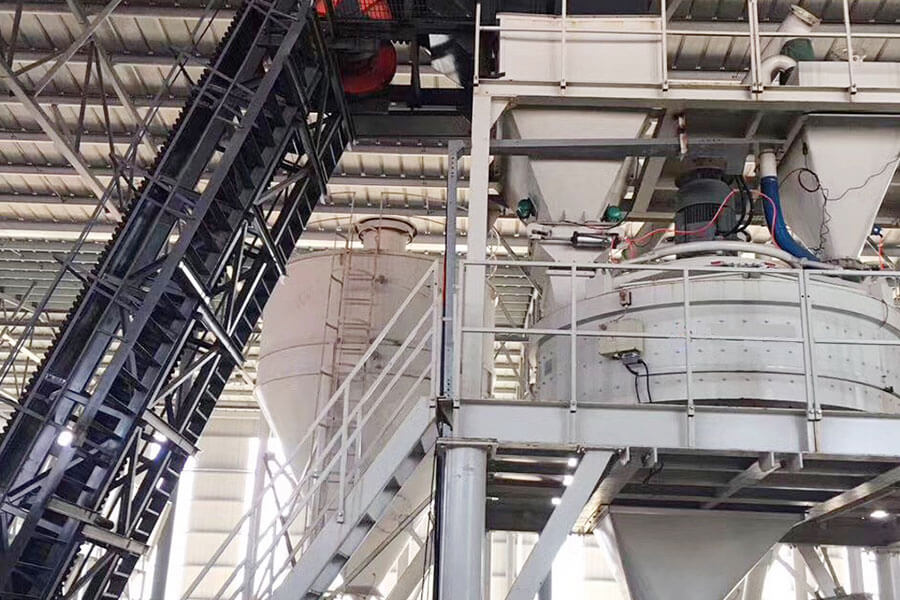

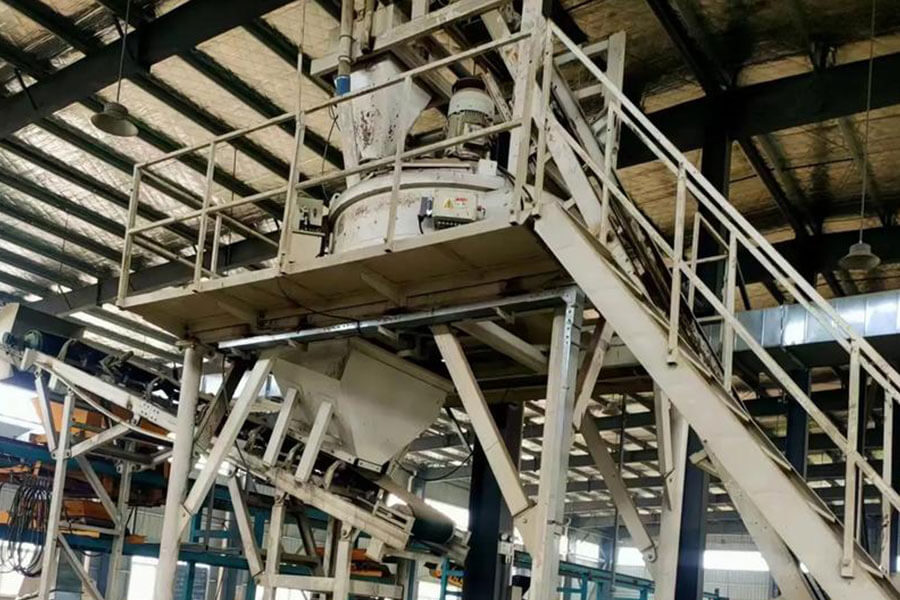

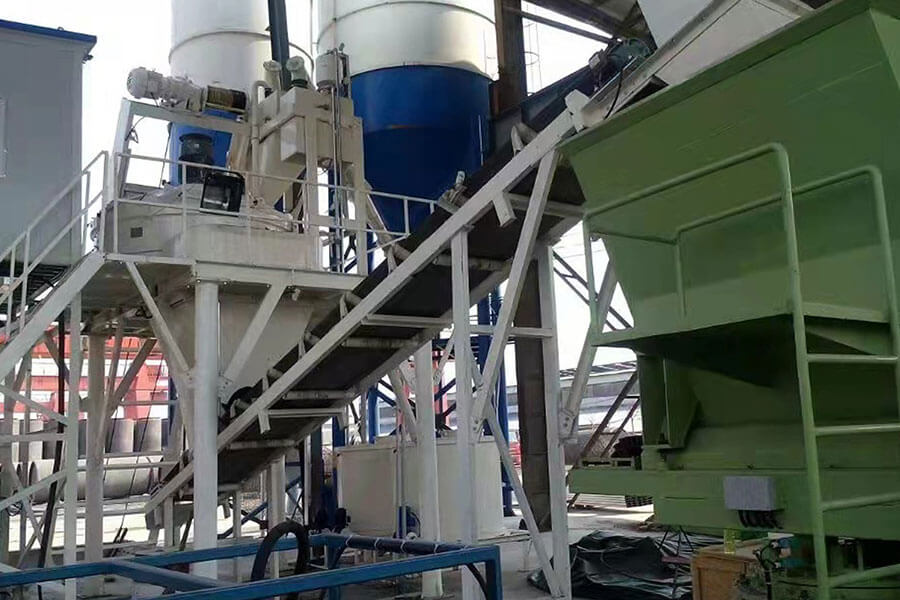

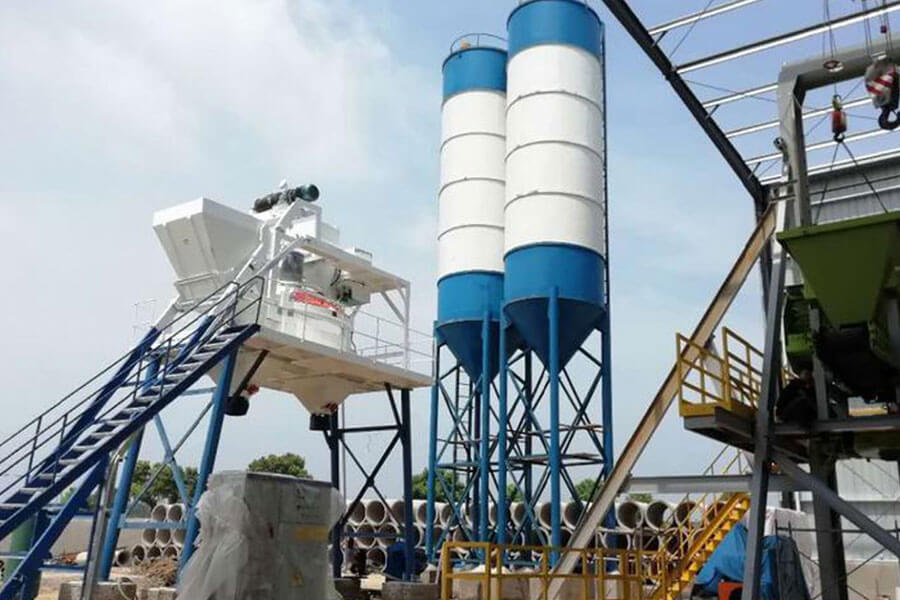

More on-site cases

Vietnamese Vertical concrete mixer

Kazakh Vertical concrete mixer

Ghana Vertical concrete mixer

Product Parameters

Model	JN500	JN750	JN1000	JN1500	JN1500A	JN2000	JN2500	JN3000
Feed capacity (L)	800	1250	1500	2250	2250	3000	3750	4500
Discharge capacity (L)	500	750	1000	1500	1500	2000	2500	3000
Aggregate size (mm)	≤60	≤60	≤60	≤80	≤80	≤80	≤80	≤80
Autorotation speed (r/min)	45.86	44.25	33.9	35.81	35.81	33	30.6	29.5
Revolution speed (r/min)	12.74	12.74	11.3	10.44	10.44	9.4	9.3	8.82
Mixing blade	2×2	2×2	2×2	2×2	2×2	3×2	3×2	3×2
Side scraper blade	2×1	2×1	2×1	2×1	2×1	3×1	3×1	3×1
Motor power (kw)	18.5	30	45	2×30	3×22	3×30	3×37	3×37
Machine weight (kg)	3500	4500	6000	7800	8200	11000	14000	17000

Product Advantages

1.High Mixing Uniformity
Due to its planetary mixing principle, it ensures thorough mixing of concrete ingredients in a short time and achieves a higher degree of uniformity, making it suitable for the production of high-strength concrete or special mixes.

2.High Efficiency
The planetary mixer boasts significantly higher mixing efficiency than traditional mixers, making it particularly suitable for large-scale, high-quality concrete production.

3.Wide Adaptability
It can mix a variety of concrete formulations, offering high adaptability and wide application in precast component plants, concrete batching plants, and other applications.

4.High Wear Resistance
Due to the sophisticated internal design of the mixer, the wear rate of the mixing blades and components is low, extending its service life.

5.Easy Cleaning
Equipped with a high-pressure cleaning device and spiral nozzle, the machine is easy and efficient to clean, reducing material residue.

6.Easy Maintenance
The machine features a simple structure, smooth and quiet operation, and excellent sealing performance, eliminating the risk of material or slurry leakage and making subsequent maintenance easy.

Vertical shaft planetary concrete mixer Manufacturers

Henan Hengyuan is a professional manufacturer of construction concrete machinery and equipment. With a dedicated technical team and sophisticated equipment, the company has been committed to providing the most professional technical services and high-quality equipment to customers worldwide since its establishment. Our concrete mixers are known for their stable and efficient operation and are widely used in various construction projects, significantly improving the quality and efficiency of concrete construction.

Hengyuan Vertical shaft concrete mixer machine price

The following prices are for reference only. Specific prices will vary depending on your desired configuration. We can customize any type of concrete mixer to meet your needs.
If you would like to learn more about our products or have any other questions about our equipment, please feel free to contact us! We will respond promptly and provide the most suitable equipment for your specific needs.

Types	Price range
Twin shaft concrete mixer	$15,000-$50,000
Drum concrete mixer	$8,000-$50,000
Planetary concrete mixer	$20,000-$60,000

Concrete mixing solutions

Vertical planetary concrete mixers are capable of producing higher-quality concrete, playing a crucial role in projects requiring high strength, uniformity, and precision. Therefore, they play an increasingly important role in the modern construction and concrete industries, especially in the production of concrete for large, high-standard projects.
